Holley EFI Terminator X High Impedance 220 LB/HR Fuel Injectors

New Product   |   Posted: 07/06/2021
Posted by: Holley Performance Products

Loading

Holley is pleased to announce the release of awesome new products this week. Holley's popular Terminator X EFI systems can now benefit from new 220 LB/HR fuel injectors.

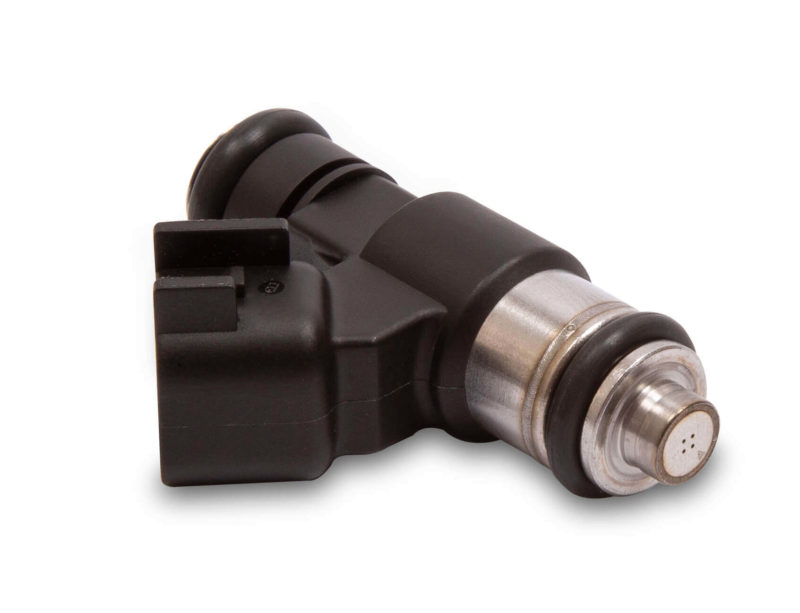

Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.

Features:

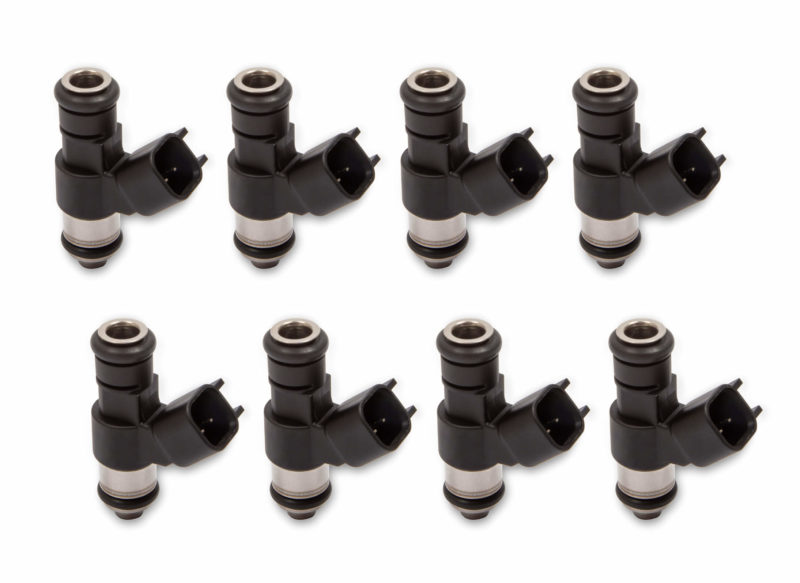

  • PICO/EV6 style performance injectors – sold individually or set of 8
  • High impedance for use with saturated drivers
  • Rated injector flow 220 lb./hr. at 43 PSI of base fuel pressure
  • USCAR injector connector
  • 40mm o-ring to o-ring length
  • Compatible with many OEM LS Intake Manifolds: LSA, LS3, LS7, L76, L92, L98, L99, LS9
  • Easy to install in any Holley EFI Hi-Ram intake, using the 300-230 fuel rail adapter kit
  • Methanol compatible – for use in extreme horsepower applications

SPECS
Body Diameter 0.970
Body Length 2.85″
Body Style EV6
Brand Holley EFI
Connector Series USCAR – EV6
Emission Code 3
Impedance High
O-Ring to O-Ring 2.415″
Product Type Fuel Injector
Rated Injector Flow 220 lb/hr
UPC 090127129951
Part Number 522-221X
