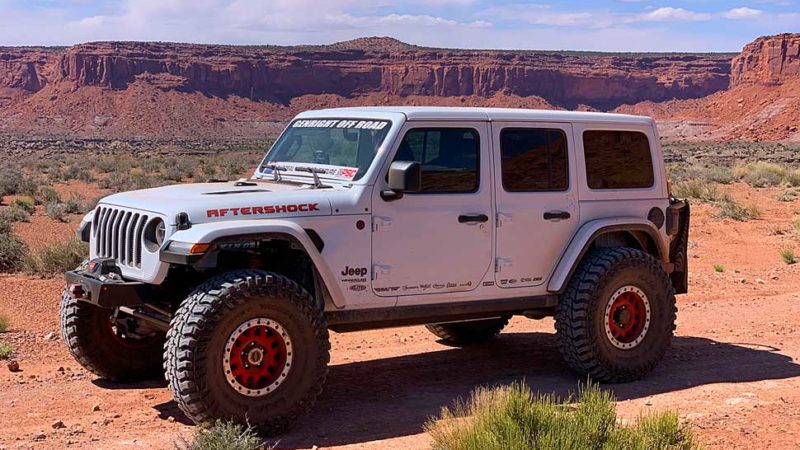

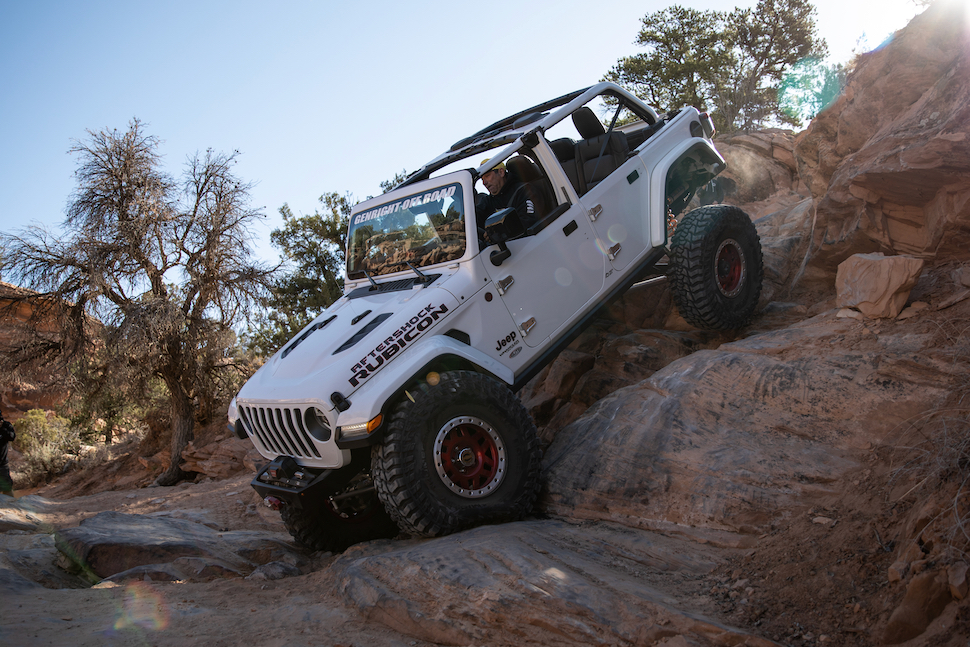

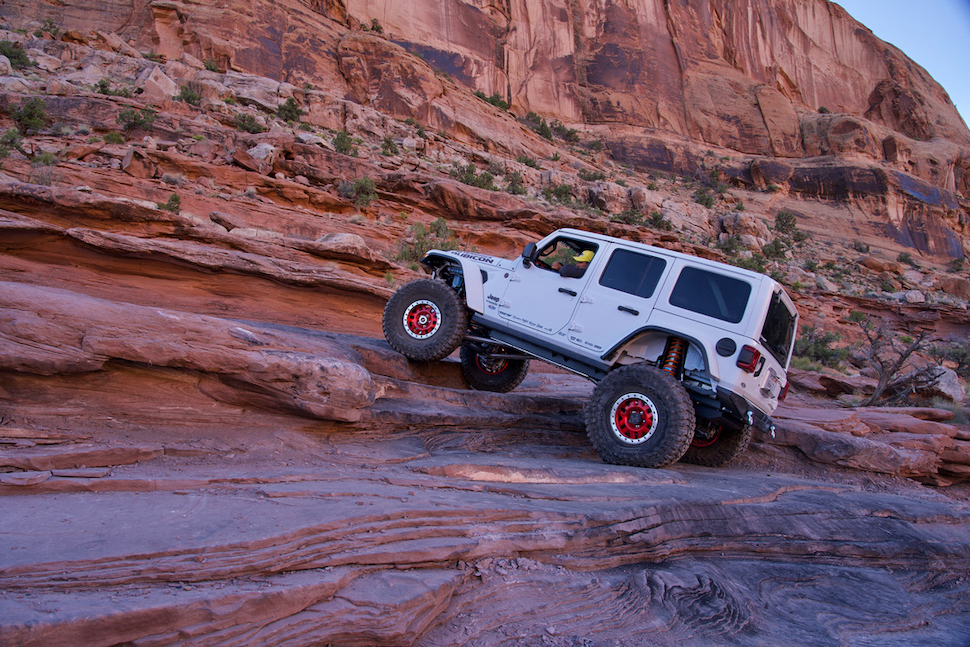

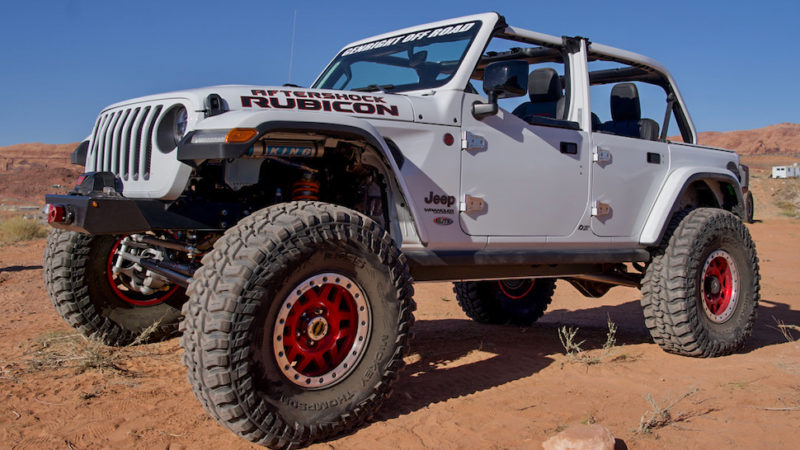

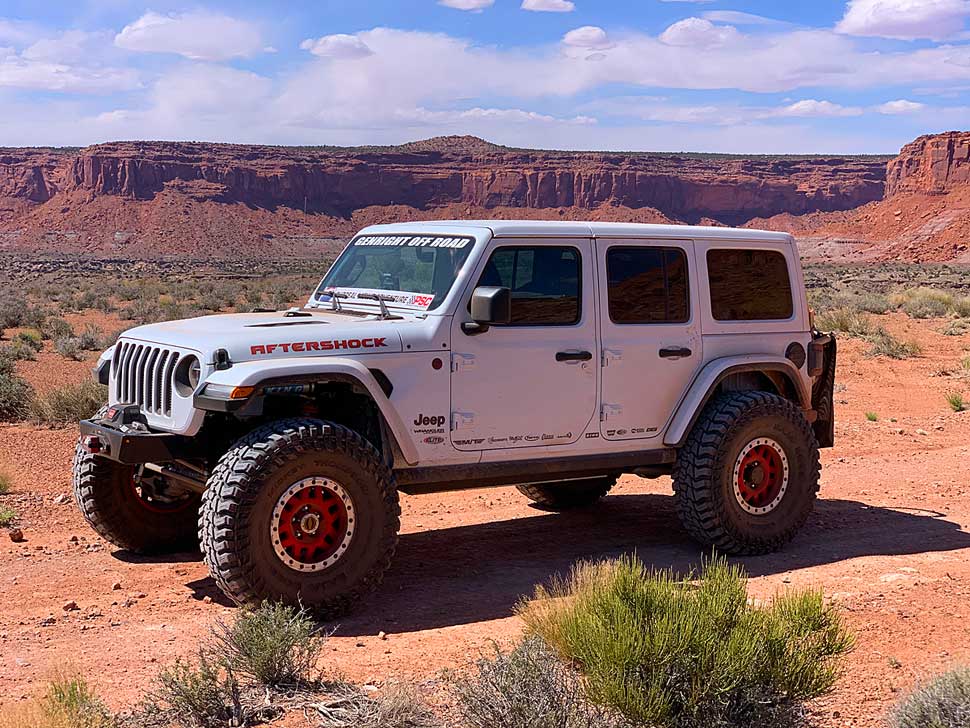

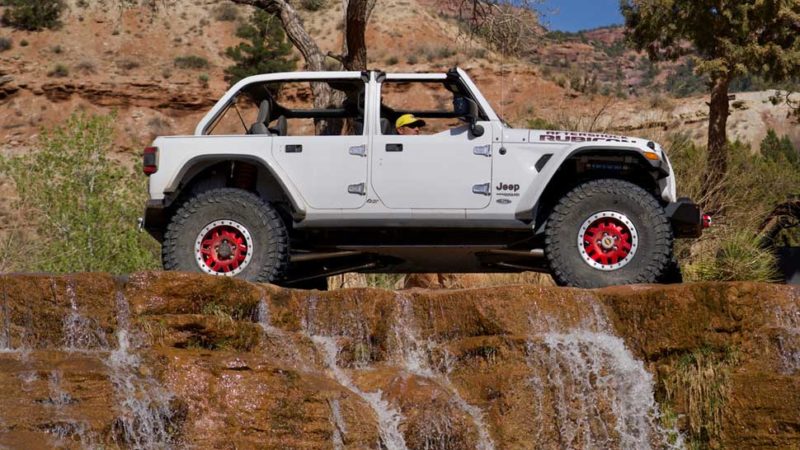

GenRight Aftershock JL

Vehicle Quick Facts

Profile ID: 52385
Year: 2020
Make: Jeep
Model: JL
Markets: Off Road
Vehicle Type: American
Contact: GenRight Offroad

Loading

Advertisement

Tech Sheet

Chassis

  • Brake Calipers:
    • R1 Concepts
  • Brake Rotors:
    • R1 Concepts
  • Bumpers:

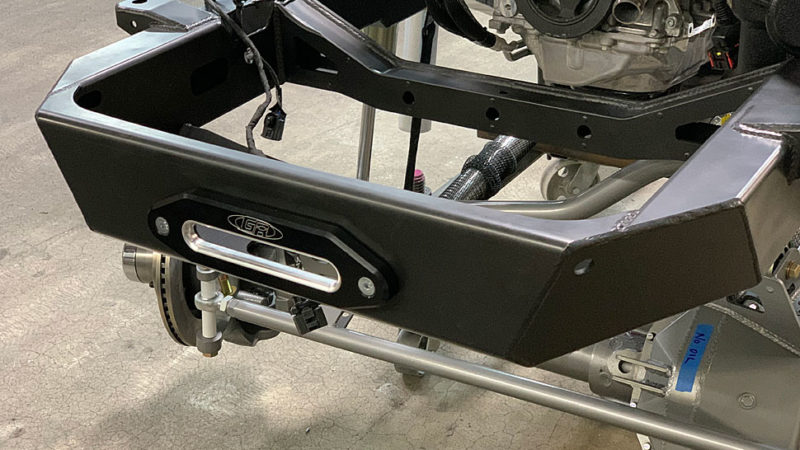

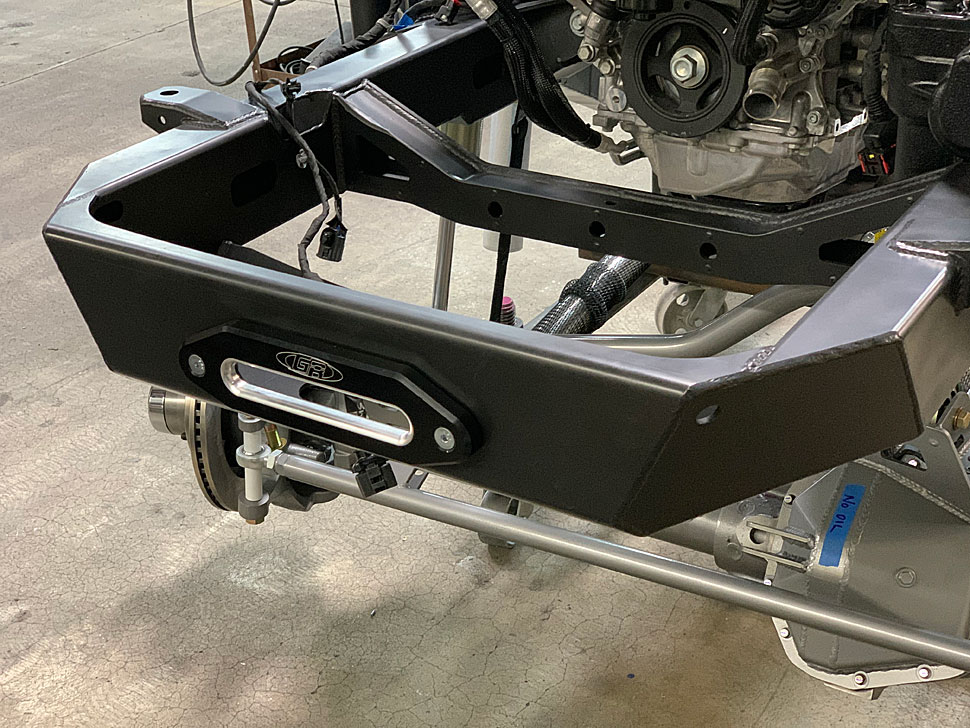

    • GenRight Offroad - Integrated front bumper with low profile winch tray (down low out of air flow to radiator), High clearance rear bumper w/2" receiver hitch
  • Control Arms:
    • Summit Machine - Aluminum control arms (aka: links)

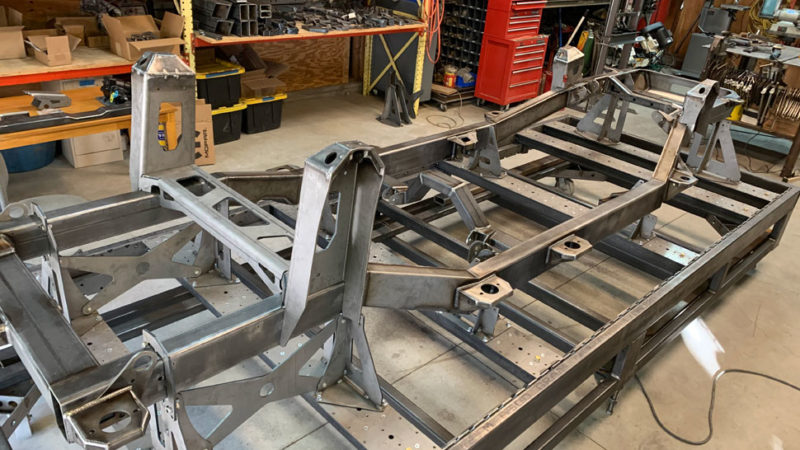

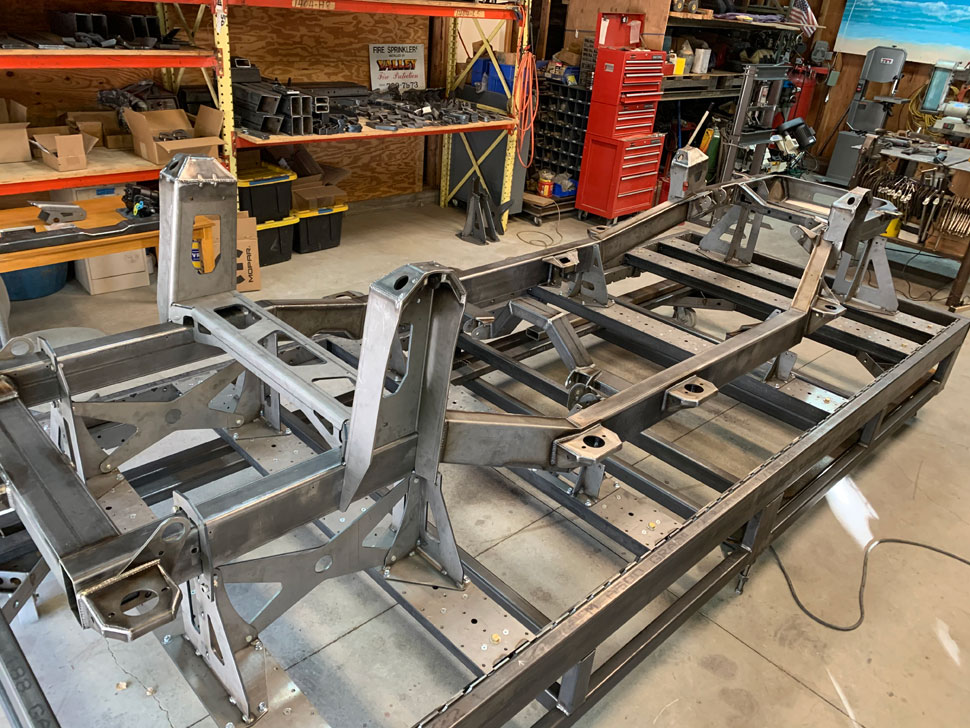

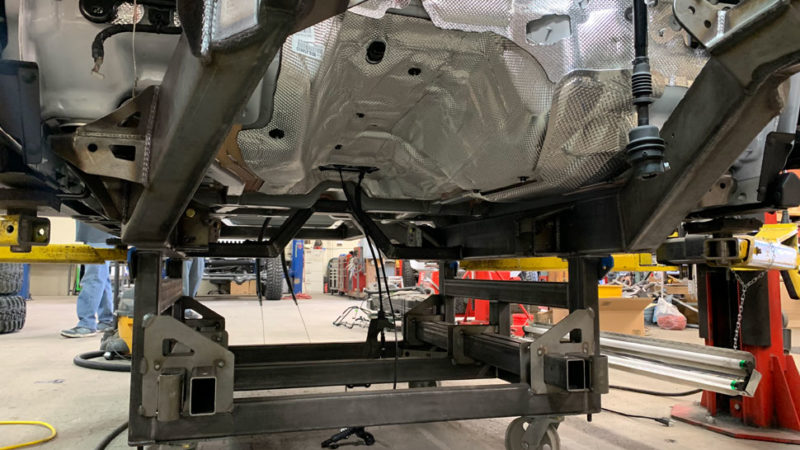

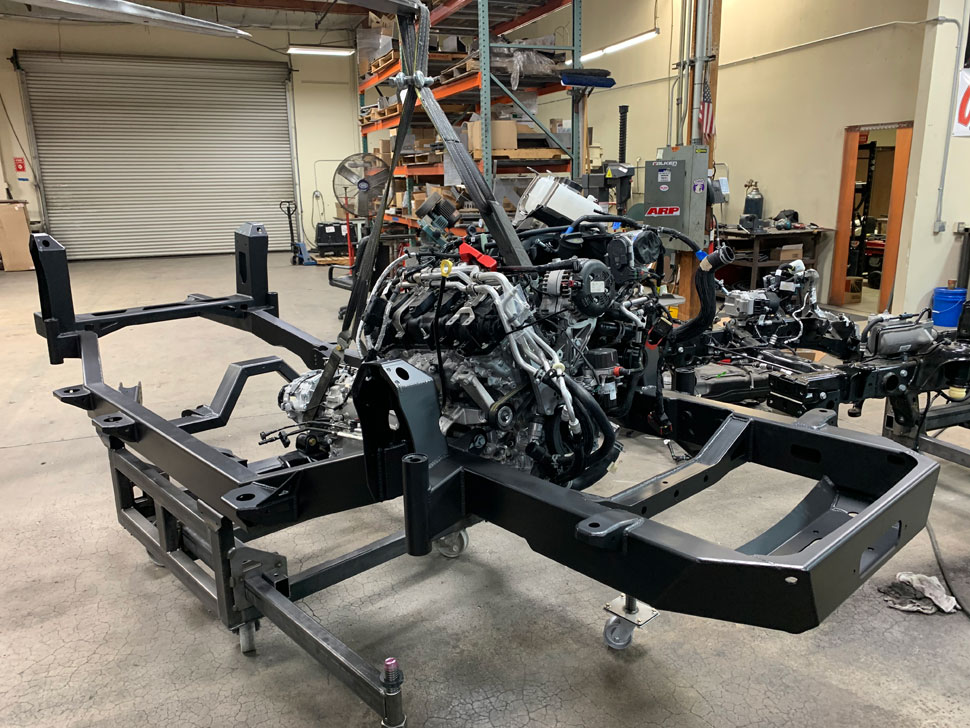

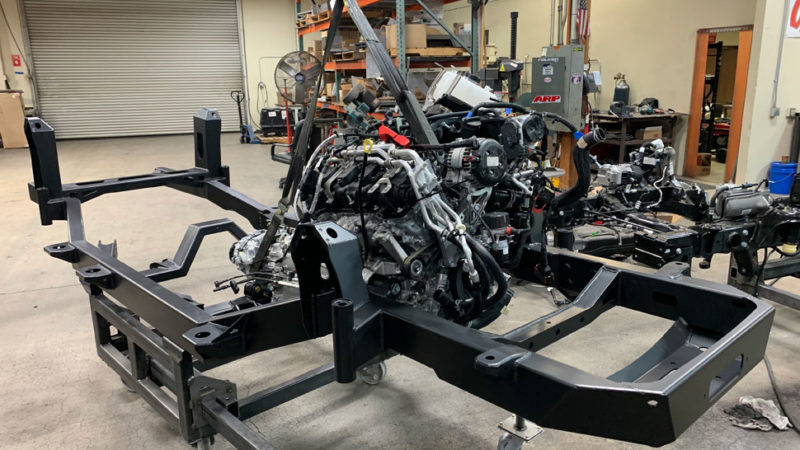

  • Frame:
    • GenRight Offroad
  • Fuel Tank:
    • GenRight Offroad - 26 gallon rear mounted gas tank
  • :
    • AGM Products - Shock / spring sliders for King 3.0" shocks
  • Rod Ends:
  • Shocks:
    • King Shock Technology - 3.0" x 14" travel IBP Coil Over Shocks w/remote reservoir & compression adjuster, Front & Rear, 2" hydraulic bumps stops, Front & Rear
  • Steering:
    • PSC Motorsports - Mechanical steering conversion with Big steering box and ram assist
  • Suspension Kit:

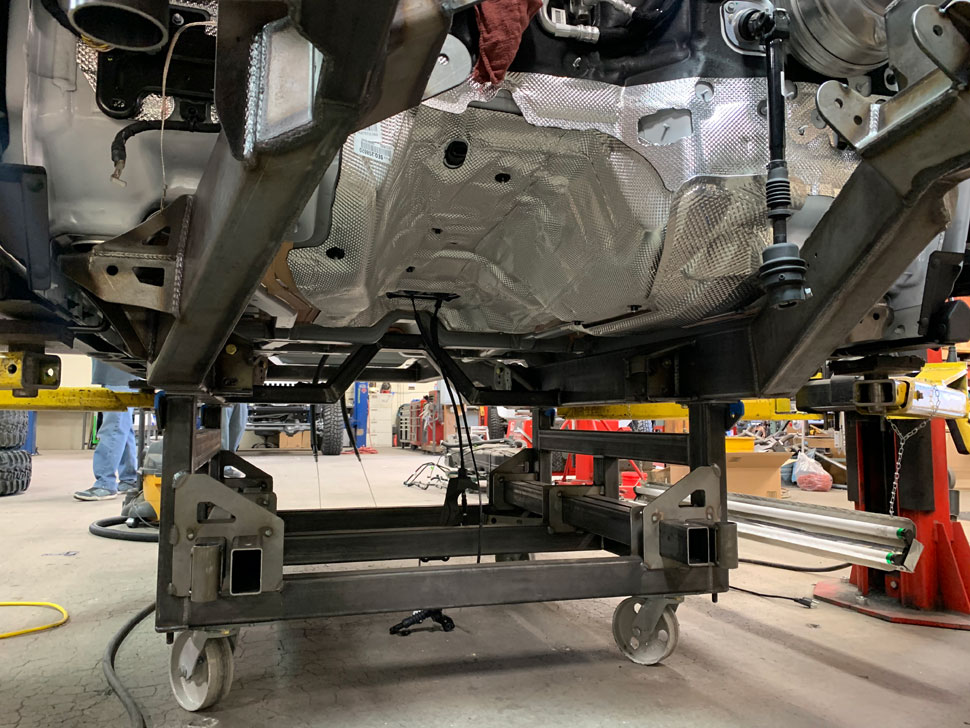

    • GenRight Offroad - EXS Suspension System (includes new 3/16" thick frame), Bind free 3 Link front and 4 Link double triangulated rear
  • Sway Bars:
    • GenRight Offroad - Rear Sway Bar for EXS frame
  • Winch:
    • Warn Industries, Inc. - Zeon 10-S winch

Drivetrain

  • Axle Housing:

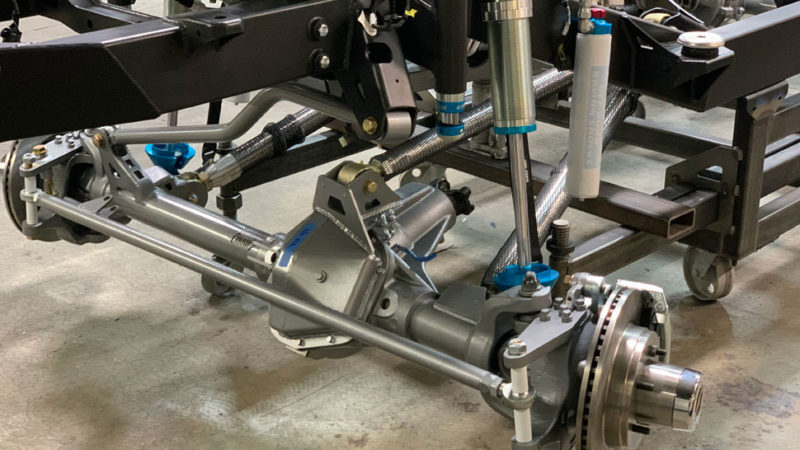

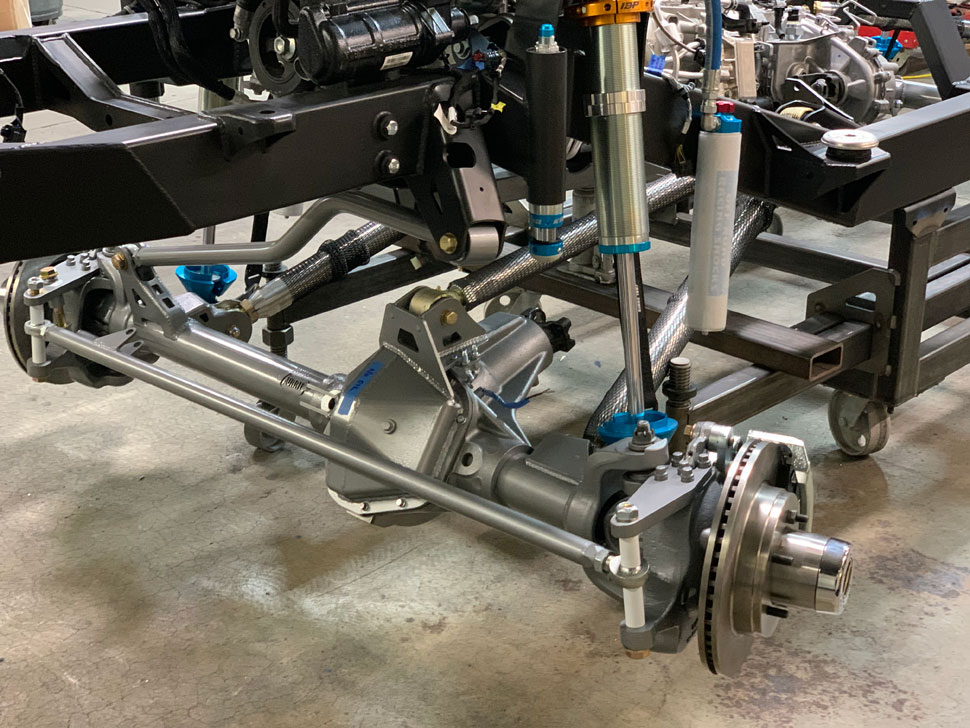

    • Currie Enterprises - High Pinion VXR Dana 60 Front axle with Hi steer knuckles, Full Float, High Pinion Extreme Dana 70 Rear axle
  • Axle/CV shaft:
    • Currie Enterprises - 35 spline front, 40 spline rear
  • Driveshaft:
    • JE Reel Driveline
  • Locker:
    • Auburn Gear - Select-a-Loc electric lockers
  • Locking Hubs:
    • Warn Industries, Inc.
  • Tires:
    • MICKEY THOMPSON TIRES & WHEELS - 40 x 13.50" x 17 Baja Boss M/T tires
  • Wheels:
    • KMC Wheels - 17" x 8.5" KMC Forged Machette bead lock wheels, with 5 on 5.5 bolt pattern

Engine

  • Battery:
    • Odyssey Battery - Gel 12V Battery
  • Exhaust Mufflers:
    • MagnaFlow

Exterior

  • Body Armor:
    • GenRight Offroad - Aluminum Flat belly transfer case skid plate and engine skid plate, Hi Clearance Rock Slider / Guards for EXS frame
  • Cargo Rack:
    • GenRight Offroad - Rear Cargo Rack & Mounting Brackets (ACC-1000)
  • Doors:
    • GenRight Offroad - Half Doors, Front & Rear (LJHD-PKG)
  • Offroad Lighting:
    • Vision X Lighting - LED Rock Lights

Interior

  • Fridge / Freezer:
    • ARB (USA) - 37 quart fridge

Equipment & Supplies

  • Compressors/Air tanks:
    • Powertank
  • Recovery Equipment:
    • Factor 55 - Flat link, red and 2" Tow Strap
