Vehicle Story

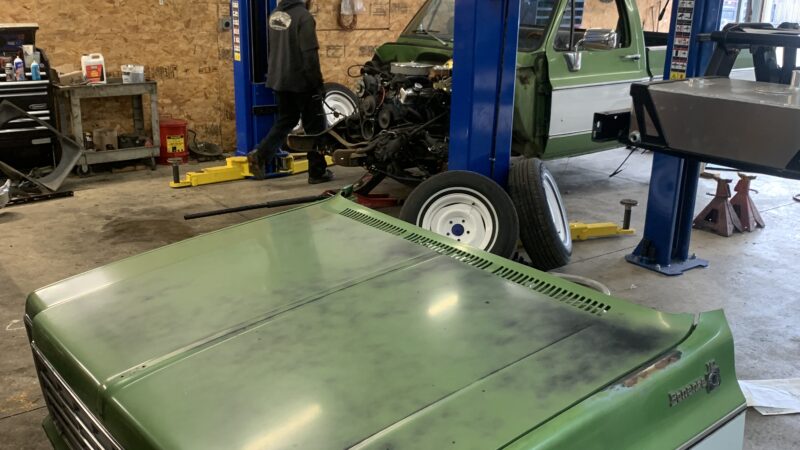

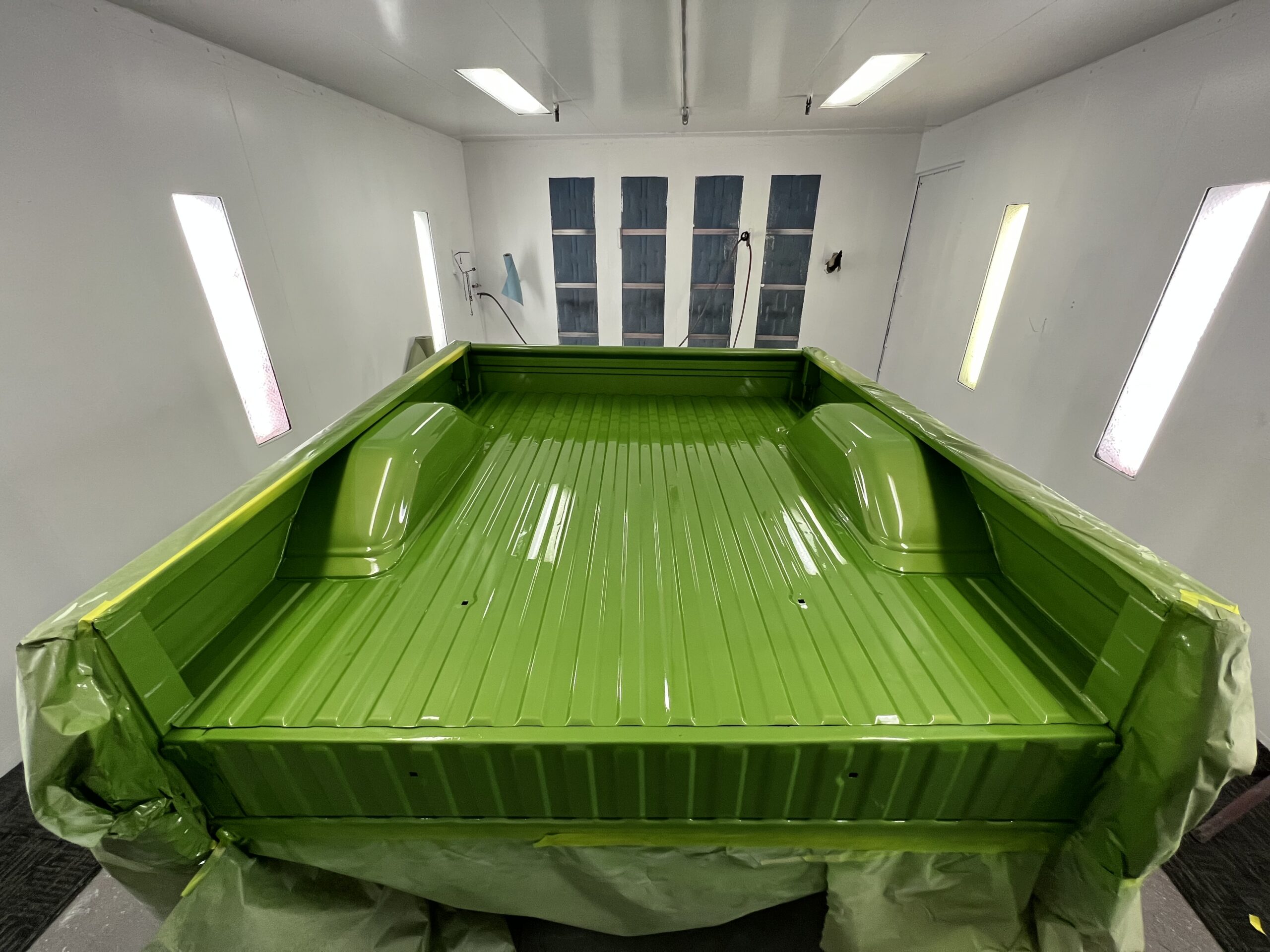

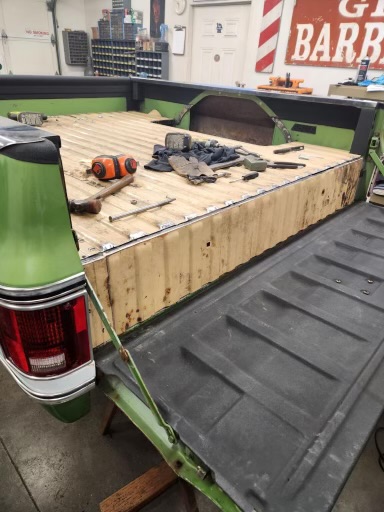

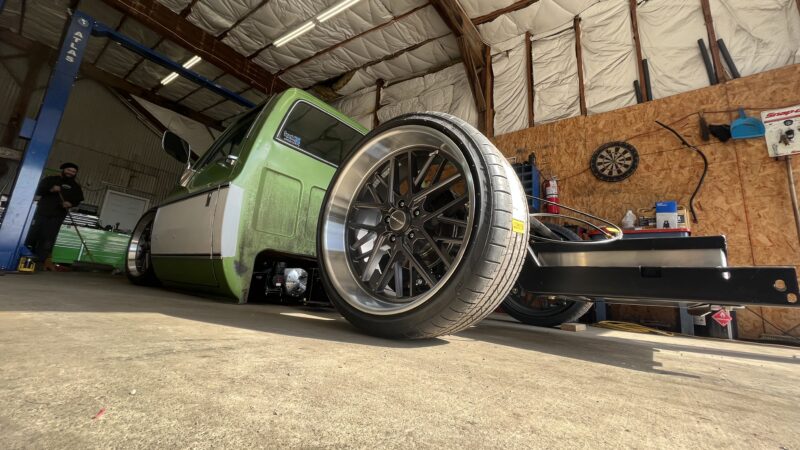

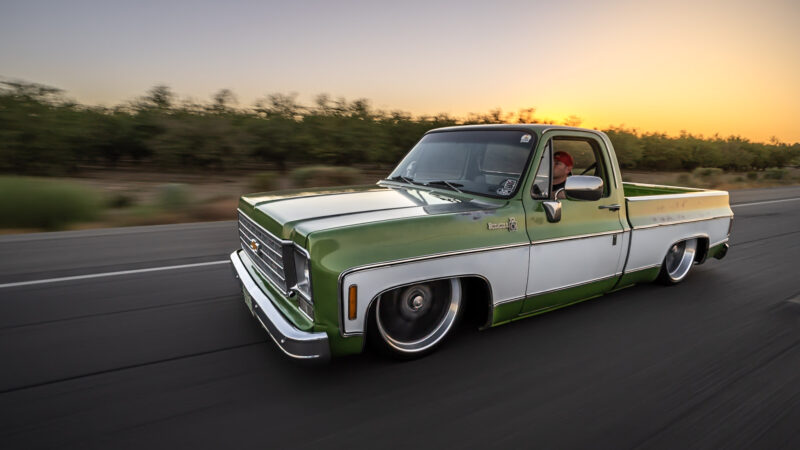

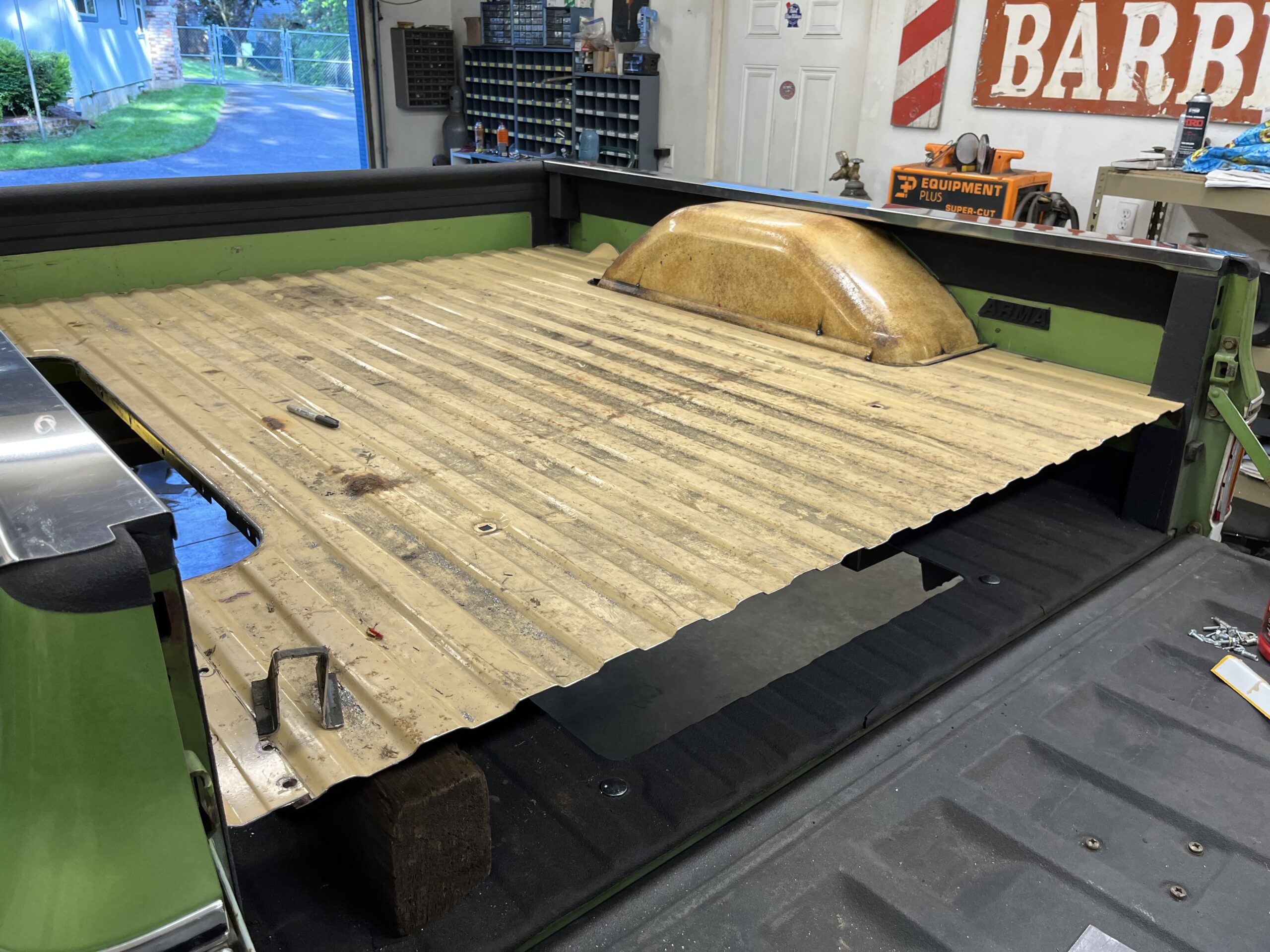

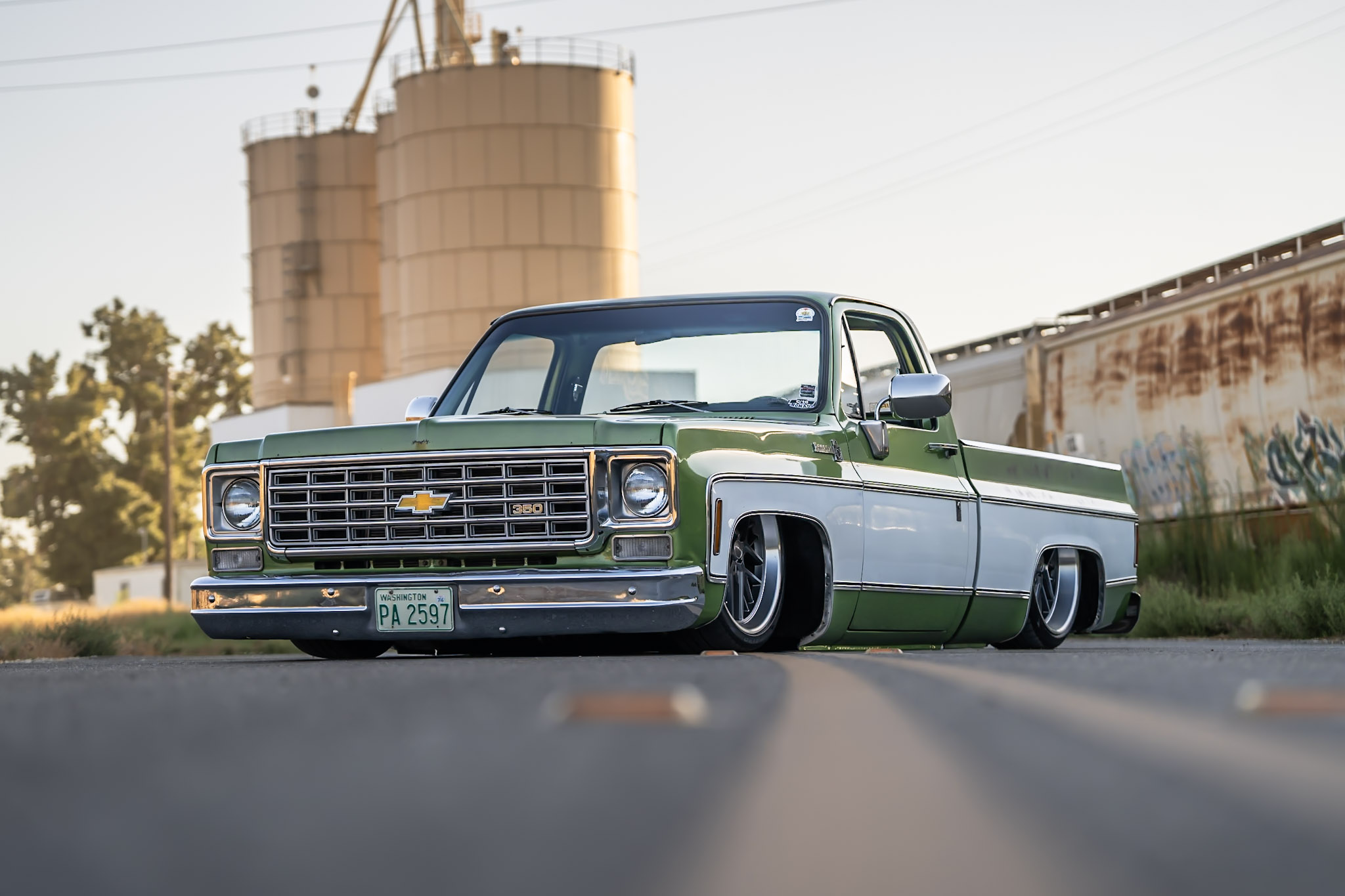

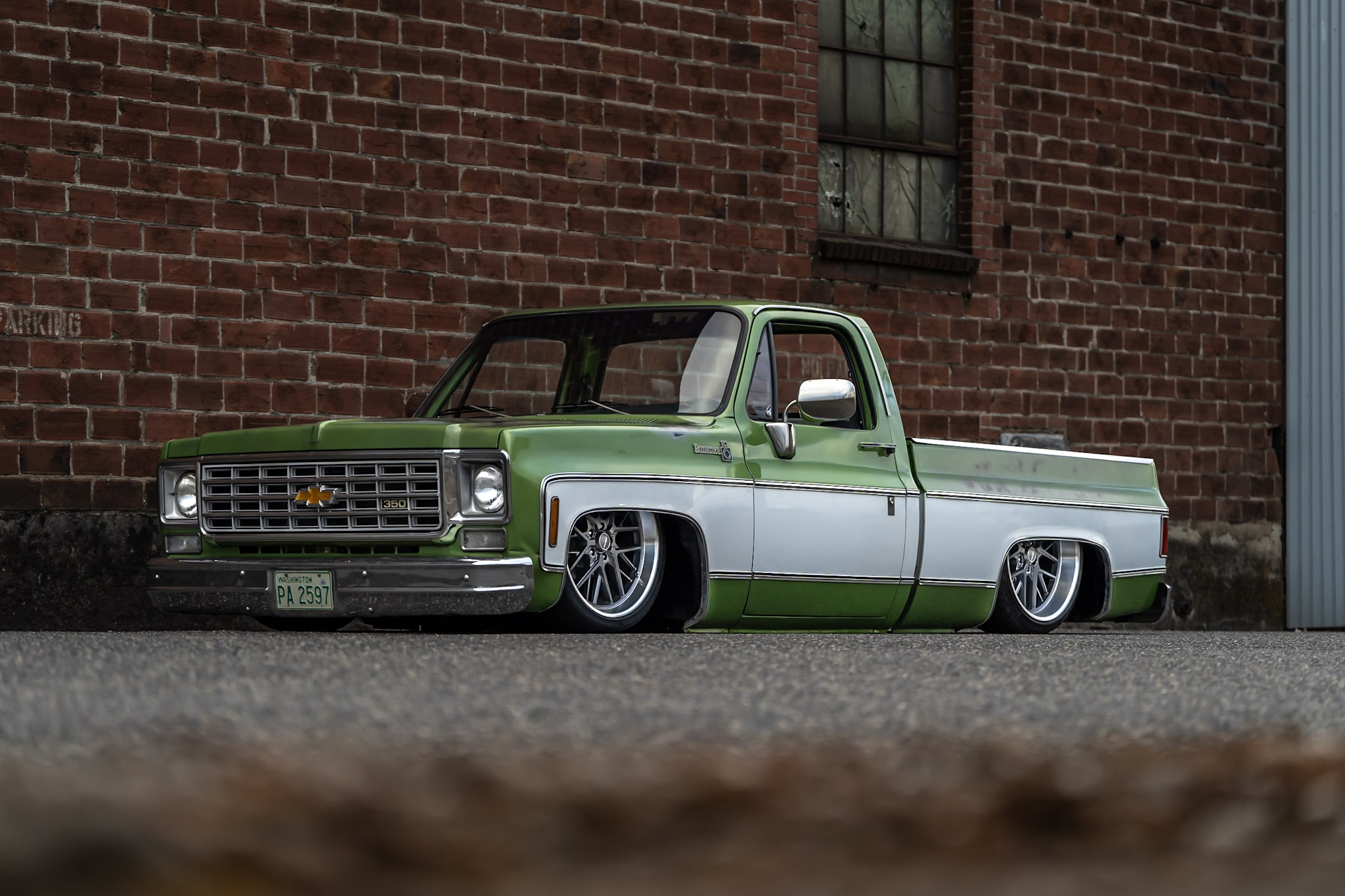

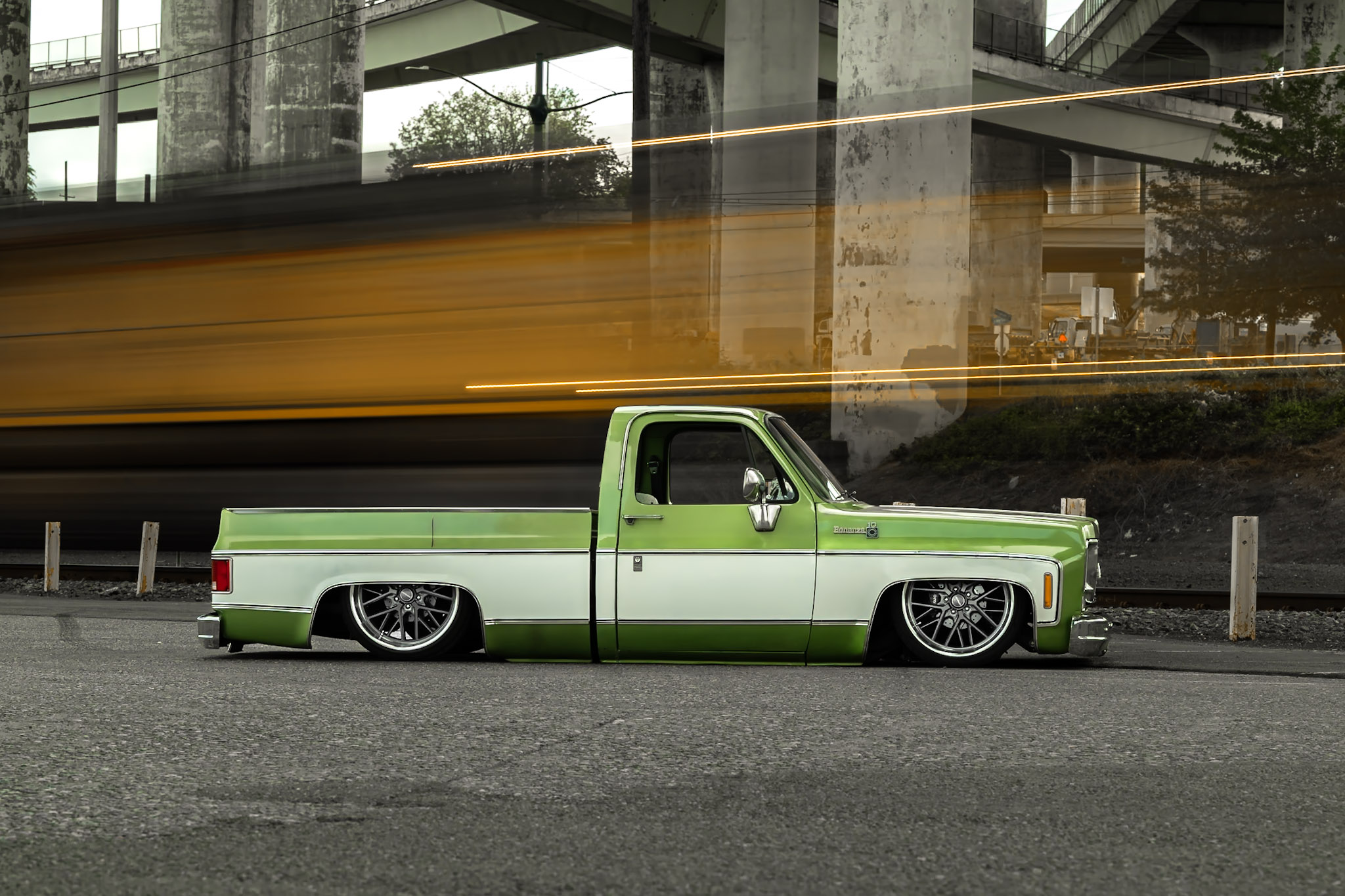

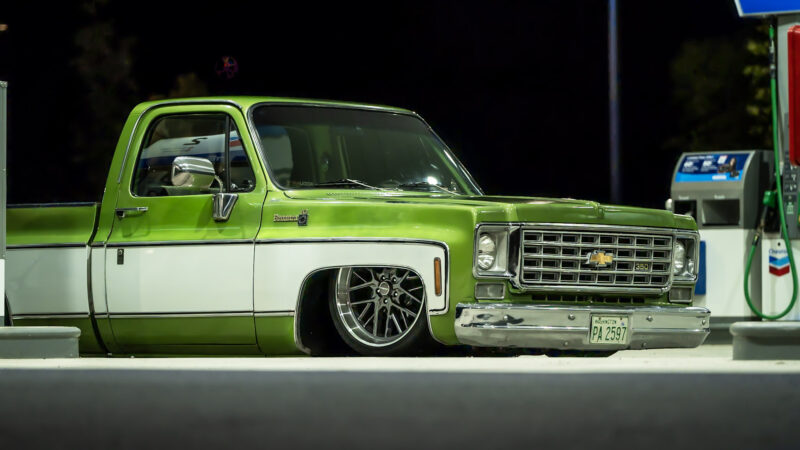

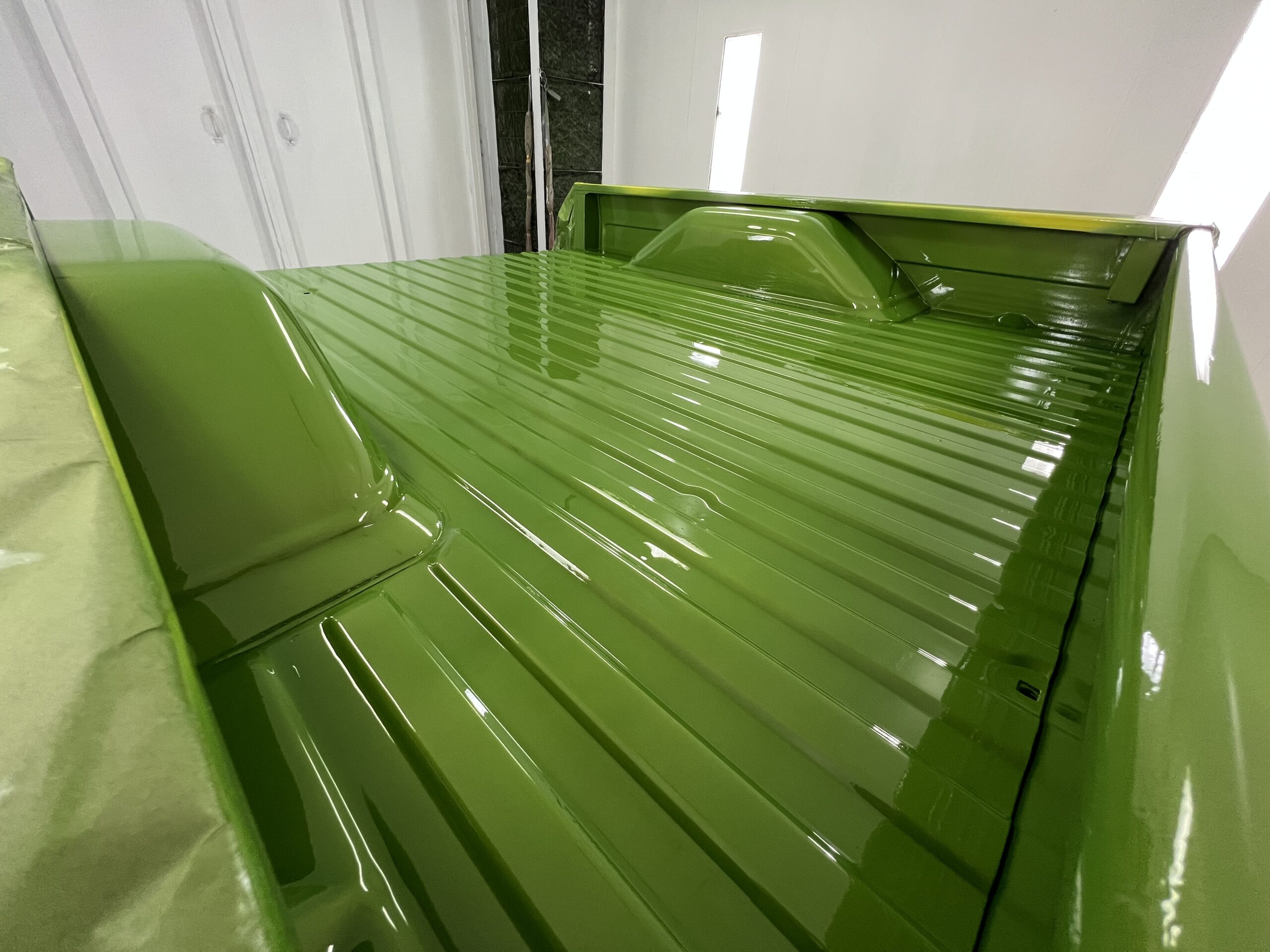

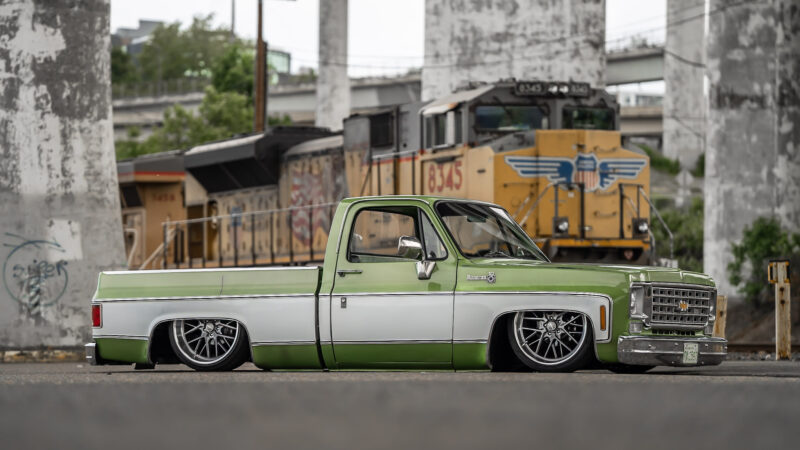

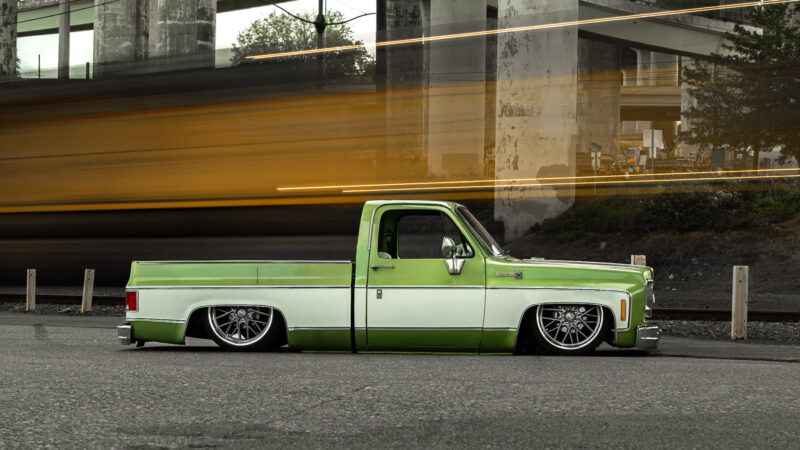

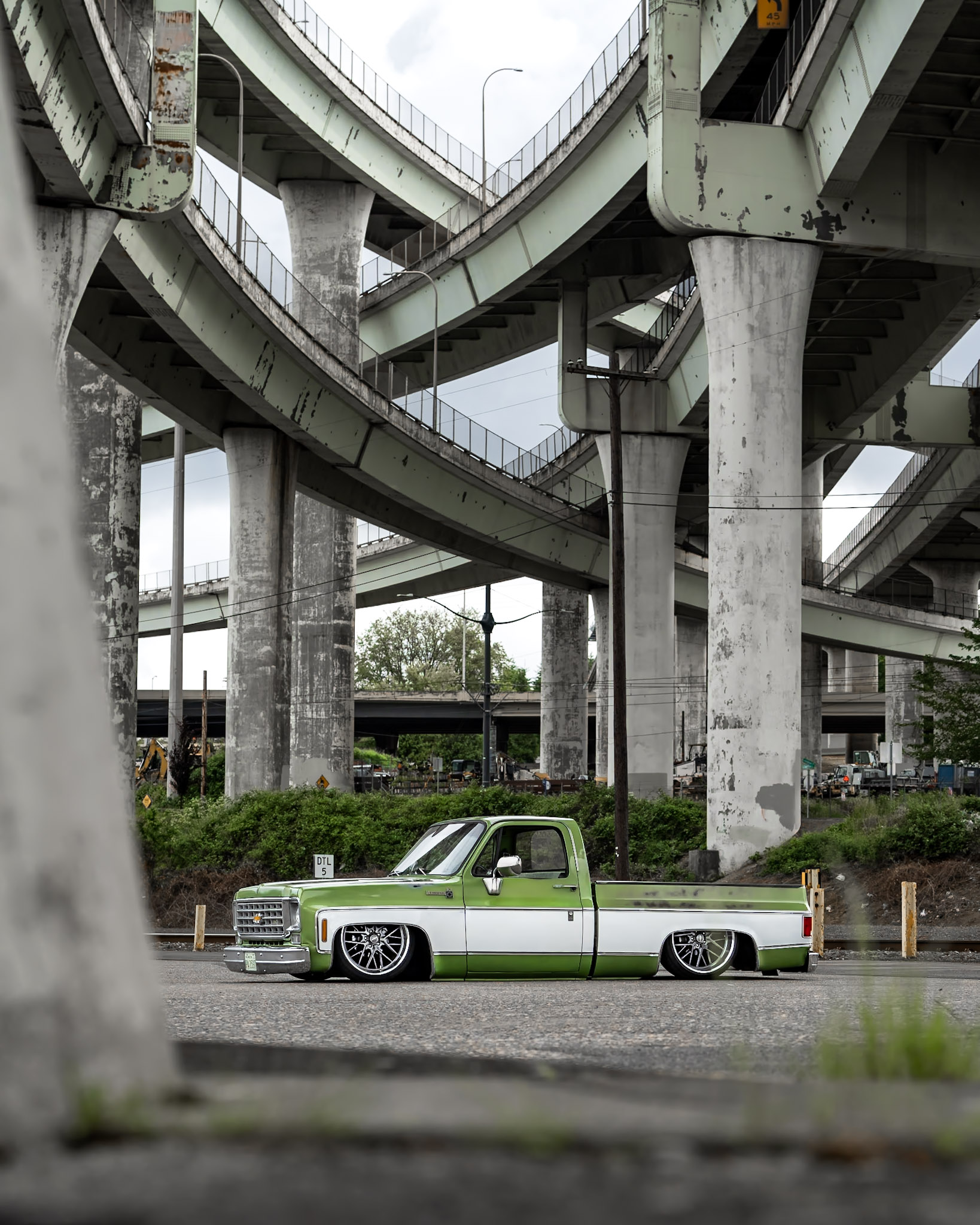

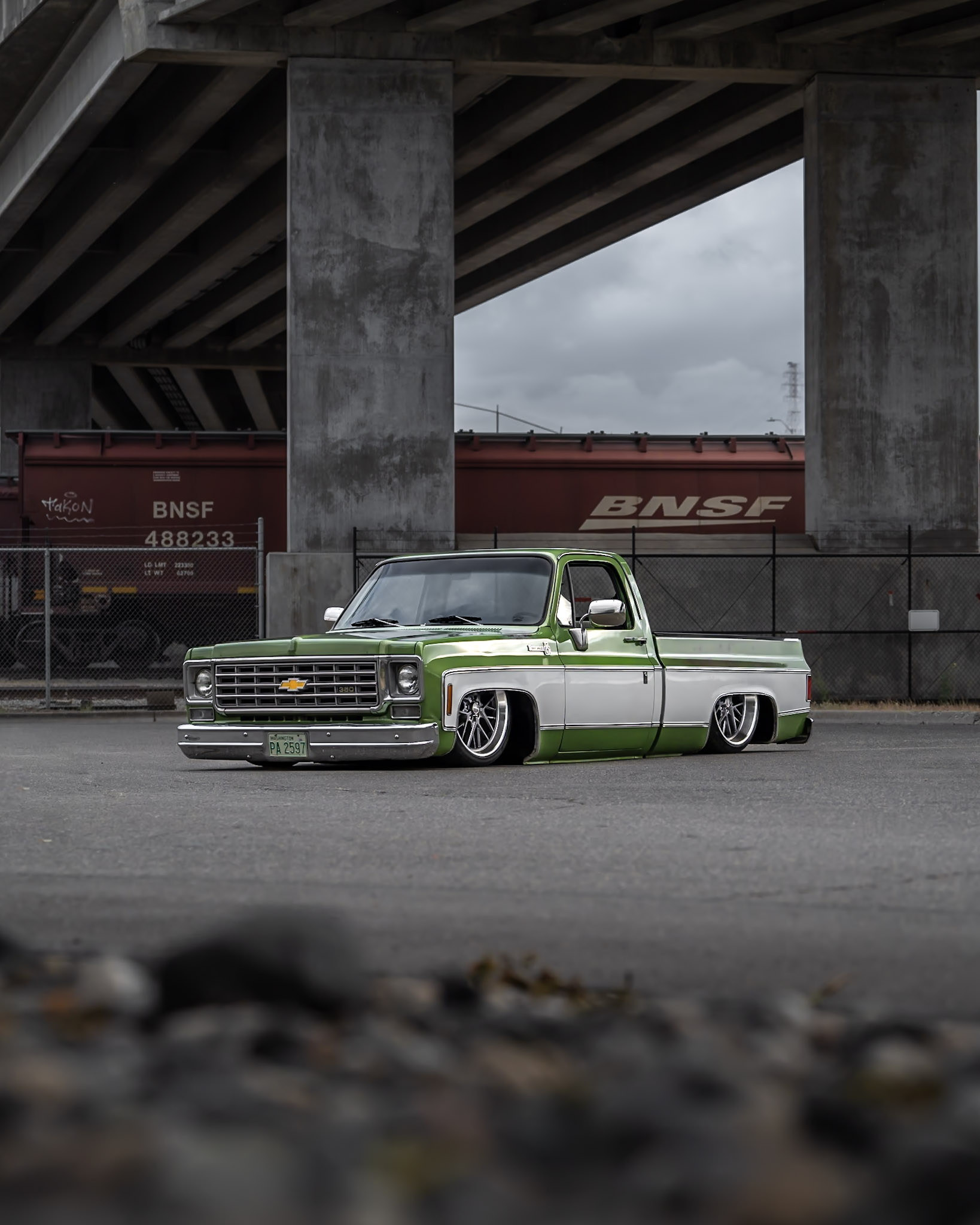

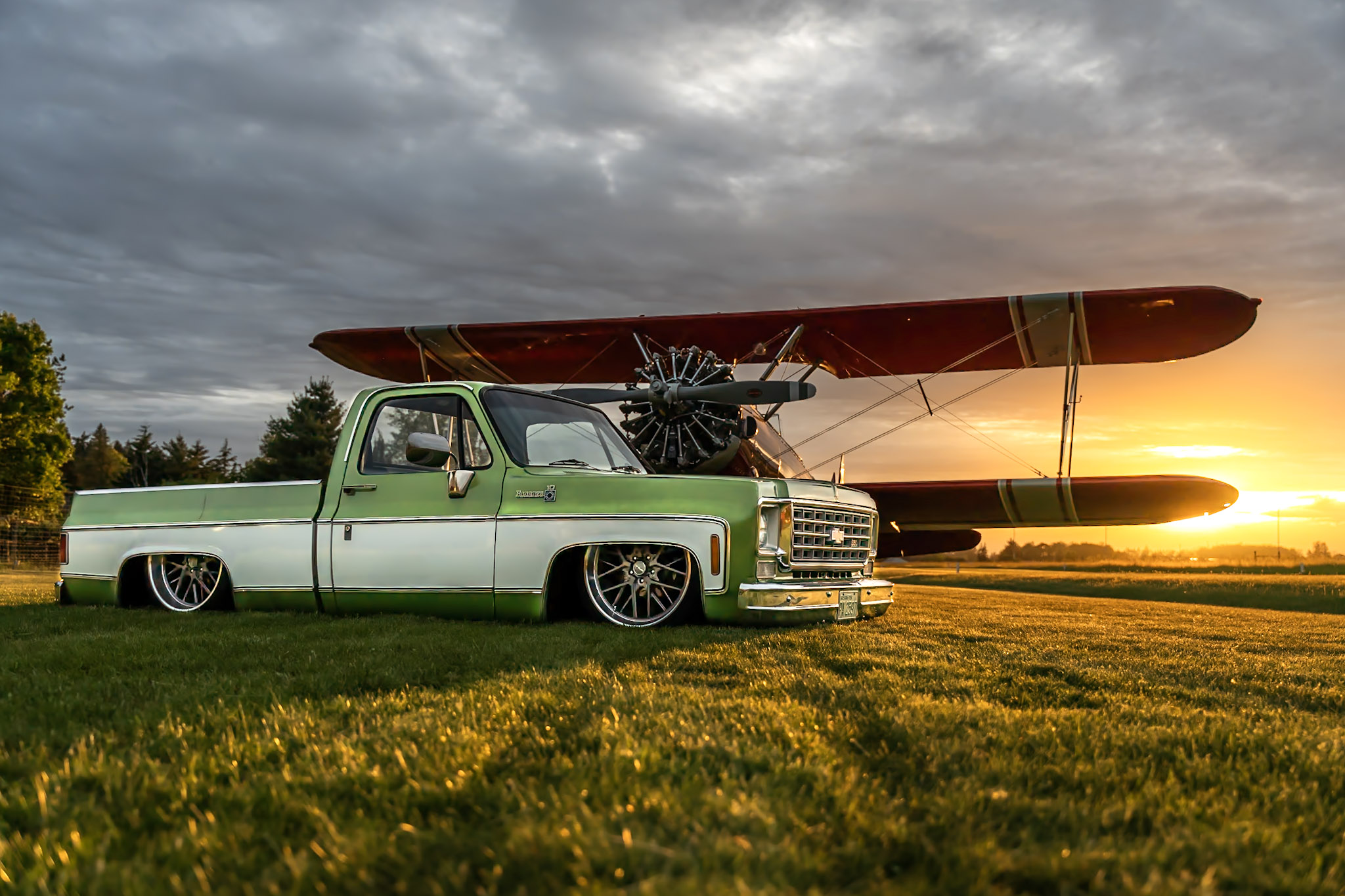

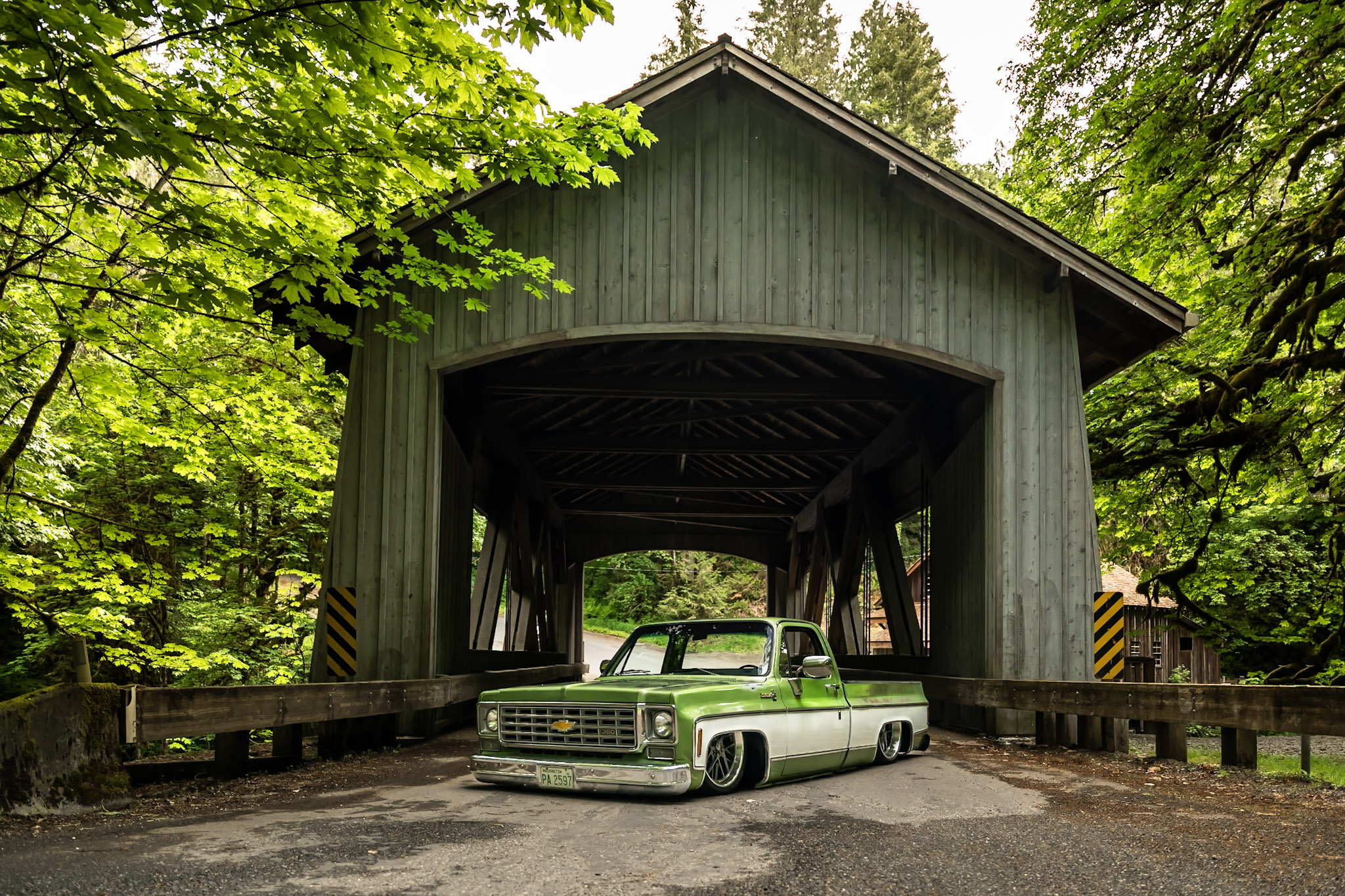

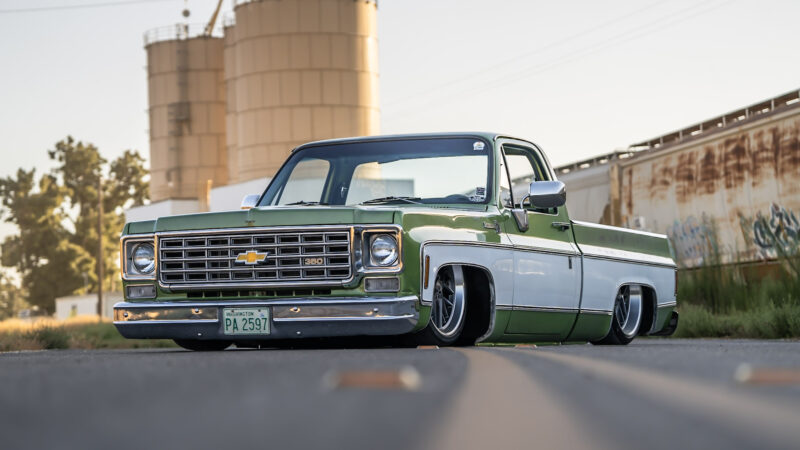

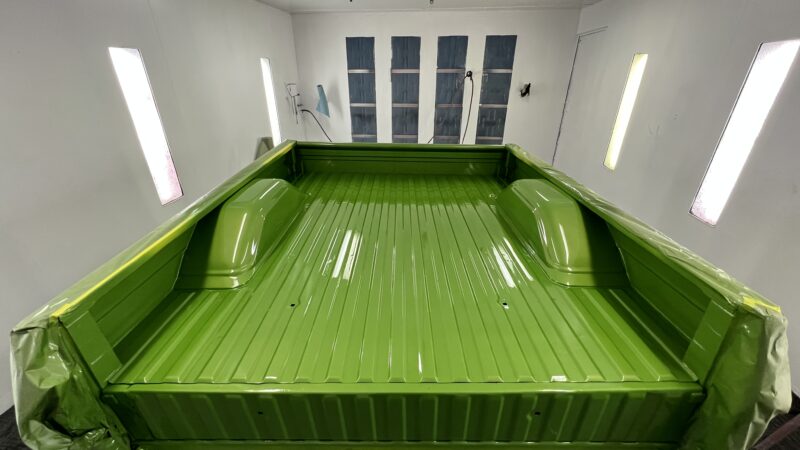

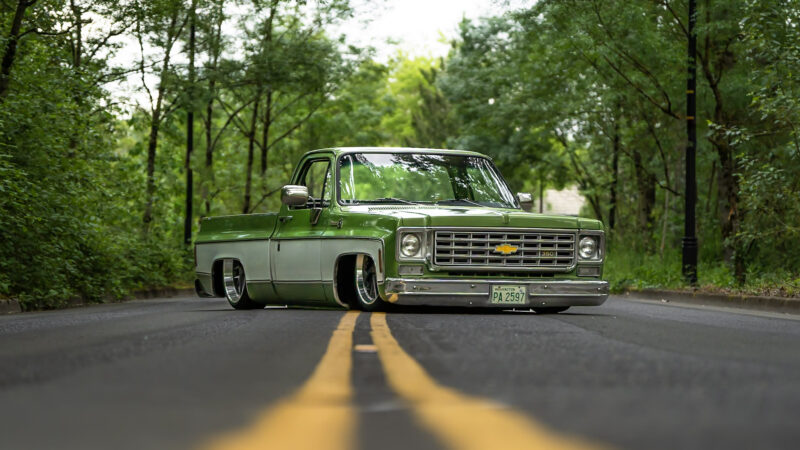

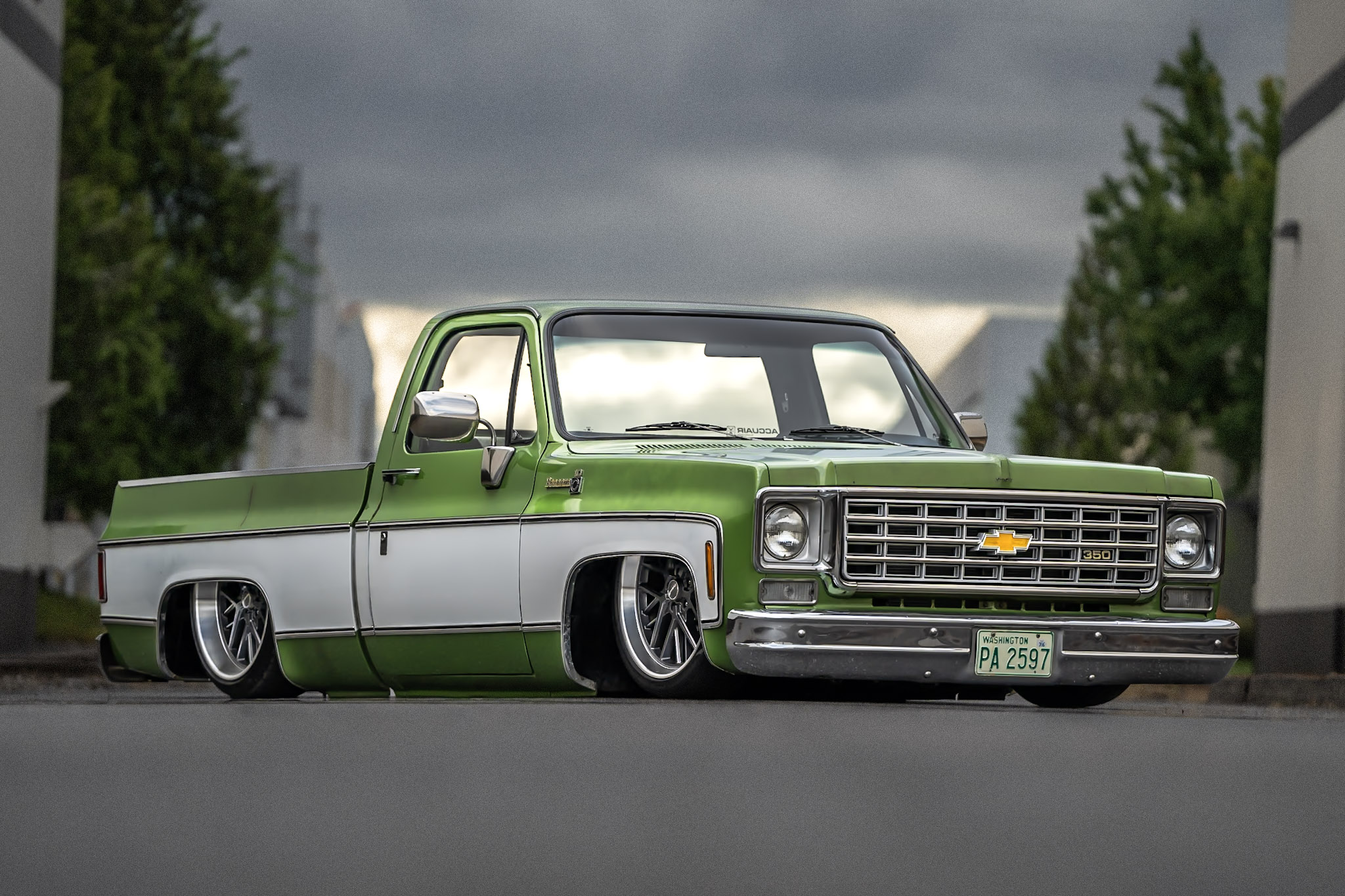

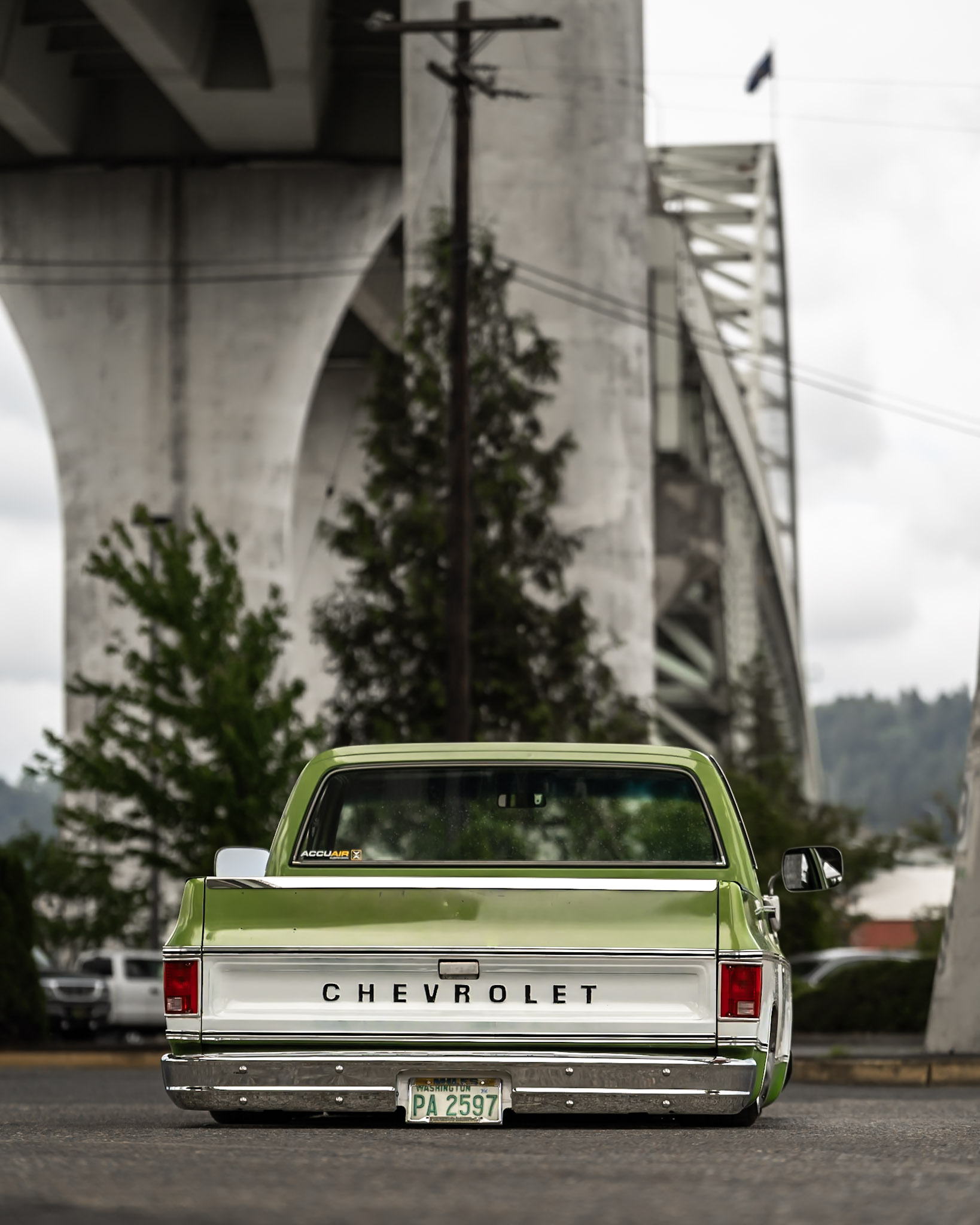

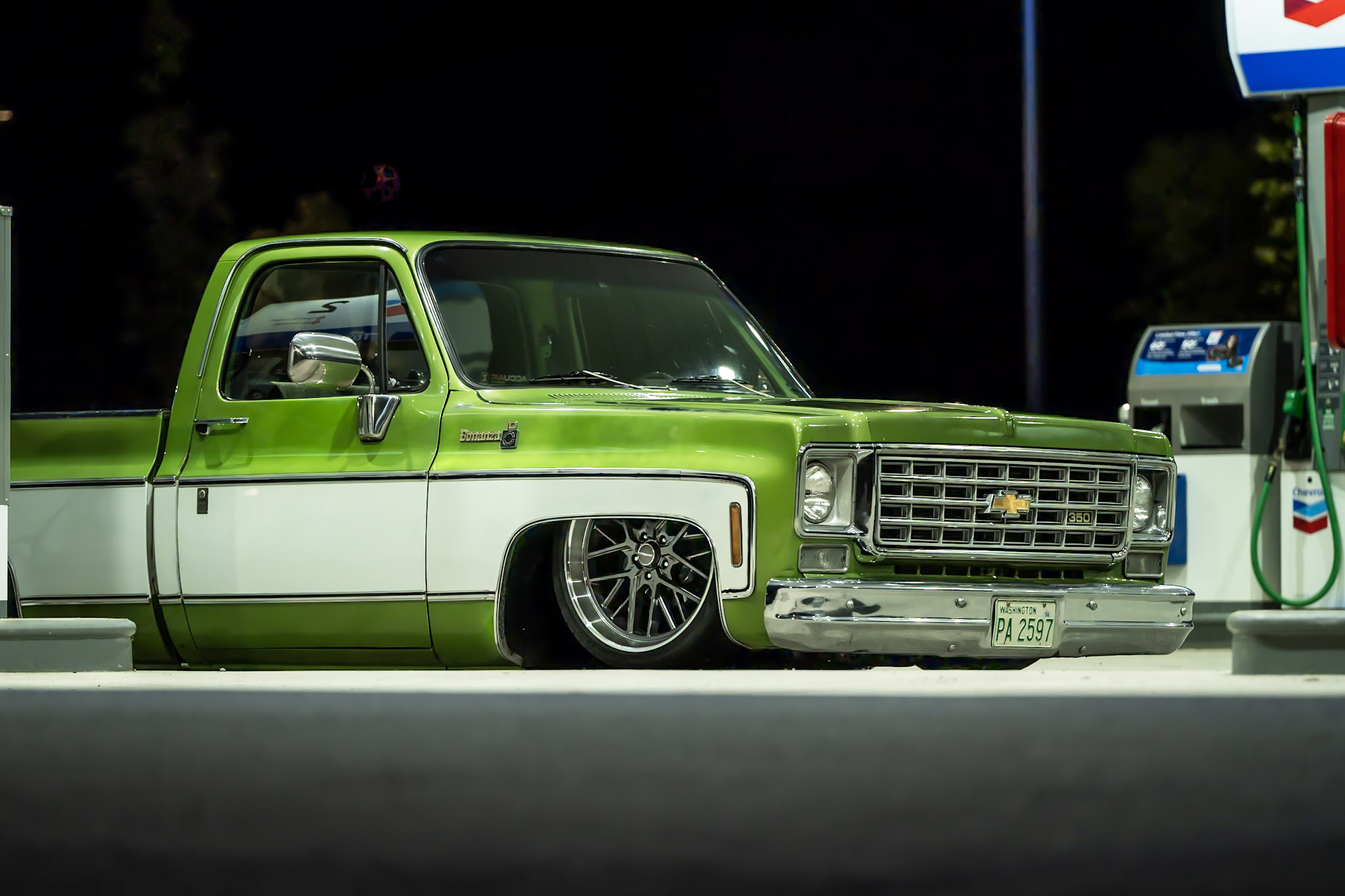

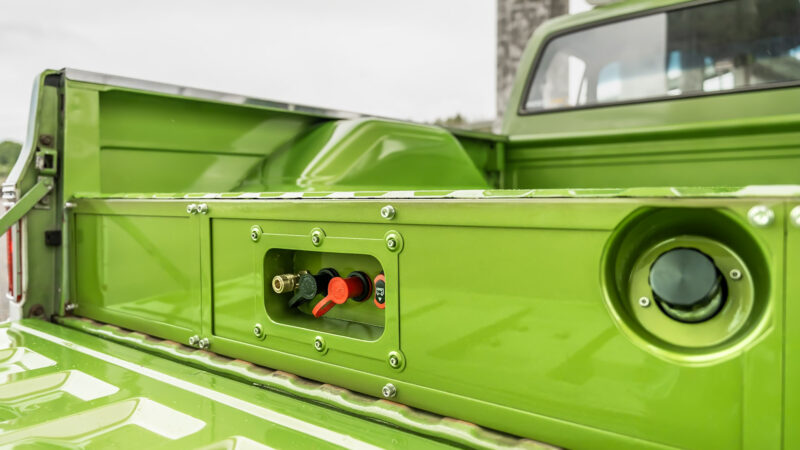

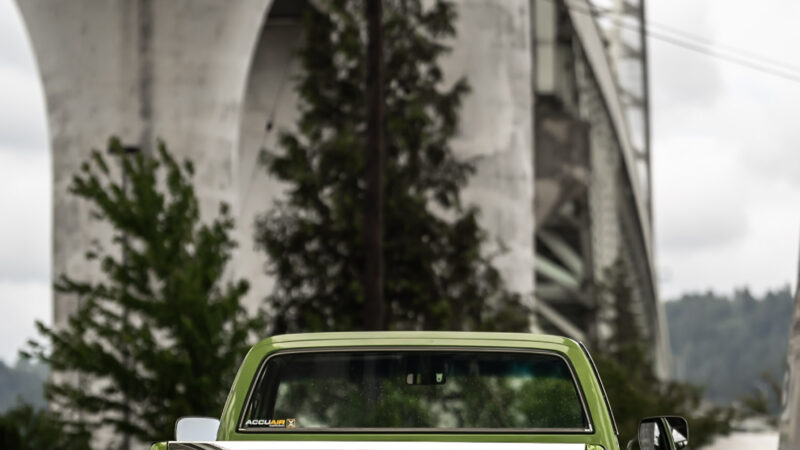

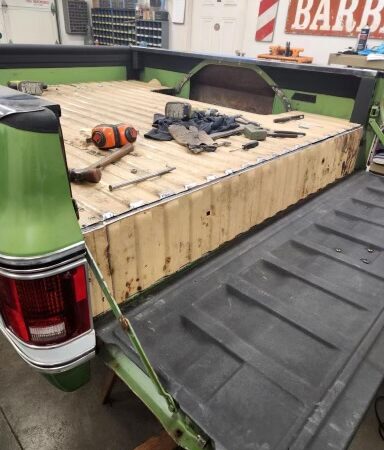

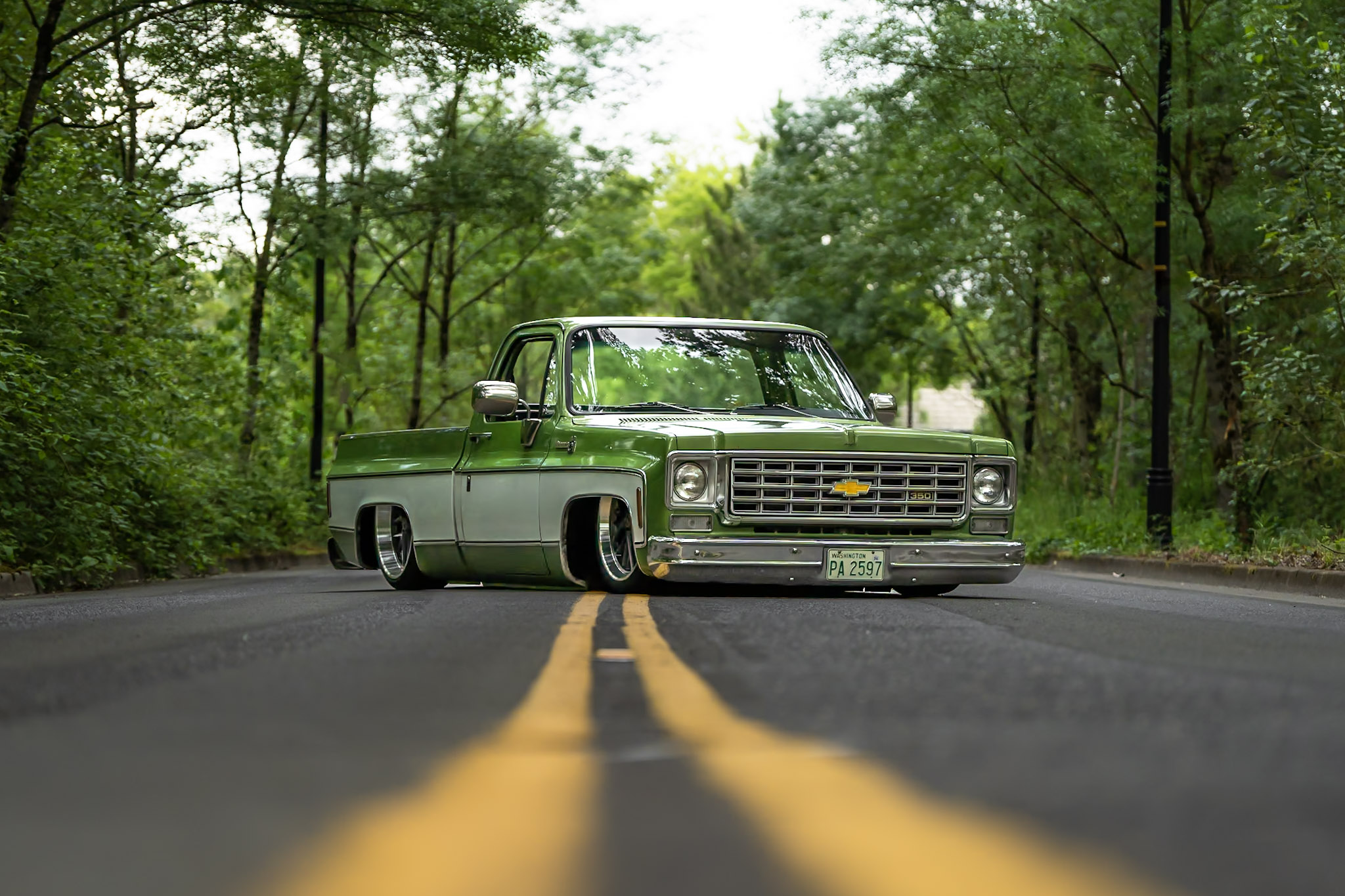

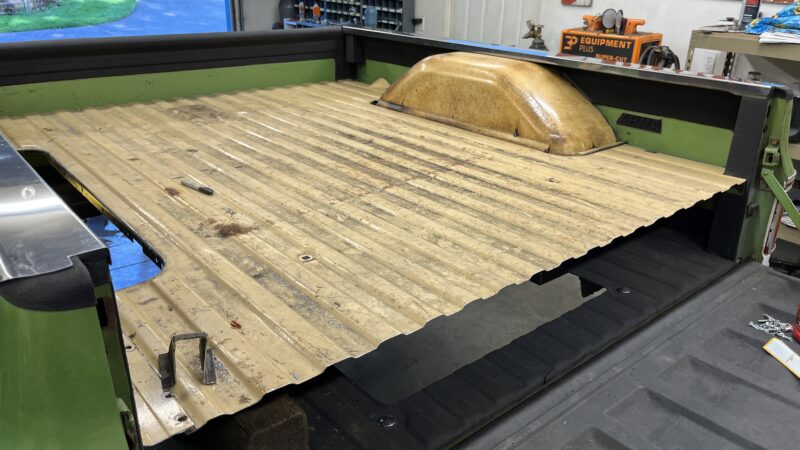

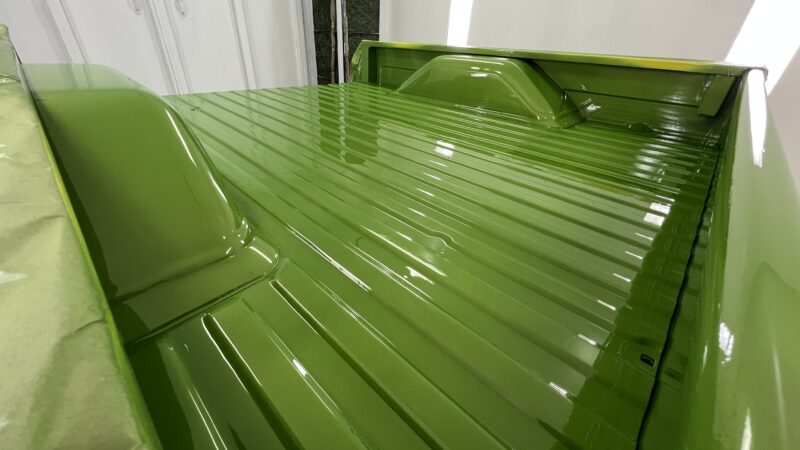

Like most people, my passion for Squarebodies began at a fairly young age.   Fast forward 30 years and a few Squarebodies later, I bought my 1976 C10 Bonanza in June of 2022 with every intention of giving it a 5/7 drop and cruising with my sons.  After speaking with a friend and local chassis shop owner, we all agreed the truck needed to be bagged, quickly spiraling into what it is today.  With the help of Nick Muros at Choice Chassis, the truck was built rather quickly with the right group of people helping out.  The truck sits on a Choppin Block Extreme chassis, with Accuair suspension, riding on 22” Corsart Kingpins.  The truck is powered by a 5.3L LM7 LS engine, built by EFI solutions.  The interior came together with the help of Phil Cato at Cato’s Custom Upholstery, along with Dakota Digital Squarebody Syndicate Series gauges and a Squarebody Syndicate shortened steering column.  The bed floor was taken from a long bed, cut down and bolted back into the original shortbed and getting a fresh coat of BASF-Limco Spring Green paint.  The truck was built on a crazy amount of overtime and was eventually named “Time N’ Half” by Ronnie Wetch.

Magazine articles featuring Time N' Half

Street Trucks Magazine

CK Truck Magazine Show Pony

Tech Sheet

Chassis

  • Air Compressor/Tank:
    • VIAIR Corporation - Viair 485C Air Compressor- 48500

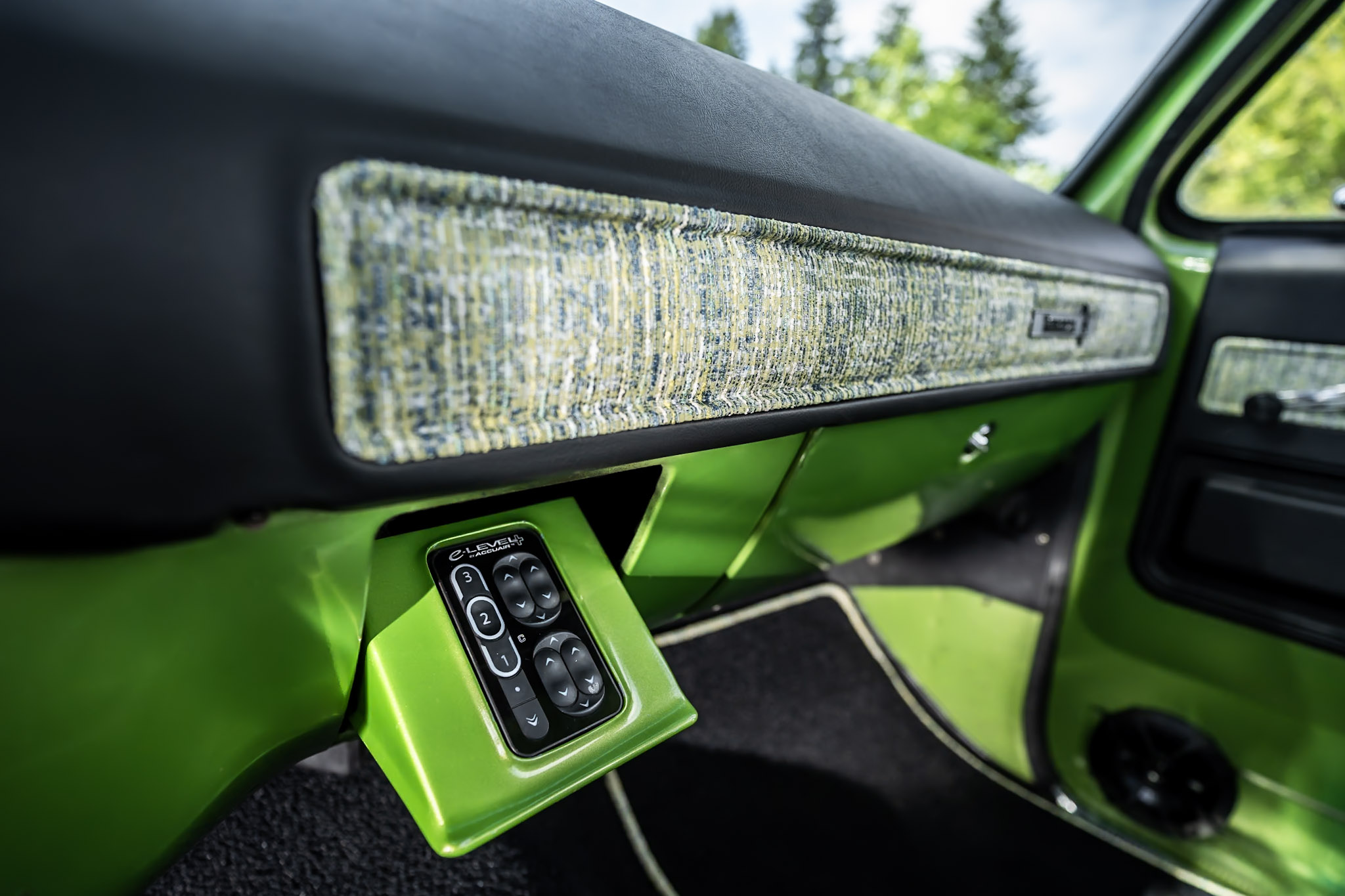

  • Air Ride Controls:

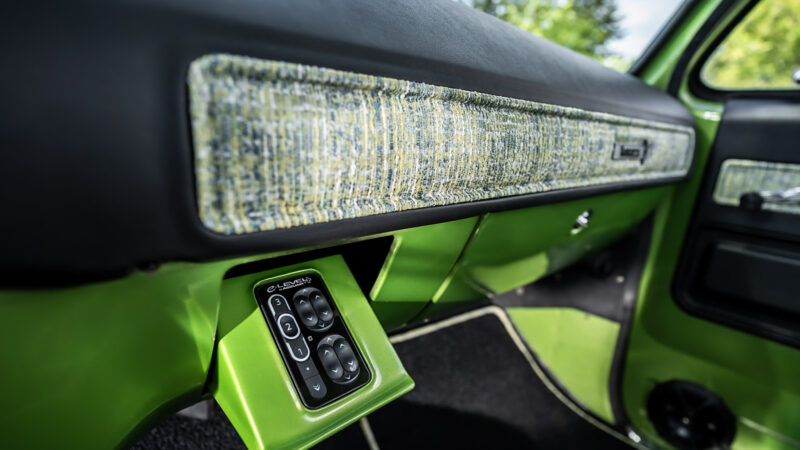

    • ACCUAIR SUSPENSION - Ultimate Air Suspension Management Package - AA-3838
  • Air Suspension:
    • ACCUAIR SUSPENSION - Ultimate Air Suspension Managment Package - AA-3838
    • Slam Specialties - Air Bag SS-8 - 102808
  • Brake Calipers:
    • Wilwood Disc Brakes
  • Brake Rotors:
    • Wilwood Disc Brakes
  • Brakes:
    • Wilwood Disc Brakes
  • Frame:

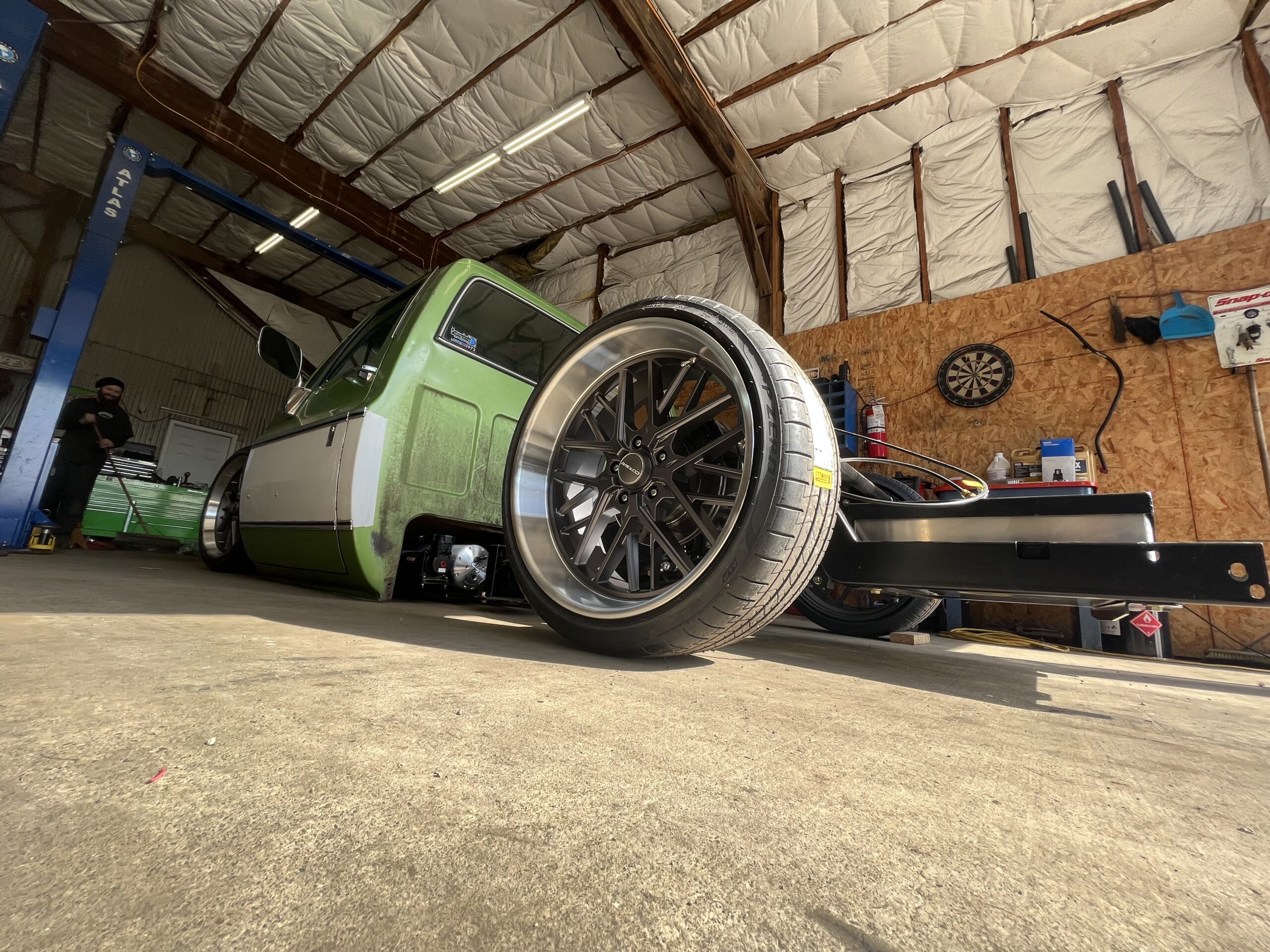

    • Choppin’ Block Chassis Products - Extreme Air Ride Chassis, Sway Bar, Splined1-11/4" Chassis front, Sway Bar, Splined 1" Rear
  • Fuel Tank:

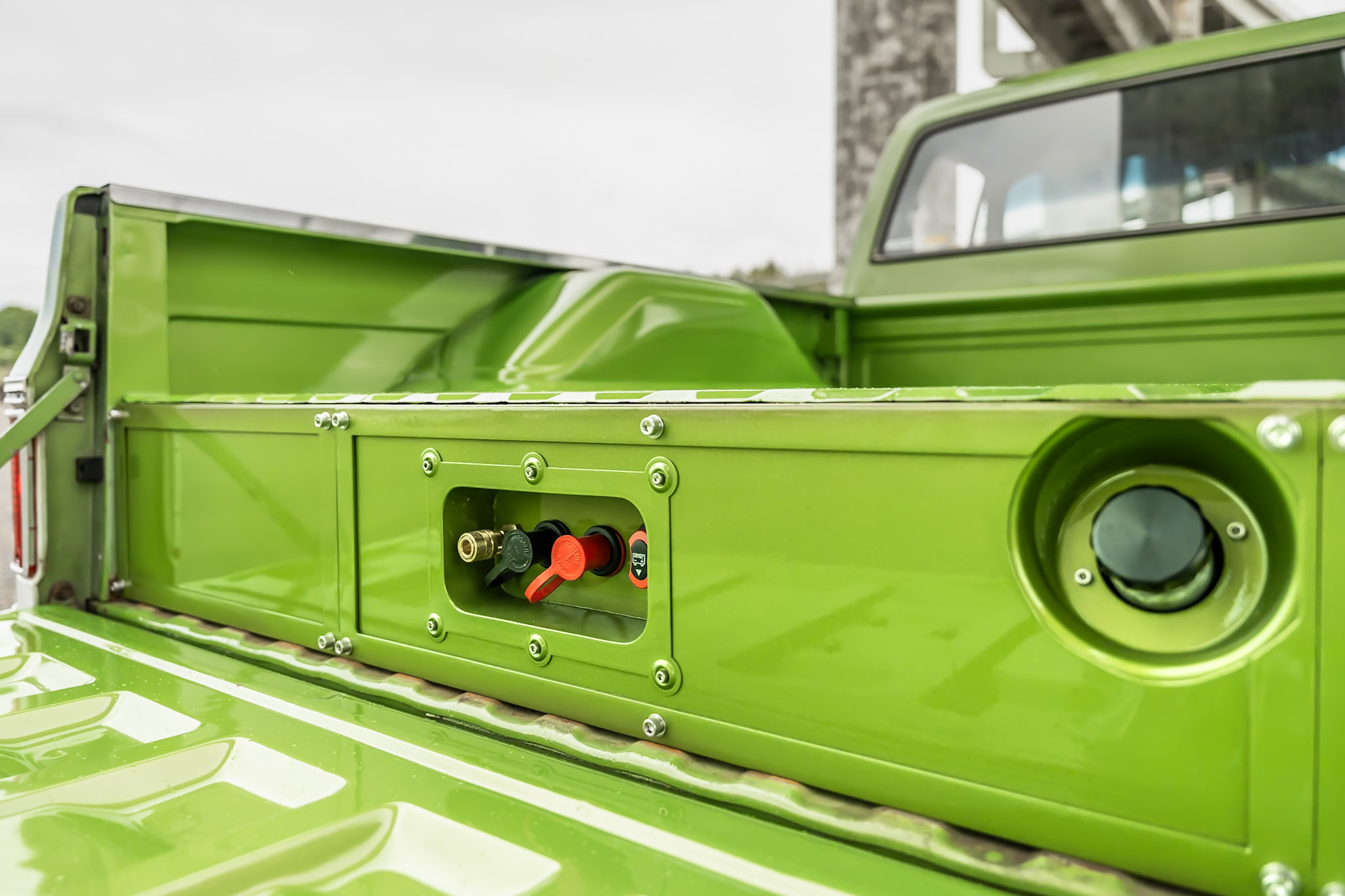

    • Choppin’ Block Chassis Products - Fuel Cell- 20 Gallon
  • Shocks:
    • KYB

Drivetrain

  • Tires:
    • Pirelli Tire | USA - P Zero 295 R30/22 (rear), 255 R35/22 (front)

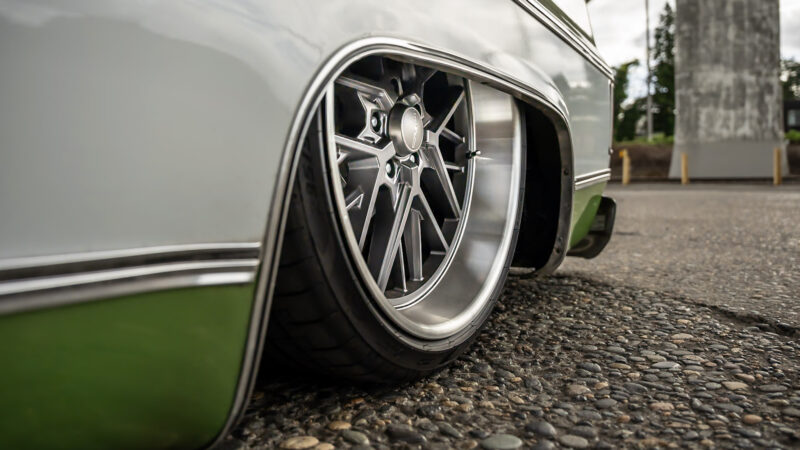

  • Wheels:

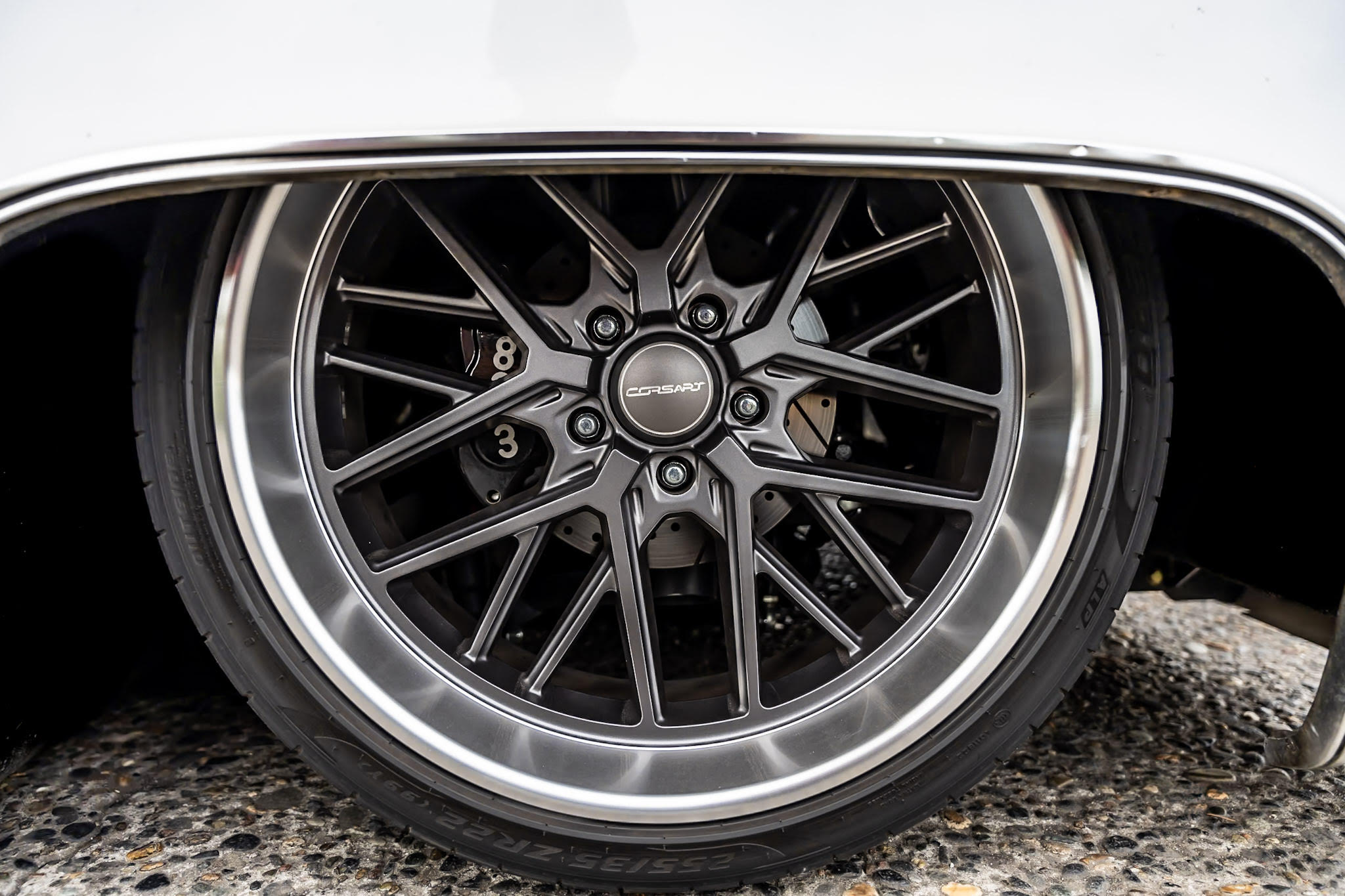

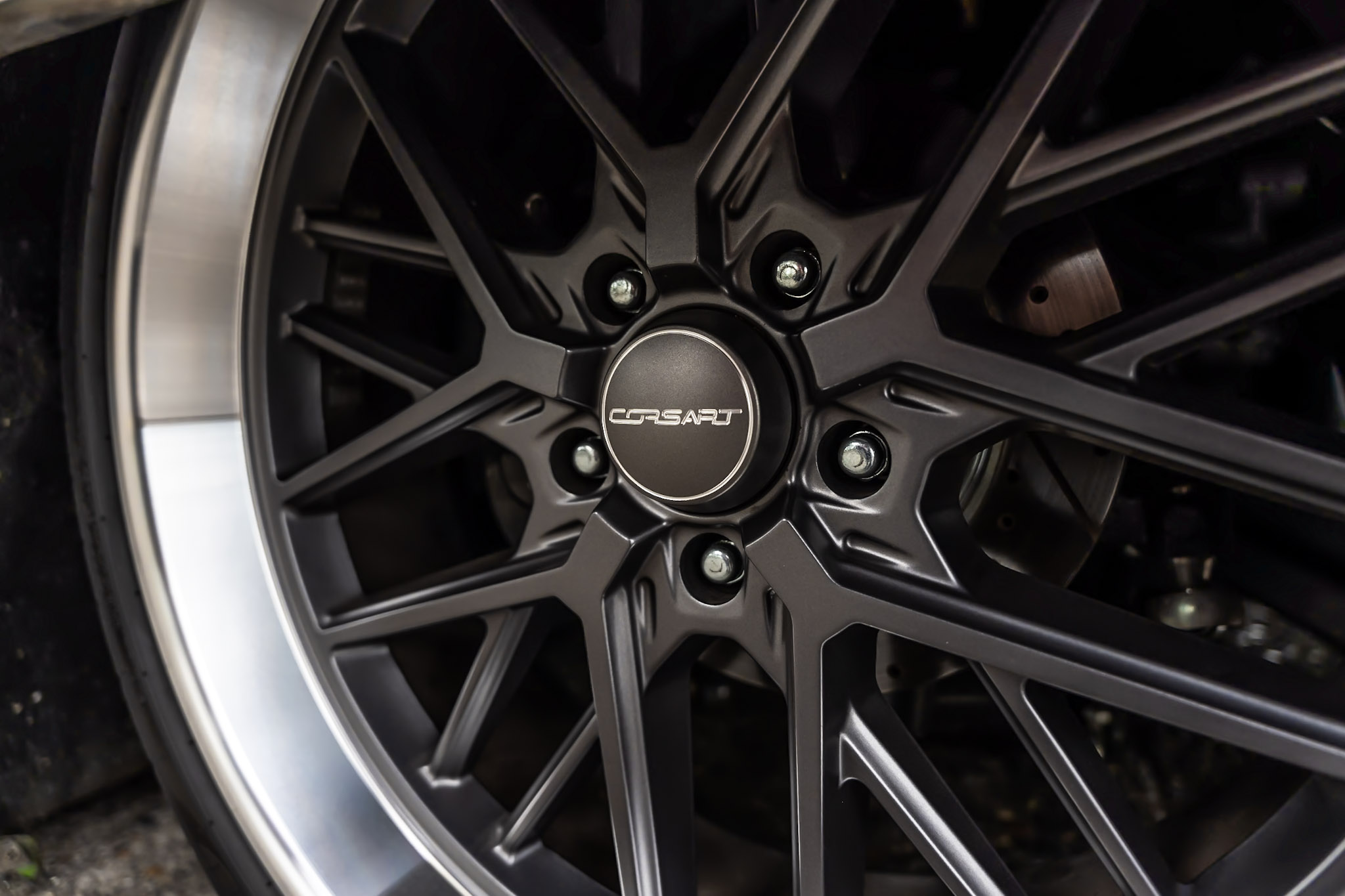

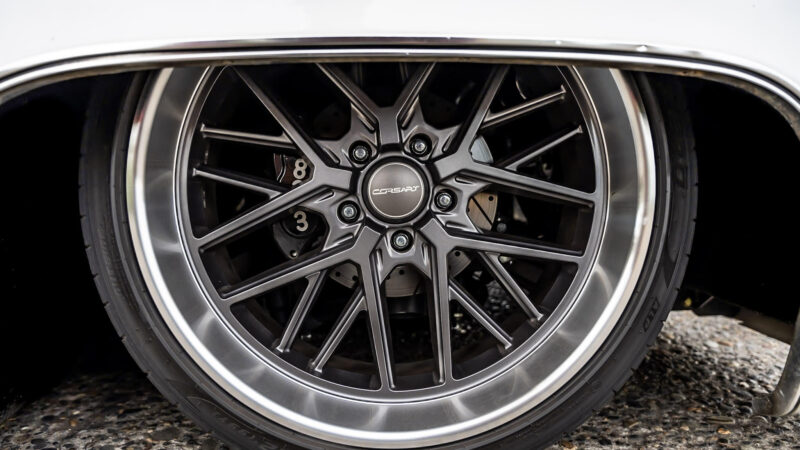

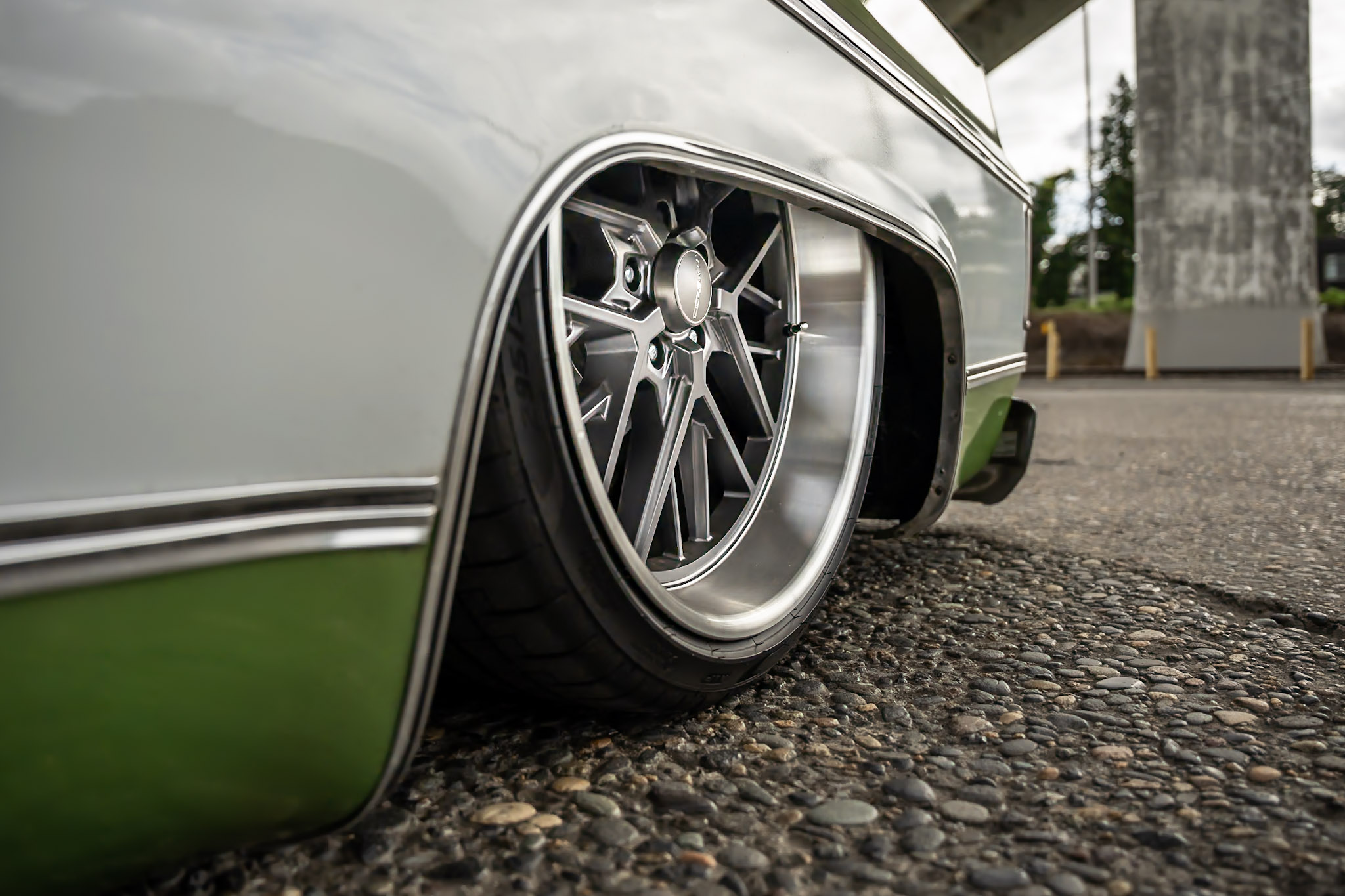

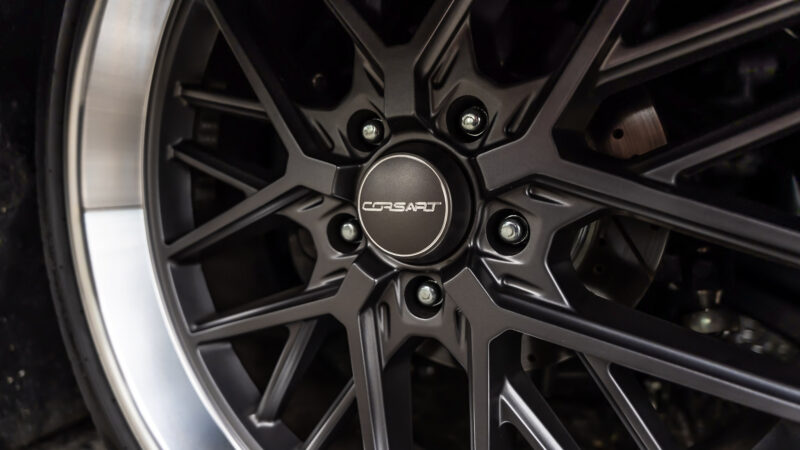

    • Corsart Performance Alloy Wheels - Kingpin 22x10.5 (rear)- R503220573575 22x8.5 (front) - R503228573500

Engine

  • Accessories:
    • ICT Billet - LS Truck - AC Compressor Bracket - 551474-3, LS Truck OEM Location Alternator/Power Steering Bracket - 551777, LS Cylinder Head Coolant Steam Port Crossover - 551675, Gen 3 Valley Pan Cover - 551629G
  • Alternator:
    • General Motors - GM AD244 Style High Outpu 220 Amp - 2891024
  • Battery:
    • Optima Batteries - Red Top - ULT-9004-003
  • Block:
    • General Motors
  • Brackets:
    • ICT Billet - Alternator bracket, Air Conditioning bracket
  • Camshaft:
    • Brian Tooley Racing - BTR Truck Norris Camshaft - 36980001
  • Exhaust Components:
    • MagnaFlow
  • Exhaust Headers:
    • Flowtech Exhaust
  • Fuel Management:
    • Tanks Inc. - Fuel Sending unit
  • Fuel Pump:
  • Fuel Rails:
    • Holley Performance Products
  • Intake Manifold:
    • Holley Performance Products
  • Oil Pan:
    • Holley Performance Products - Retrofit Engine Oil Pan- HLY-302-2

Exterior

  • Body Panels:
    • Slosh Tubz - Slosh Tubz Squared1973-87, Inner Fender Filler Panels 1973-1980
  • Car Care Products:
    • Griot’s Garage Inc. - Best of Show Detailer, PFM Edgeless Detailing Towels, PFM Crinkle Glass Towels, Microfiber Plush Edgeless Towels
  • Paint & Primers:

Interior

  • Amplifier:
    • KICKER - CX1200.1 Mono Amplifier - 46CXA12001
  • Dash:
    • AMD – Auto Metal Direct - Dash Pad - X464-4073

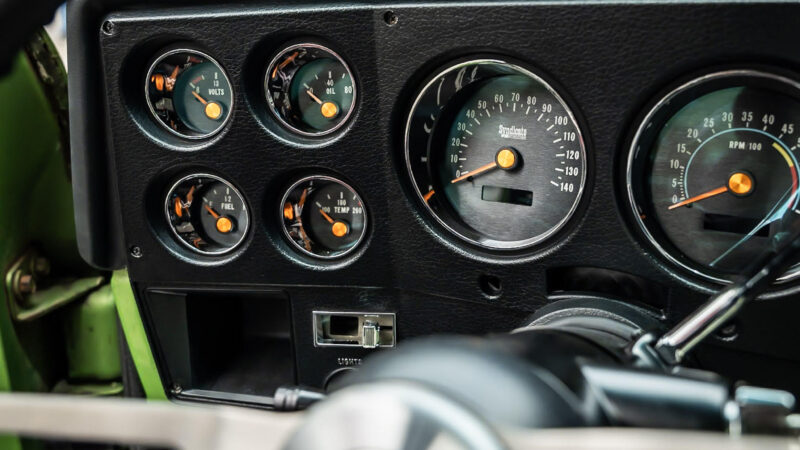

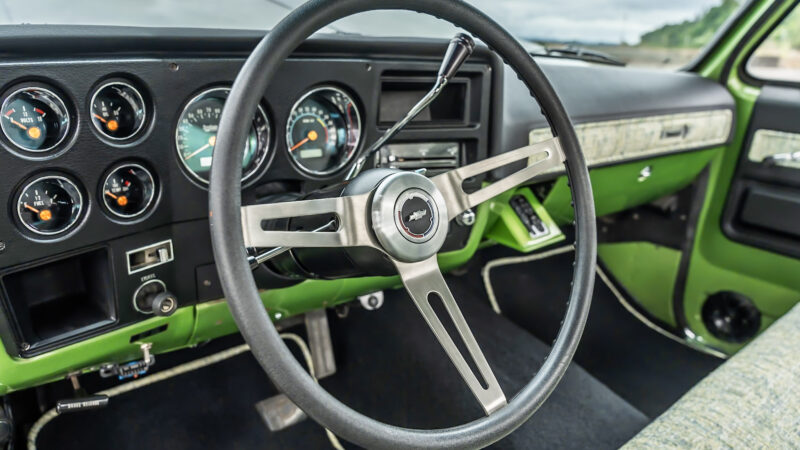

  • Gauges:

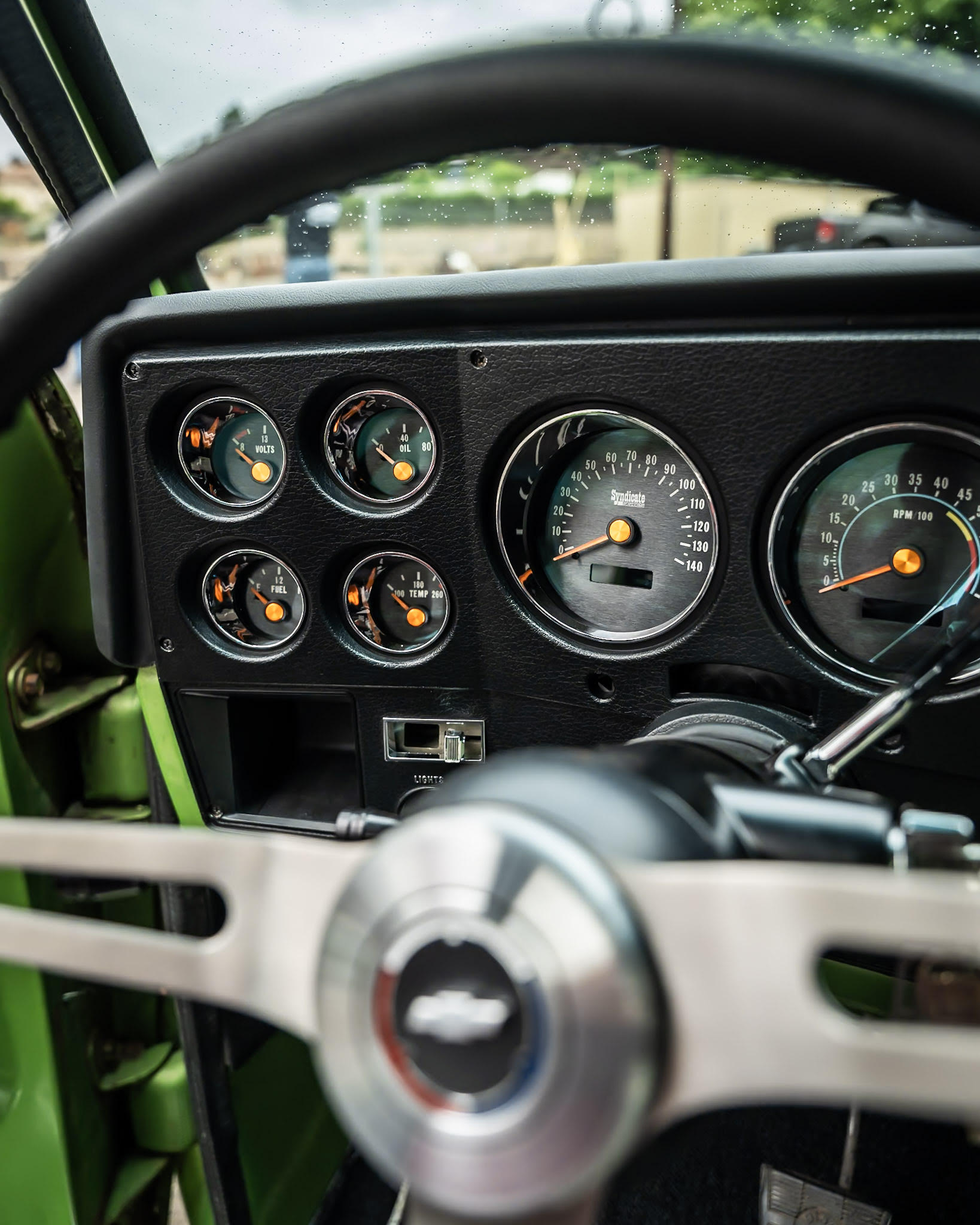

    • Dakota Digital - Squarebody Syndicate Series - VHX-73C-PU
    • Squarebody Syndicate
  • Harnesses/Belts:
    • RetroBelt
  • Heat & AC:
  • Sound Dampening:
    • Kilmat Sound Deadening
  • Speakers:
    • KICKER - 10" CompRT - 48CWRT102, DS Series 6x9" - 43DSC69304, CS Series CSC410 - 50CSC4104

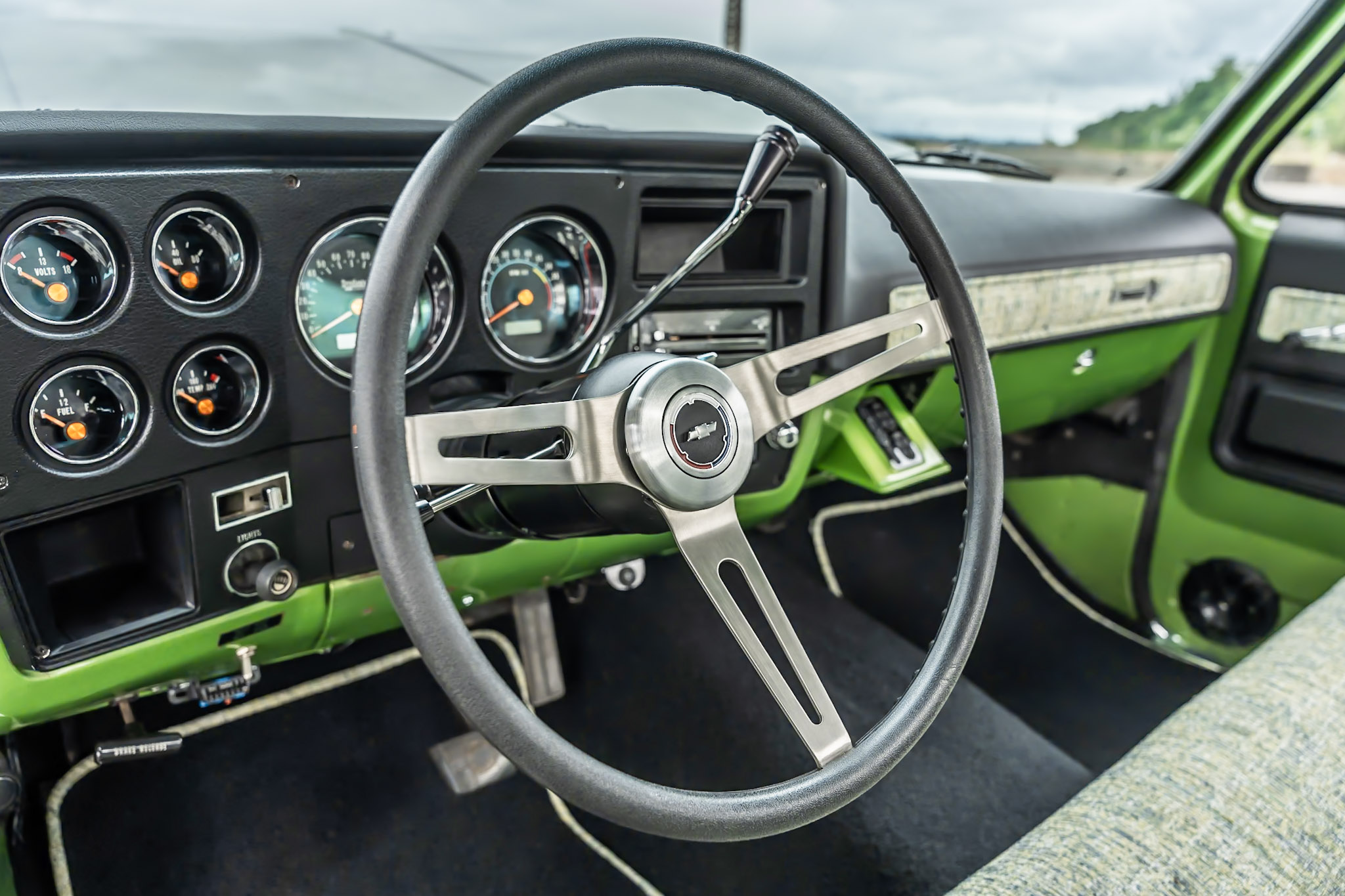

  • Steering Wheel:
    • General Motors - Nk1
  • Steering Column:
    • IDIDIT, LLC. - Squarebody Syndicate Series
    • Squarebody Syndicate

Services

  • Photography:
    • Mac In Motion Photography

Shops

  • Chassis Fab:
    • Choice Chassis & Brake
  • Engine Conversion:
    • Delmo’s Speed and Kustom - Del's Kit 5.3, Holley Intake, Holley Fuel Rails, Dual Snorkel Air Cleaner and Script Valve Covers

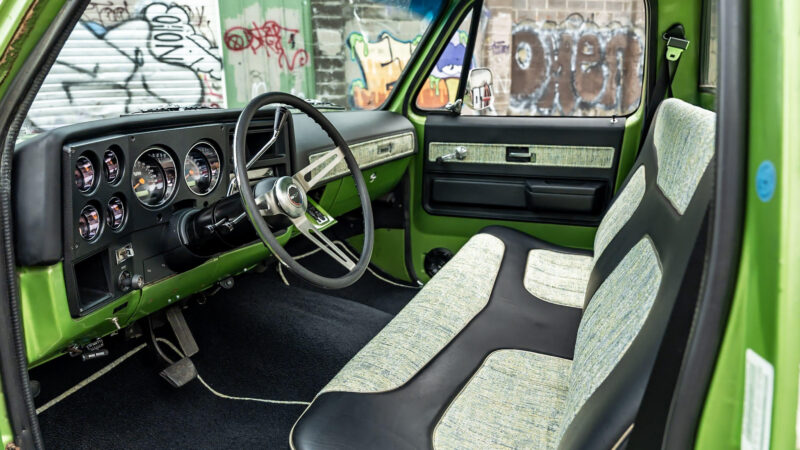

  • Upholstery:

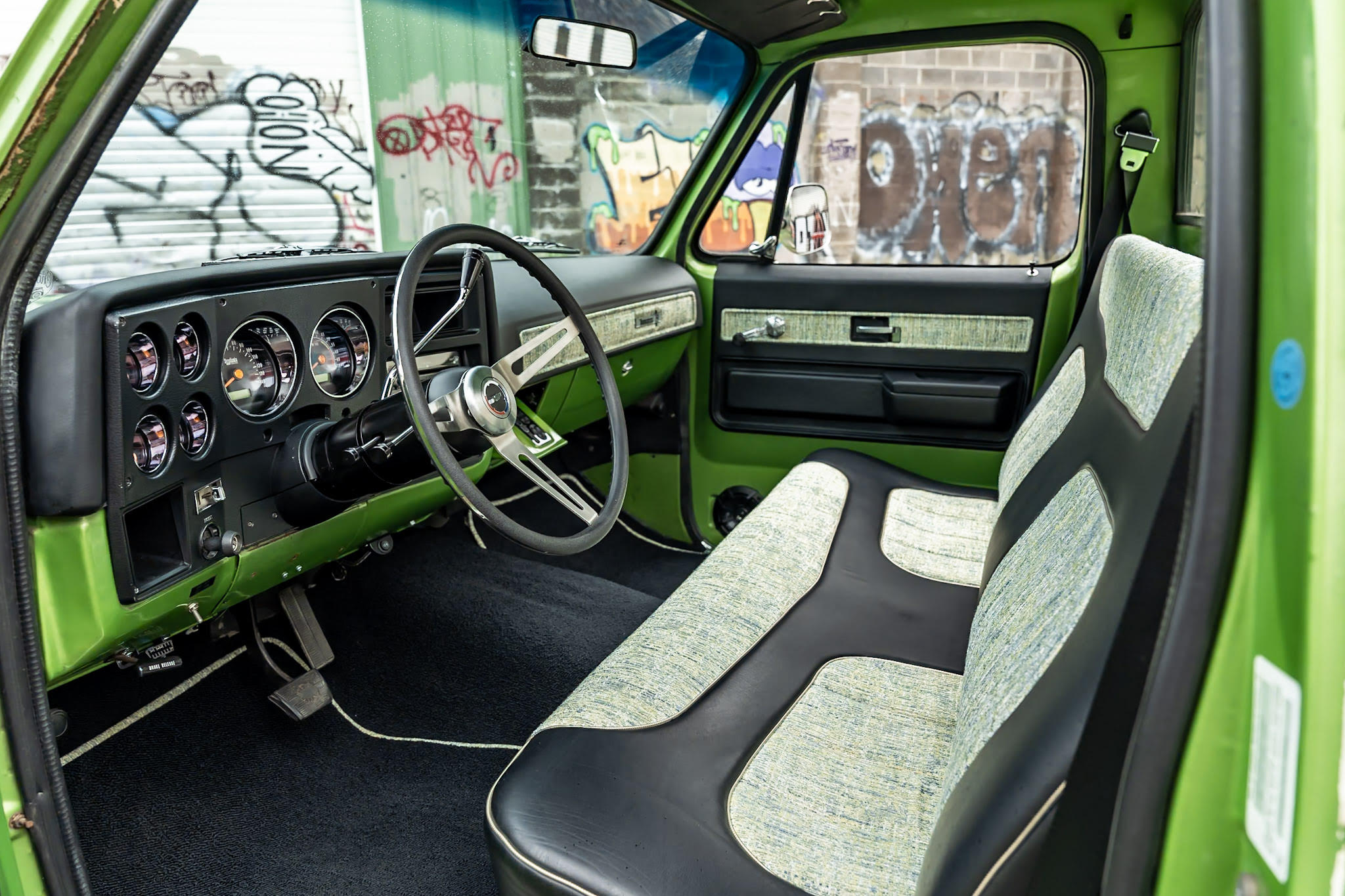

    • Cato’s Custom Upholstery - Custom Bench Seat, Door Panels, Dash and Floor Mats
