2014 Chevrolet Camaro Z28

Project Quick Facts

Profile ID: 2169
Year: 2014
Make: Chevrolet
Model: Camaro Z28
Markets: Muscle Car, Performance, Pro-Touring, Racing
Vehicle Type: American

Manufacturers

Shops

K

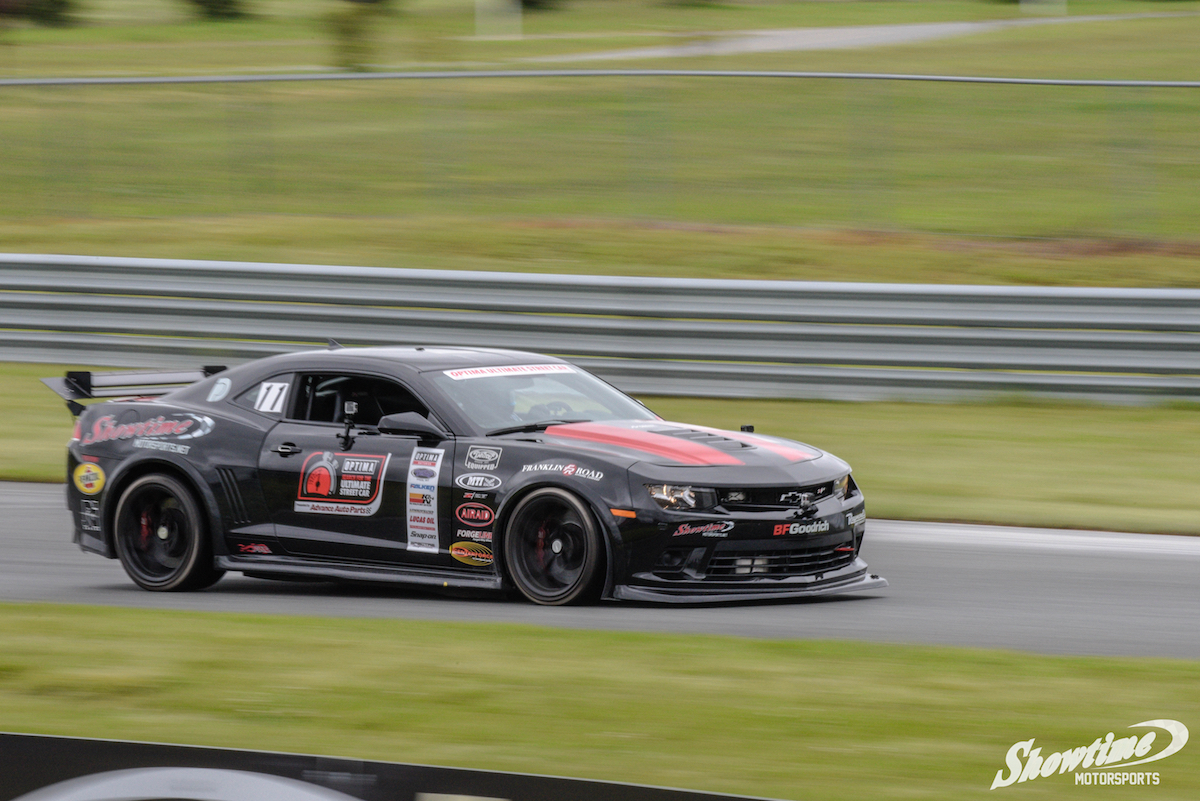

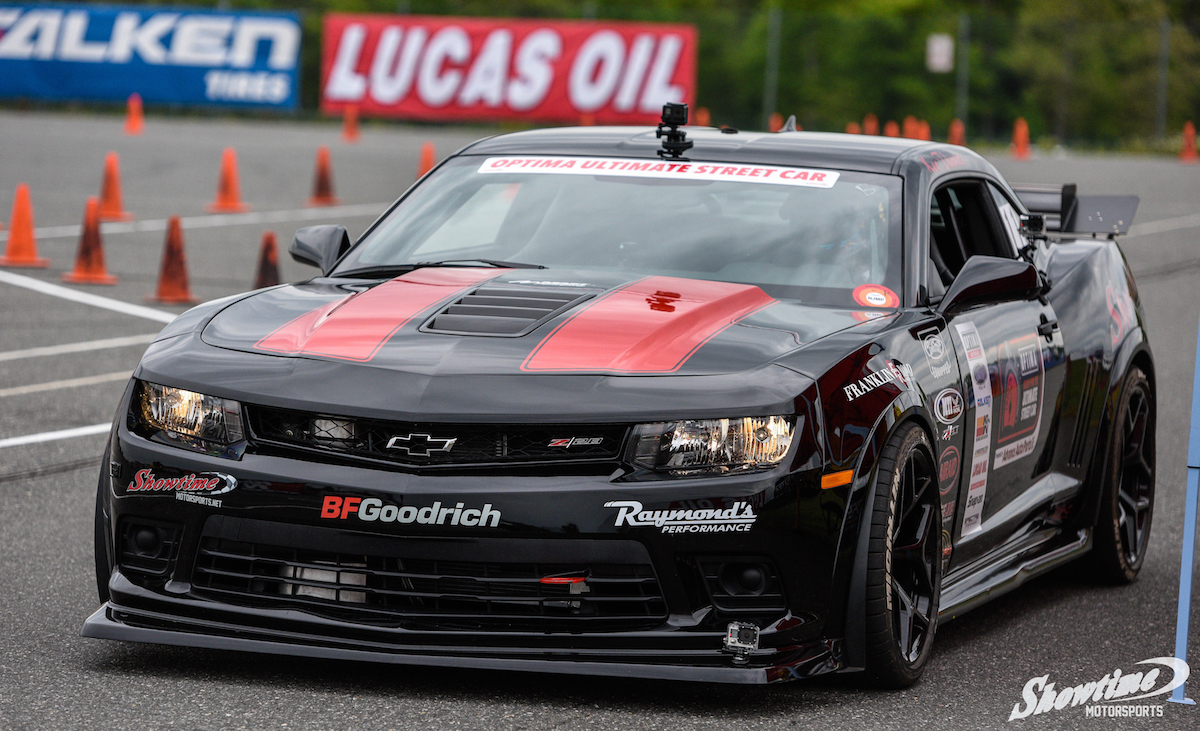

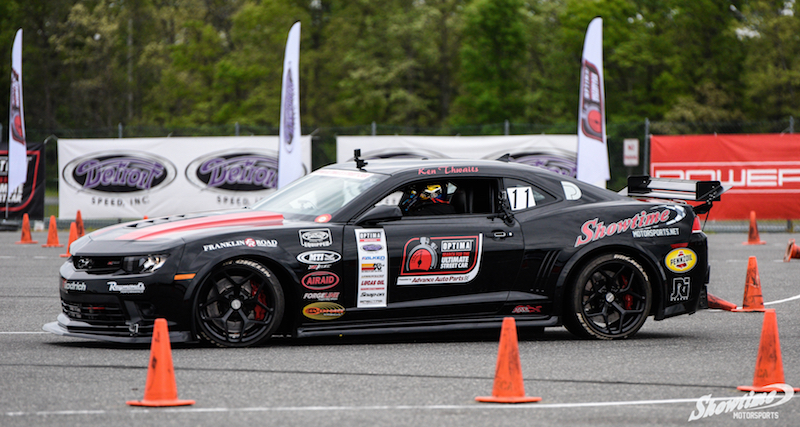

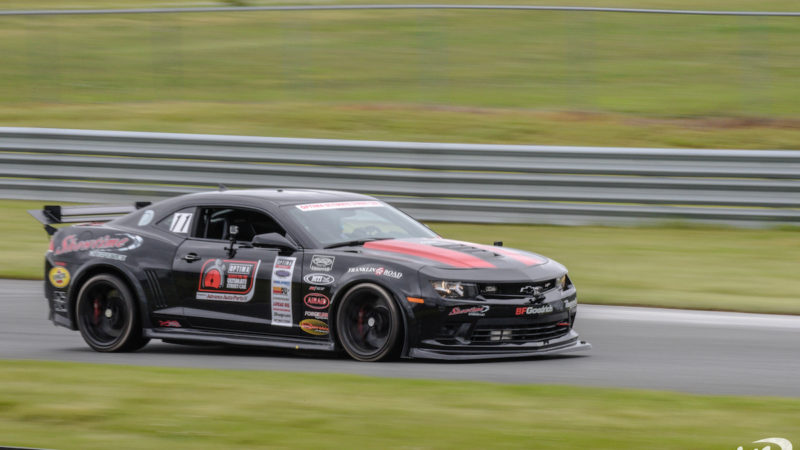

Here is a list of the upgrades on Ken Thwait's black Z28 built by Raymond’s Performance.

Body:

  • Hand laid dry carbon fiber by SiebonG5R Hood with factory Z 228 heat extractor
  • Front fenders 1/2" wider than stock
  • Doors with factory power windows, locks and mirrors
  • Core support cover
  • deck lid
  • Pratt & Miller rear diffuser
  • Dual element rear spoiler built to USCA specs by Good Aero
  • Front and rear tow hooks
  • Custom light weight outer door handles

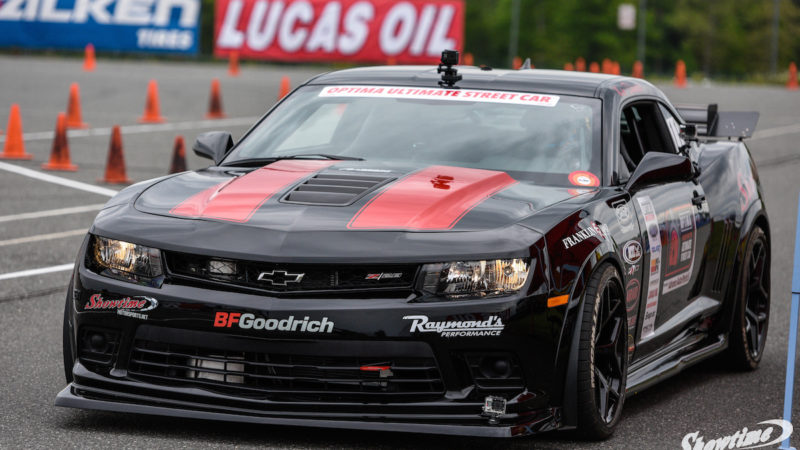

  • Paint is GM Z28 black candy with candy red ghost stripes on the hood and the deck lid.



Drive train:

  • C&R radiator with oil cooler
  • Dailey 3 stage dry sump system
  • Custom dry sump tank by Saldana Racing
  • Oil catch can
  • Detroit Speed solid engine mounts
  • Spectre cold air intake
  • Kooks headers with high flow converters
  • MSD intake
  • Mast hand built 427 with RHS block and Black label heads.making over 720 HP
  • Centerforce Clutch
  • MTI 6 speed sequential transmission with Lingenfelter electronics
  • One piece custom drive shaft
  • Optima battery with billet mount
  • Misc. under hood hydro dipped carbon parts



Suspension, Brakes and Wheels:

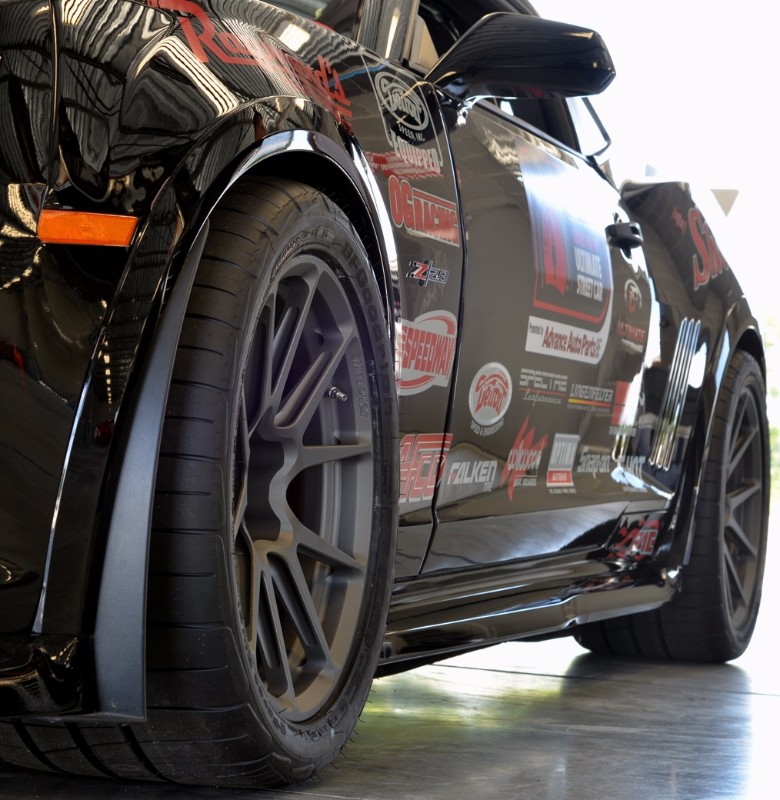

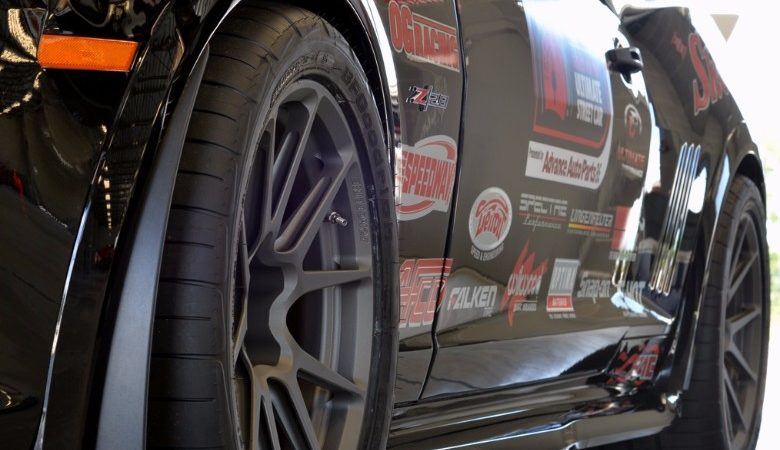

  • 18x11 Forgeline one piece forged monoblock GA1R Open Lug Cap Edition wheel
  • AP Racing 15 1/2 " 6 piston brake system front and rear using the factory Z28 coolers
  • Complete level 3 Detroit Speed suspension with custom fit control arms for the Z28 electronic sensors
  • JRI/DSE double adjustable shocks
  • Custom valving by Ultimate Performance
  • Suspension tuning & set up by Ultimate Performance
  • Light weight Chromoly front subframe



Interior:

  • Custom made Sparco race seats to match the factory Z28 rear seats
  • Custom 6 point chromoly roll cage
  • Impact 5 point race harness for use with a Hans device
  • On board fire system
  • Hydro dipped carbon panels throughout the interior
