2019 Jeep JL – RockJock 4×4’s Shop JL

Vehicle Quick Facts

Profile ID: 62266
Year: 2019
Make: Jeep
Model: JL
Markets: Driven Daily, Off Road
Vehicle Type: American
Contact: RockJock 4×4 by John Currie

Loading

Advertisement

Vehicle Story

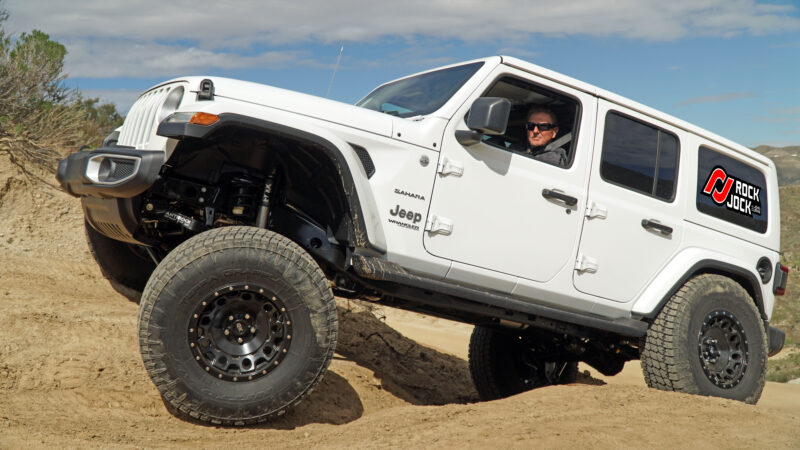

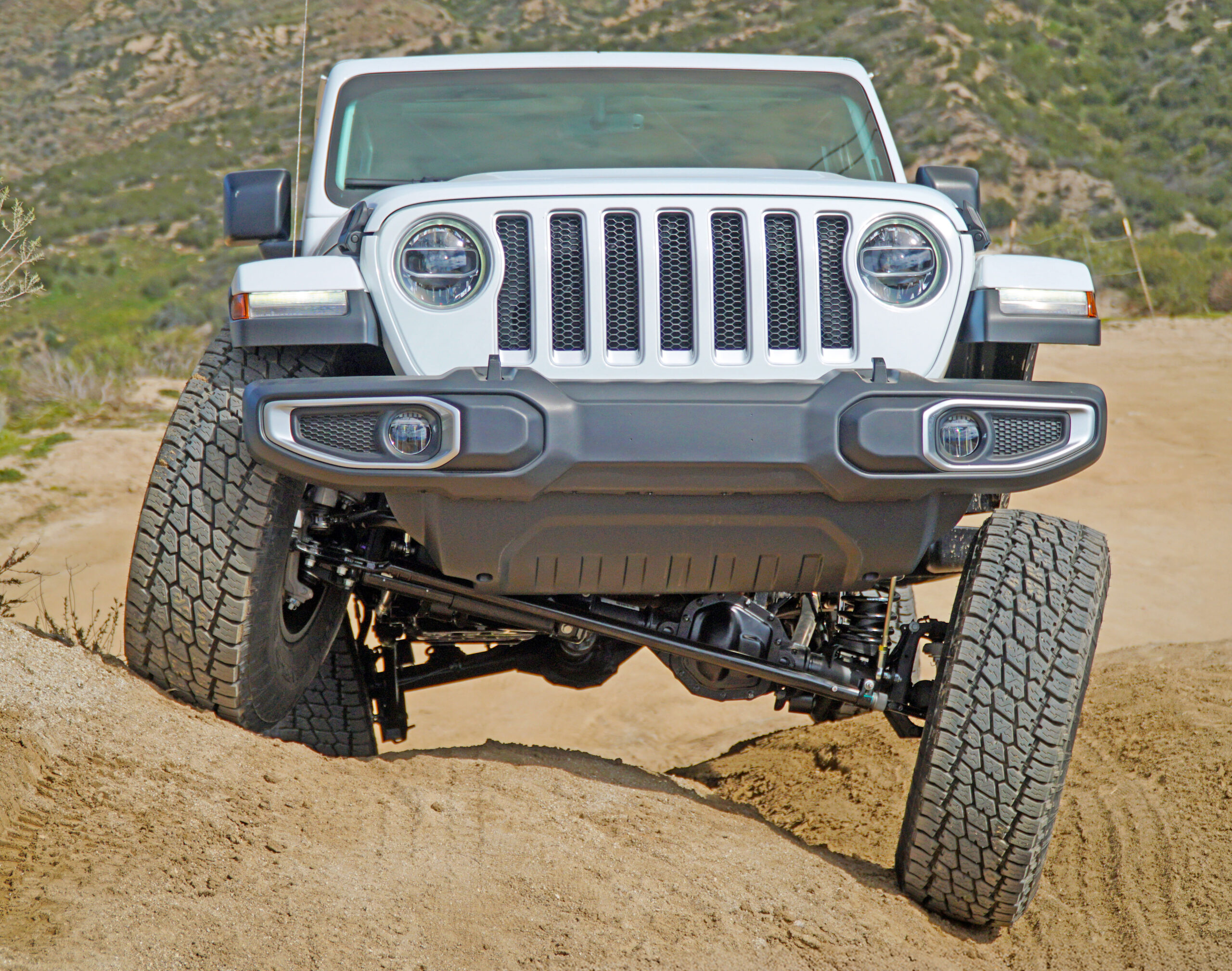

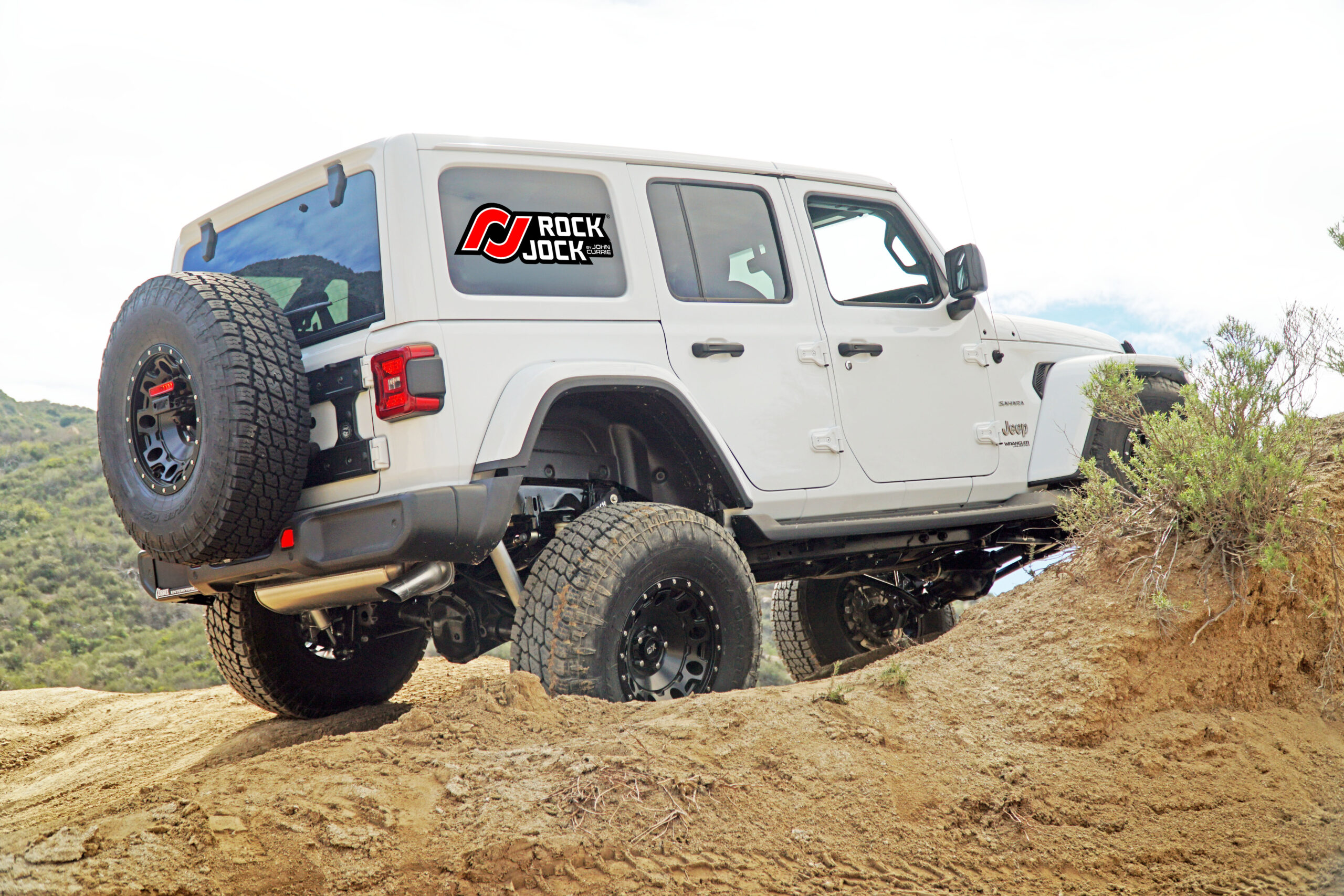

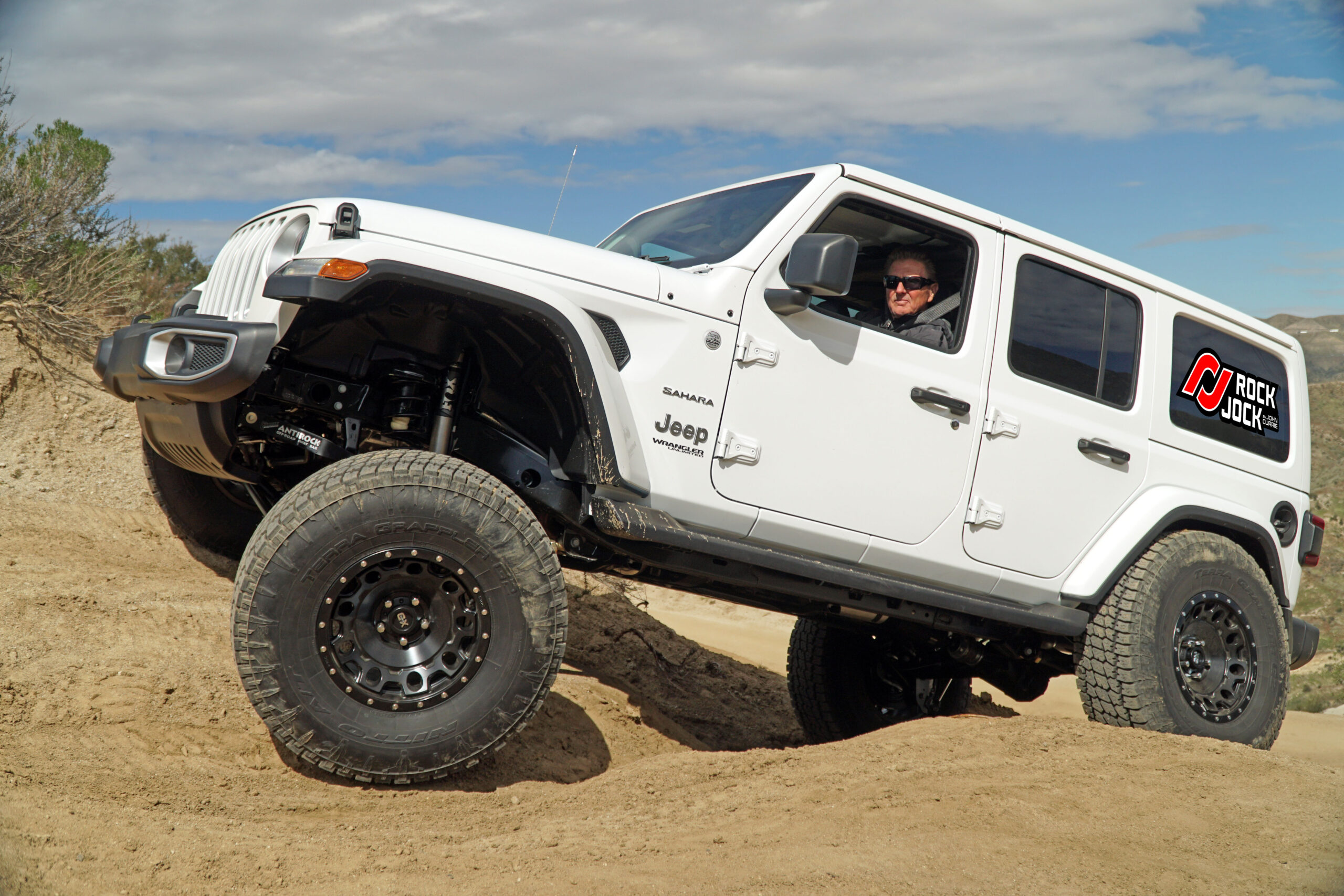

RockJock 4x4's 2019 JL Wrangler Unlimited was purchased new in 2019 by John Currie. In stock configuration, it was taken apart and put back to stock numerous times to illustrate installation of our (RockJock) products in the interest of documentation for instruction manuals and instructional videos.

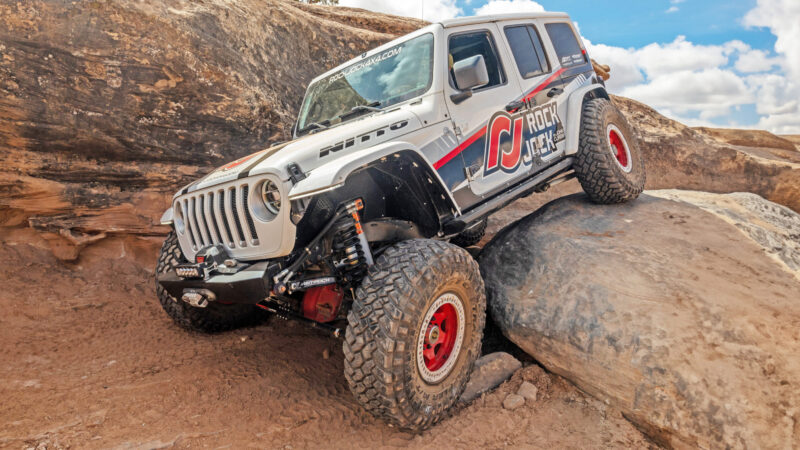

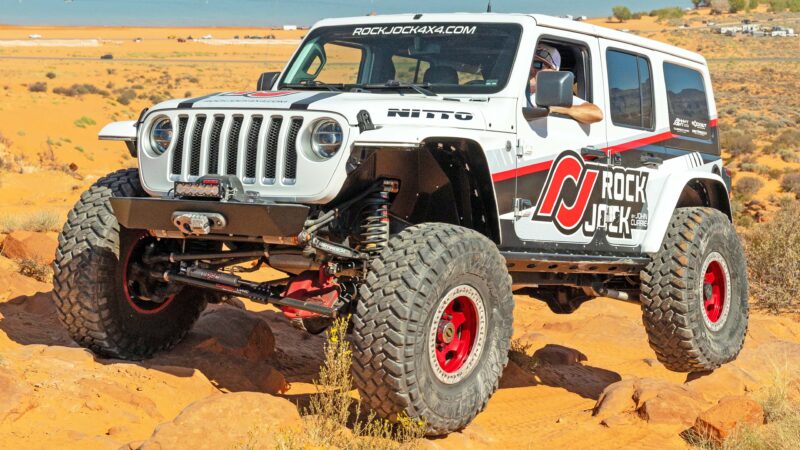

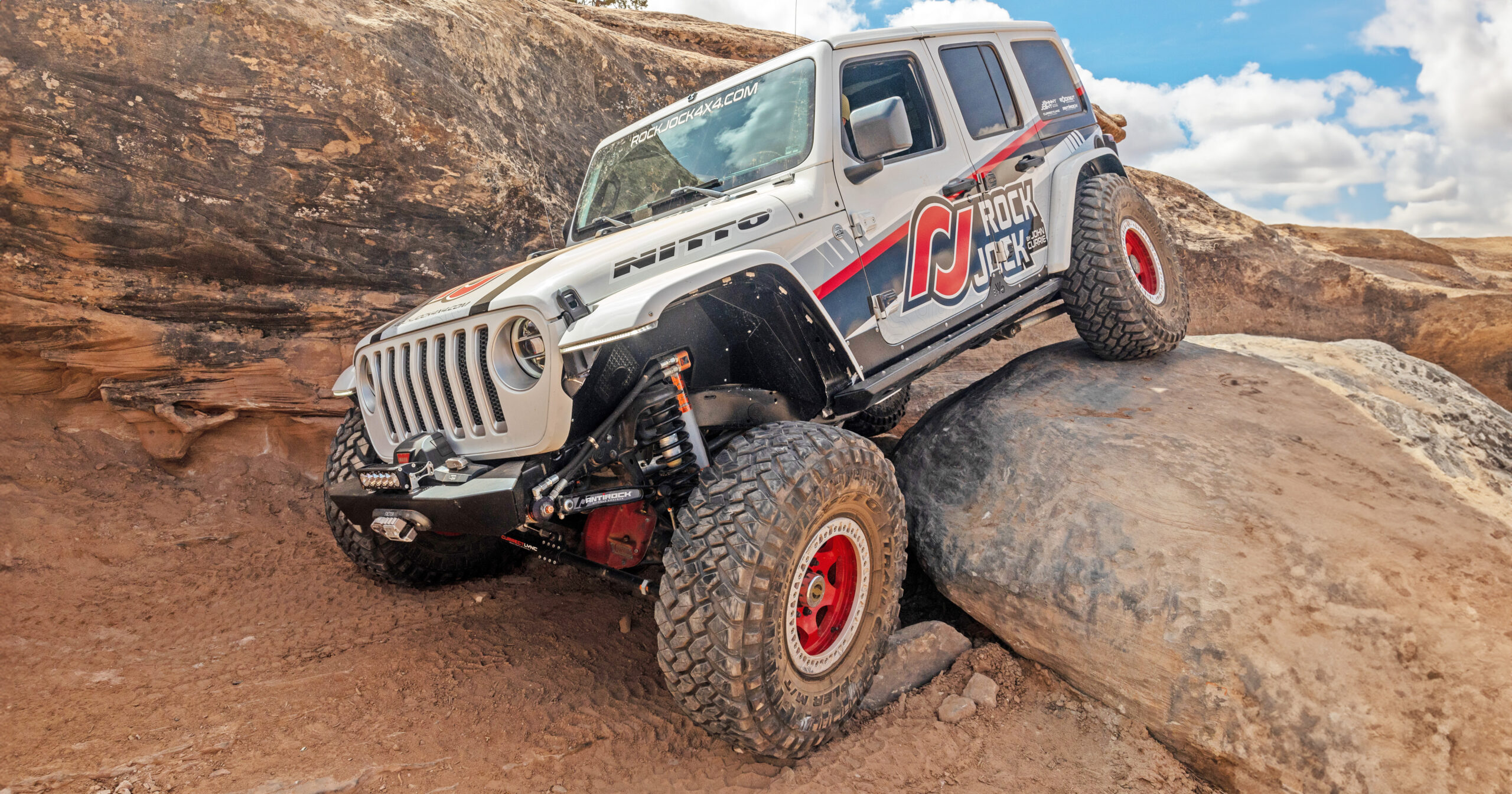

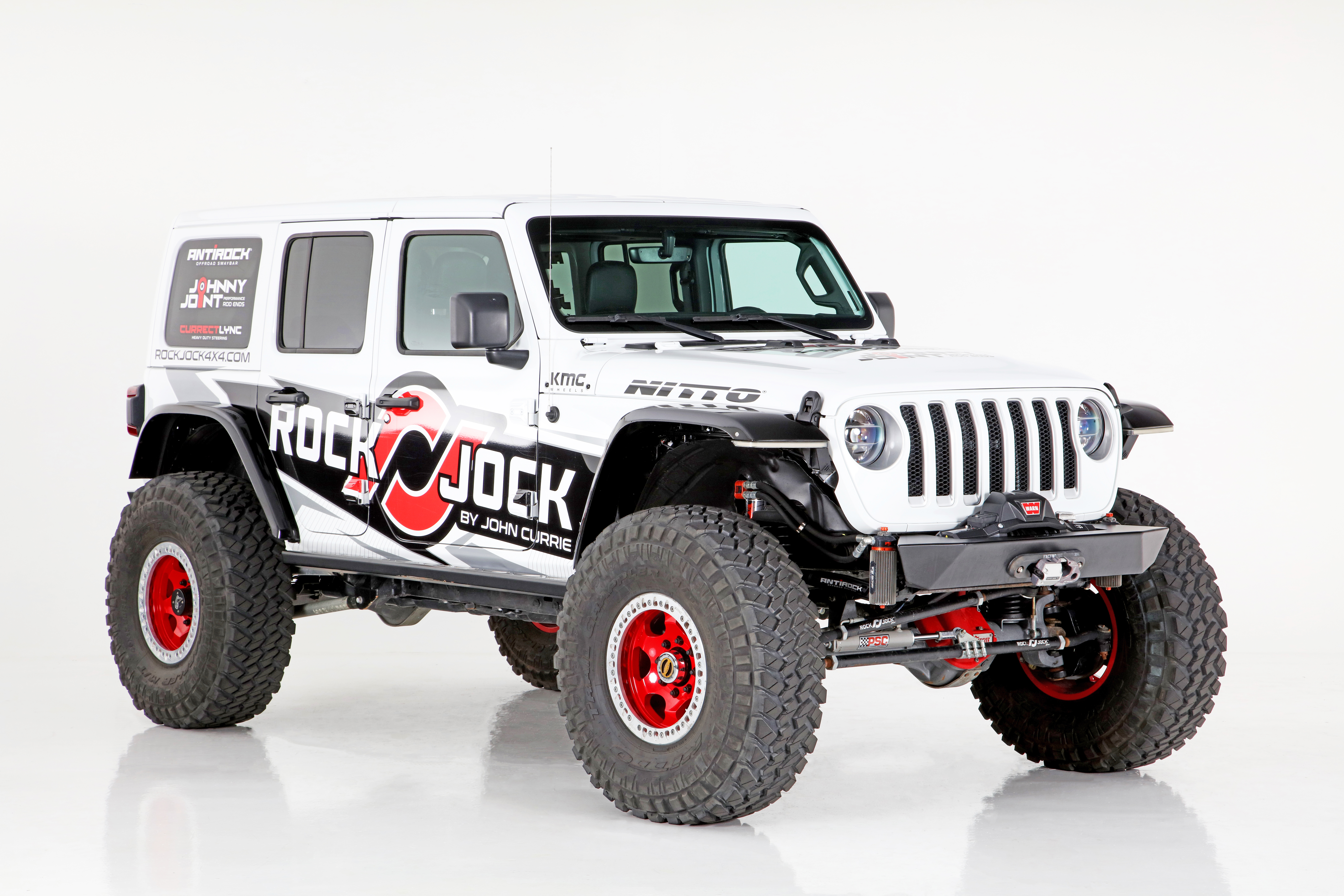

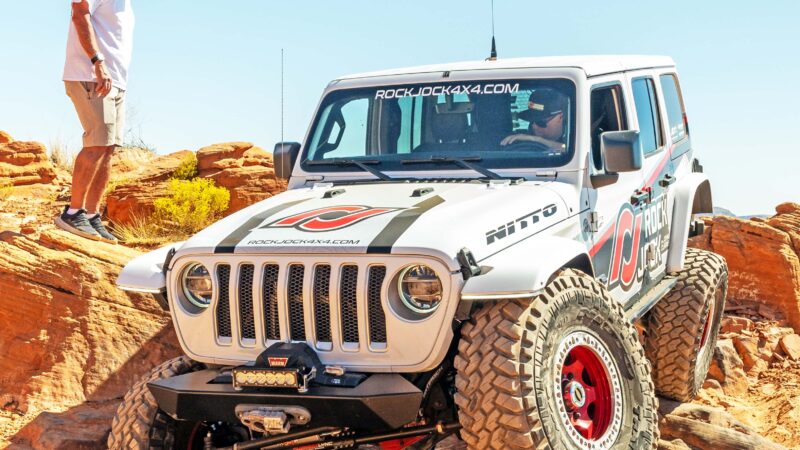

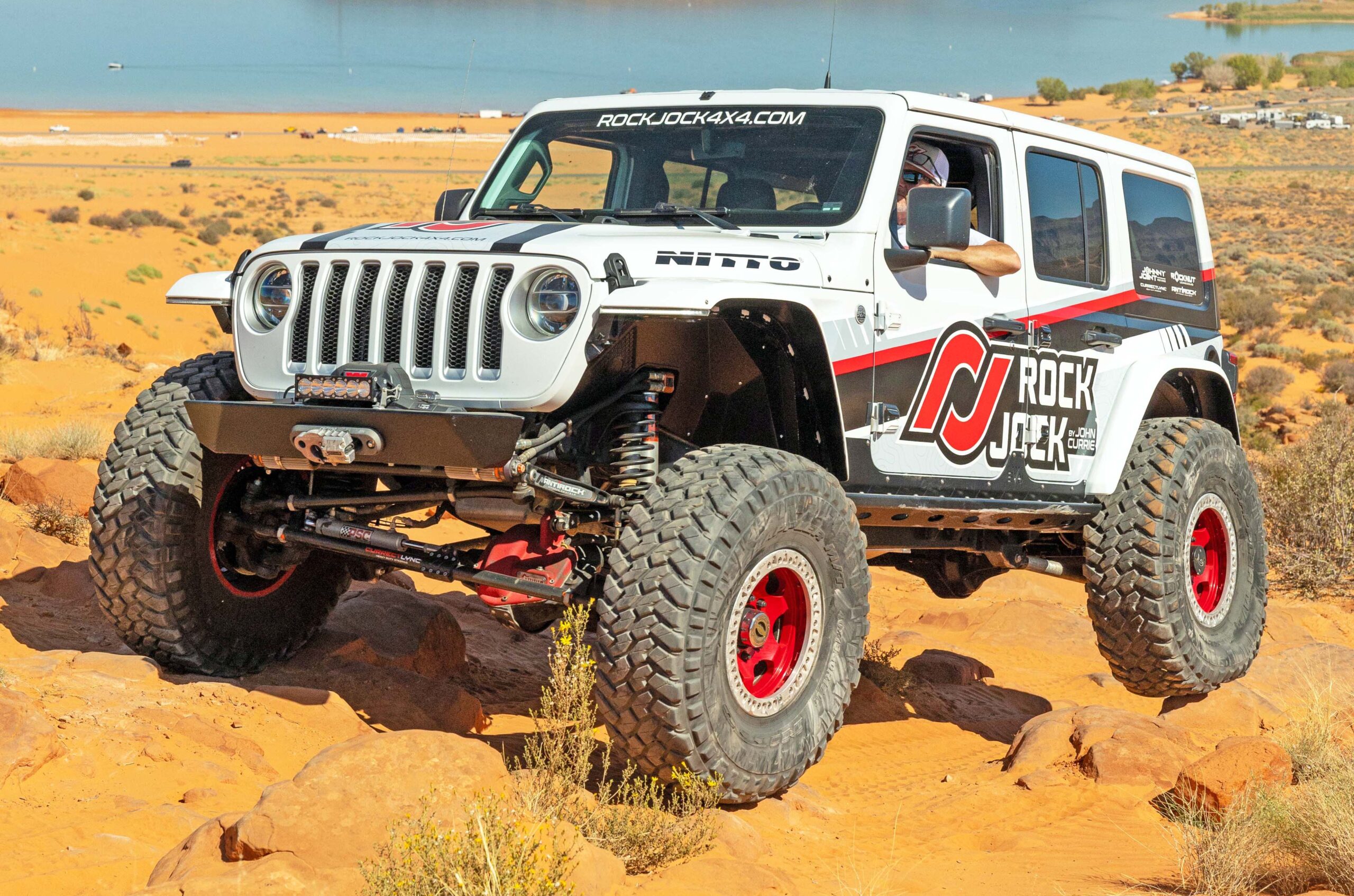

It's final configuration is what you see here, a 1-ton axle, 40" tire, literally go anywhere rock crawler - while still remaining a daily driver.
Drivetrain consists of the stock 3.6L V-6, stock automatic transmission and stock transfer case. Interior is 100% stock.
Our builds are constantly evolving when new ideas come along, so if you've seen this vehicle once - it'll probably be different by the next time you see it!

Tech Sheet

Chassis

  • Links/Kits:
    • RockJock 4×4 by John Currie - All 8 control arms and both trac bars are adjustable length Johnny Joint from RockJock 4x4 (billet aluminum RockNut control arms)
  • Body Mounts:
    • JEEP - Stock Jeep JL.
  • Brackets:
  • Brake booster:
    • JEEP - Mopar bolt-on upgrade kit.
  • Brake Calipers:
    • Ford Motor Company - Ford F-350 front, stock Jeep JT Gladiator rear.
    • JEEP
  • Brake Pads:
    • Ford Motor Company - Ford F-350 front, stock Jeep JT Gladiator rear.
    • JEEP
  • Brake Rotors:
    • Ford Motor Company - Ford F-350 front, stock Jeep JT Gladiator rear.
    • JEEP
  • Brakes:
    • Ford Motor Company - Ford F-350 front, stock Jeep JT Gladiator rear.
    • JEEP
  • Bumpers:
    • CRC – Casey Currie
  • Bushings:
  • Cables:
    • JEEP - Stock Jeep JL.
  • Control Arms:
  • E-Brake:
    • JEEP - Stock Jeep JL.
  • Frame:
    • JEEP - Stock Jeep JL.
  • Fuel Tank:
    • JEEP - Stock Jeep JL.
  • Gaskets:
    • Mopar - Stock Jeep JL.
  • Master Cylinder:
    • JEEP - Mopar bolt-on upgrade kit.
  • Panhard Rod:
  • Plumbing/Fittings/Hoses:
    • JEEP - Stock Jeep JL.
  • Power Steering Pump:
    • PSC Motorsports - PSC for ram assist steering.
  • Power Steering Reservoir:
    • PSC Motorsports - PSC for ram assist steering.
  • Rod Ends:
  • Shocks:
    • Fox
  • Skid Plates:
    • Artec Industries
  • Spindles:
    • Ford Motor Company - F-350 ball joint knuckles and F-350 unit bearings.
  • Springs:
  • Steering:
  • Suspension Kit:
    • RockJock 4×4 by John Currie - RockJock 4x4's Pro Edition 3.5" lift Johnny Joint Suspension System upgraded with RockJock's billet aluminum long arm kit.
  • Sway Bars:
  • Trailing Arms:
  • Winch:
    • Warn Industries, Inc.

Drivetrain

  • Axle Housing:
    • Currie Enterprises - Currie 70 front / Currie 70 rear.
  • Axle/CV shaft:
    • Currie Enterprises - 35 spline front w/ 1350 u-joints / 40 spline rear (full floating)
  • Bearings:
    • The Timken Company
  • Differential:
    • Currie Enterprises - Currie 70 front / Currie 70 rear.
  • Differential Cover:
    • Currie Enterprises - Currie 70 front / Currie 70 rear.
  • Differential Vent:
    • Currie Enterprises
  • Driveshaft:
    • JE Reel Driveline
  • Fasteners:
    • JEEP - Stock Jeep JL.
  • Locker:
    • EATON - Eaton E-Lockers front and rear.
  • Locking Hubs:
    • Warn Industries, Inc.
  • Lubricants:
    • Torco
  • Ring/Pinion:
    • Motive Gear - 5.38 ratio.
  • Shifter:
    • JEEP - Stock Jeep JL.
  • Tires:
    • Nitto Tire U.S.A. Inc. - 40" x 13.50" x 17".
  • Transfer Case:
    • JEEP - Stock Jeep JL.
  • Transmission:
    • JEEP - Stock Jeep JL.
  • U Joints:
    • Spicer Drivetrain Products - 1350.
  • Wheels:
    • KMC Wheels - 17" x 9 1/2" x 4.5" backspace.
  • Yoke:
    • Spicer Drivetrain Products - 1350.

Engine

  • Alternator:
    • JEEP - Stock Jeep JL.
  • Block:
    • Mopar - Stock Jeep JL.
  • Brackets:
    • JEEP - Stock Jeep JL.
  • Cables:
    • JEEP - Stock Jeep JL.
  • Camshaft:
    • JEEP - Stock Jeep JL.
  • Catalytic Converter:
    • JEEP - Stock Jeep JL.
  • Catch Can:
    • JEEP - Stock Jeep JL.
  • Connecting Rods:
    • JEEP - Stock Jeep JL.
  • Cooling - Radiator:
    • JEEP - Stock Jeep JL.
  • Crankshaft:
    • JEEP - Stock Jeep JL.
  • Cylinder Heads:
    • JEEP - Stock Jeep JL.
  • Dipstick:
    • JEEP - Stock Jeep JL.
  • ECU:
    • JEEP - Stock Jeep JL.
  • Exhaust Components:
    • aFe Power - Stock Jeep JL exhaust with aFe Power Y-pipe.
  • Exhaust Mufflers:
    • JEEP - Stock Jeep JL.
  • Exhaust system:
    • JEEP - Stock Jeep JL.
  • Fan Shroud:
    • JEEP - Stock Jeep JL.
  • Fans:
    • JEEP - Stock Jeep JL.
  • Fasteners:
    • JEEP - Stock Jeep JL.
  • Filters:
    • JEEP - Stock Jeep JL.
  • Fuel Filler Neck:
    • JEEP - Stock Jeep JL.
  • Fuel Filter:
    • JEEP - Stock Jeep JL.
  • Fuel Injection:
    • JEEP - Stock Jeep JL.
  • Fuel Lines:
    • JEEP - Stock Jeep JL.
  • Fuel Management:
    • JEEP - Stock Jeep JL.
  • Fuel Pump:
    • JEEP - Stock Jeep JL.
  • Fuel Rails:
    • JEEP - Stock Jeep JL.
  • Fuel Regulator:
    • JEEP - Stock Jeep JL.
  • Gaskets:
    • JEEP - Stock Jeep JL.
  • Heat Barrier:
    • JEEP - Stock Jeep JL.
  • Hoses:
    • JEEP - Stock Jeep JL.
  • Ignition:
    • JEEP - Stock Jeep JL.
  • Ignition Coils:
    • JEEP - Stock Jeep JL.
  • Injectors:
    • JEEP - Stock Jeep JL.
  • Intake Manifold:
    • JEEP - Stock Jeep JL.
  • Lifters:
    • JEEP - Stock Jeep JL.
  • Lubricants:
    • Torco
  • Motor Mounts:
    • JEEP - Stock Jeep JL.
  • Oil Pan:
    • JEEP - Stock Jeep JL.
  • Oil Pump:
    • JEEP - Stock Jeep JL.
  • Overflow Tank:
    • JEEP - Stock Jeep JL.
  • Pistons:
    • JEEP - Stock Jeep JL.
  • Plumbing/Fittings:
    • JEEP - Stock Jeep JL.
  • Pulleys:
    • JEEP - Stock Jeep JL.
  • Pushrods:
    • JEEP - Stock Jeep JL.
  • Rings:
    • JEEP - Stock Jeep JL.
  • Rocker Arms:
    • JEEP - Stock Jeep JL.
  • Serpentine System:
    • JEEP - Stock Jeep JL.
  • Spark Plug Wires:
    • JEEP - Stock Jeep JL.
  • Spark Plugs:
    • JEEP - Stock Jeep JL.
  • Starter:
    • JEEP - Stock Jeep JL.
  • Surge Tank:
    • JEEP - Stock Jeep JL.
  • Throttle Body:
    • JEEP - Stock Jeep JL.
  • Timing Components:
    • JEEP - Stock Jeep JL.
  • Tuning:
    • JEEP - Stock Jeep JL.
  • Valve Covers:
    • JEEP - Stock Jeep JL.
  • Valve Springs:
    • JEEP - Stock Jeep JL.
  • Valves:
    • JEEP - Stock Jeep JL.
  • Water Pump:
    • JEEP - Stock Jeep JL.
  • Wiring Harness - Engine:
    • JEEP - Stock Jeep JL.

Exterior

  • Body Panels:
    • JEEP - Stock Jeep JL.
  • Bumpers:
    • CRC – Casey Currie
  • Door Handles:
    • JEEP - Stock Jeep JL.
  • Doors:
    • JEEP - Stock Jeep JL.
  • Emblems:
    • JEEP - Stock Jeep JL.
  • Fender Flares:
    • American Adventure Lab - High-line fender braces with daytime running lights.
  • Grille:
    • JEEP - Stock Jeep JL.
  • Headlights:
    • JEEP - Stock Jeep JL.
  • Hinges - Hood:
    • JEEP - Stock Jeep JL.
  • Hood:
    • JEEP - Stock Jeep JL.
  • Hood Latch:
    • JEEP - Stock Jeep JL.
  • Mirrors:
    • JEEP - Stock Jeep JL.
  • Paint & Primers:
    • JEEP - Stock Jeep JL.
  • Rock sliders:
    • CRC – Casey Currie
  • Tail Lights:
    • JEEP - Stock Jeep JL.
  • Trim:
    • JEEP - Stock Jeep JL.
  • Weather Stripping:
    • JEEP - Stock Jeep JL.
  • Windows:
    • JEEP - Stock Jeep JL.
  • Windshield Wipers:
    • JEEP - Stock Jeep JL.

Interior

  • Cage:
    • JEEP - Stock Jeep JL.
  • Carpeting:
    • JEEP - Stock Jeep JL.
  • Center Console:
    • JEEP - Stock Jeep JL.
  • Dash:
    • JEEP - Stock Jeep JL.
  • Door Handles:
    • JEEP - Stock Jeep JL.
  • Door Panels:
    • JEEP - Stock Jeep JL.
  • Floor Mats:
    • JEEP - Stock Jeep JL.
  • Gauges:
    • JEEP - Stock Jeep JL.
  • Harnesses/Belts:
    • JEEP - Stock Jeep JL.
  • Head Unit:
    • JEEP - Stock Jeep JL.
  • Heat & AC:
    • JEEP - Stock Jeep JL.
  • Lighting:
    • JEEP - Stock Jeep JL.
  • Navigation:
    • JEEP - Stock Jeep JL.
  • Pedal Assembly:
    • JEEP - Stock Jeep JL.
  • Pedals:
    • JEEP - Stock Jeep JL.
  • Power Windows:
    • JEEP - Stock Jeep JL.
  • Seat Covers:
    • JEEP - Stock Jeep JL.
  • Seats:
    • JEEP - Stock Jeep JL.
  • Shift Knob:
    • JEEP - Stock Jeep JL.
  • Speakers:
    • JEEP - Stock Jeep JL.
  • Steering Column:
    • JEEP - Stock Jeep JL.
  • Steering Wheel:
    • JEEP - Stock Jeep JL.
  • Switch Control:
    • Switch-Pros
  • Trim:
    • JEEP - Stock Jeep JL.
  • Upholstery:
    • JEEP - Stock Jeep JL.
  • Wiring:
    • JEEP - Stock Jeep JL.
  • Wiring Harness:
    • JEEP - Stock Jeep JL.
