1970 Chevrolet C-10 Pickup
FollowVehicle Quick Facts
Profile ID: 67260
Year: 1970
Make: Chevrolet
Model: C-10 Pickup
Markets: Performance, Pro Touring, Racing, Rod & Custom
Vehicle Type: American
Contact: Jeff Schmidt
Vehicle Story

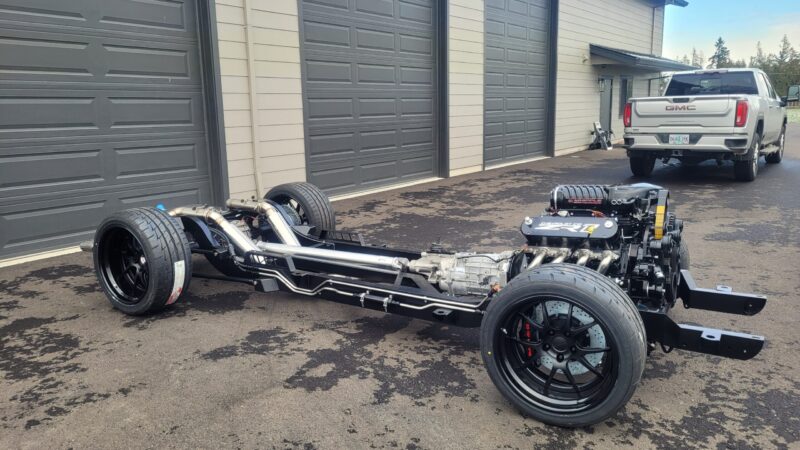

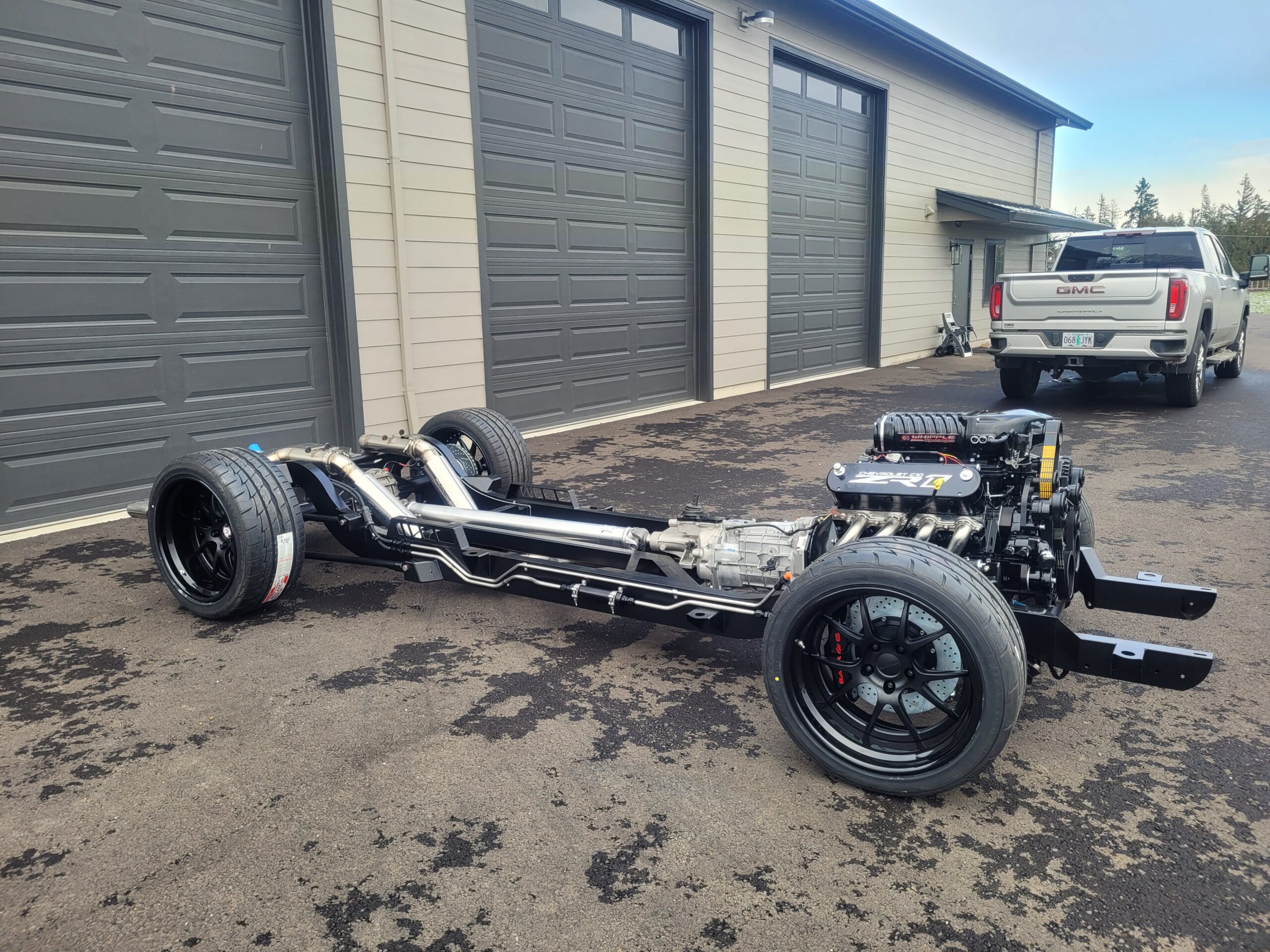

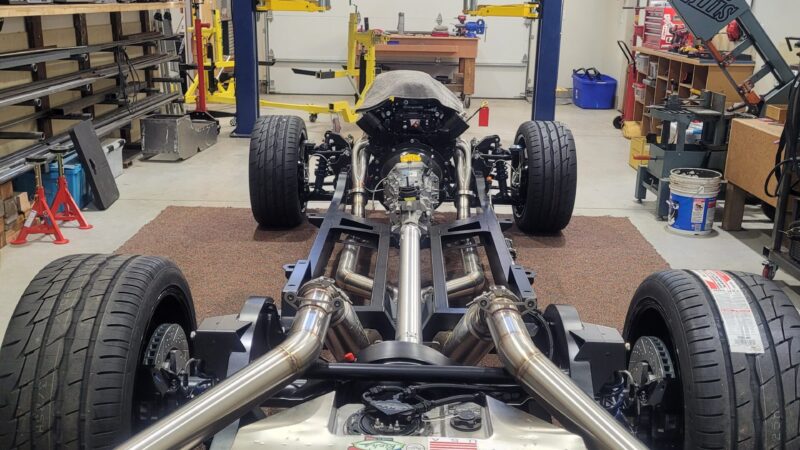

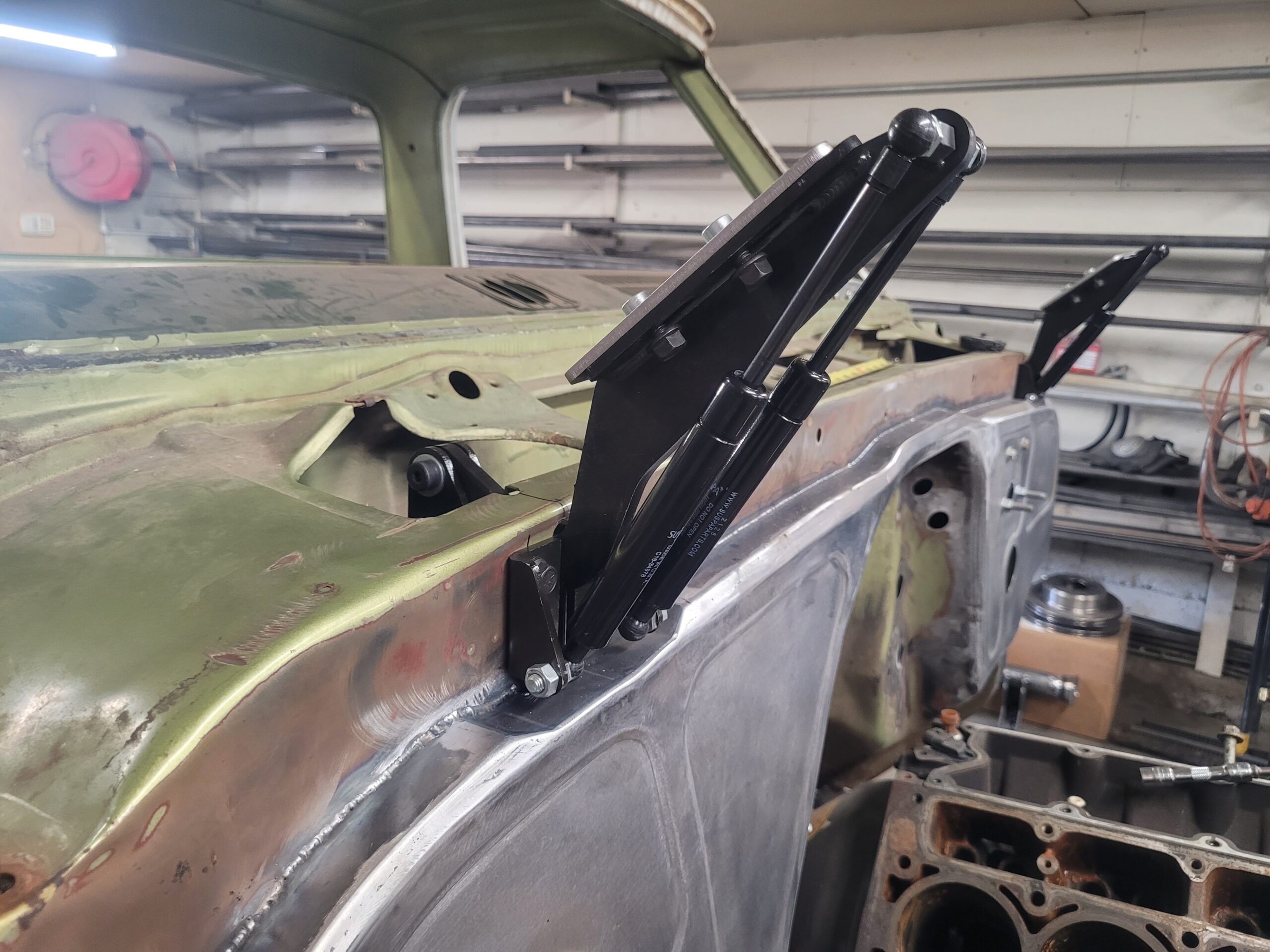

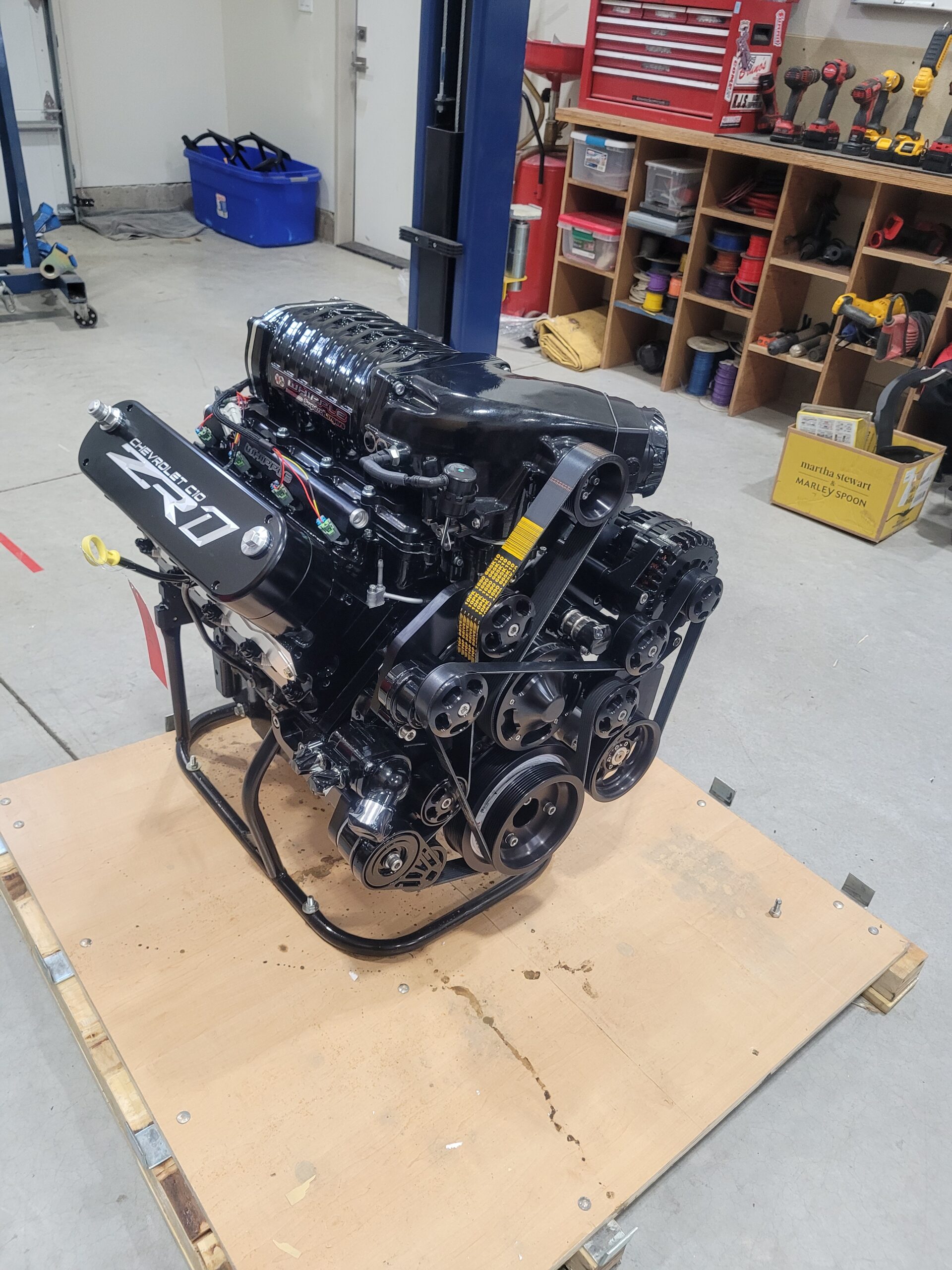

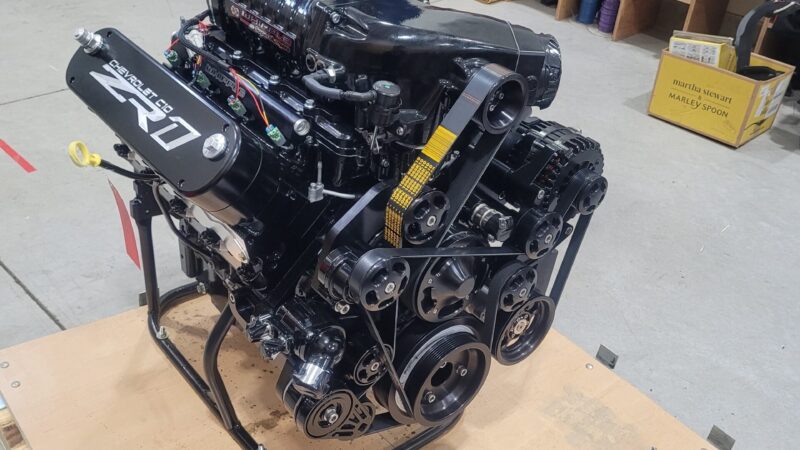

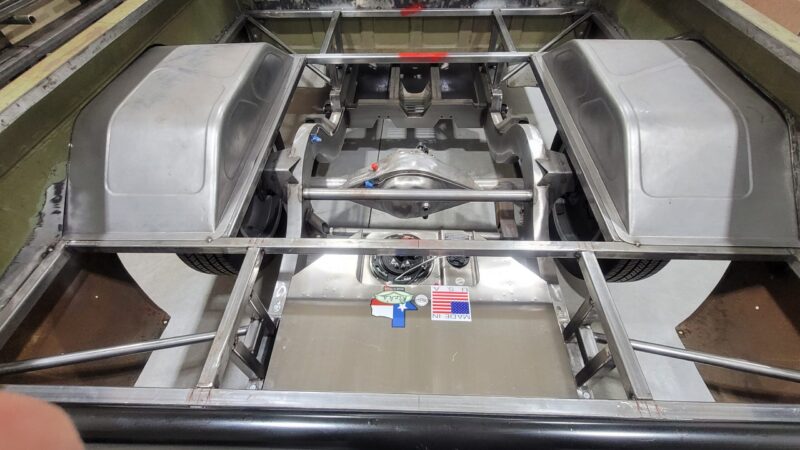

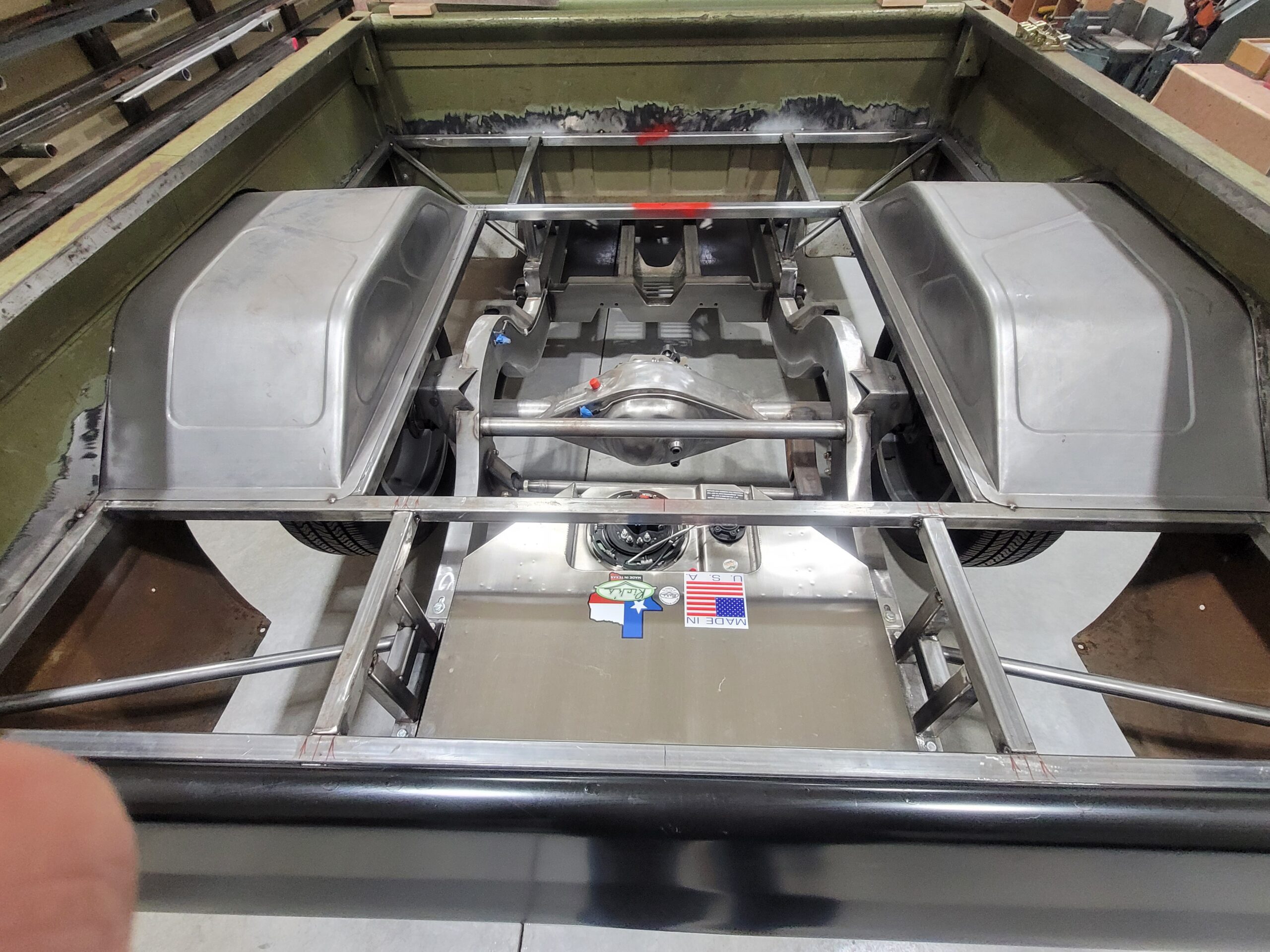

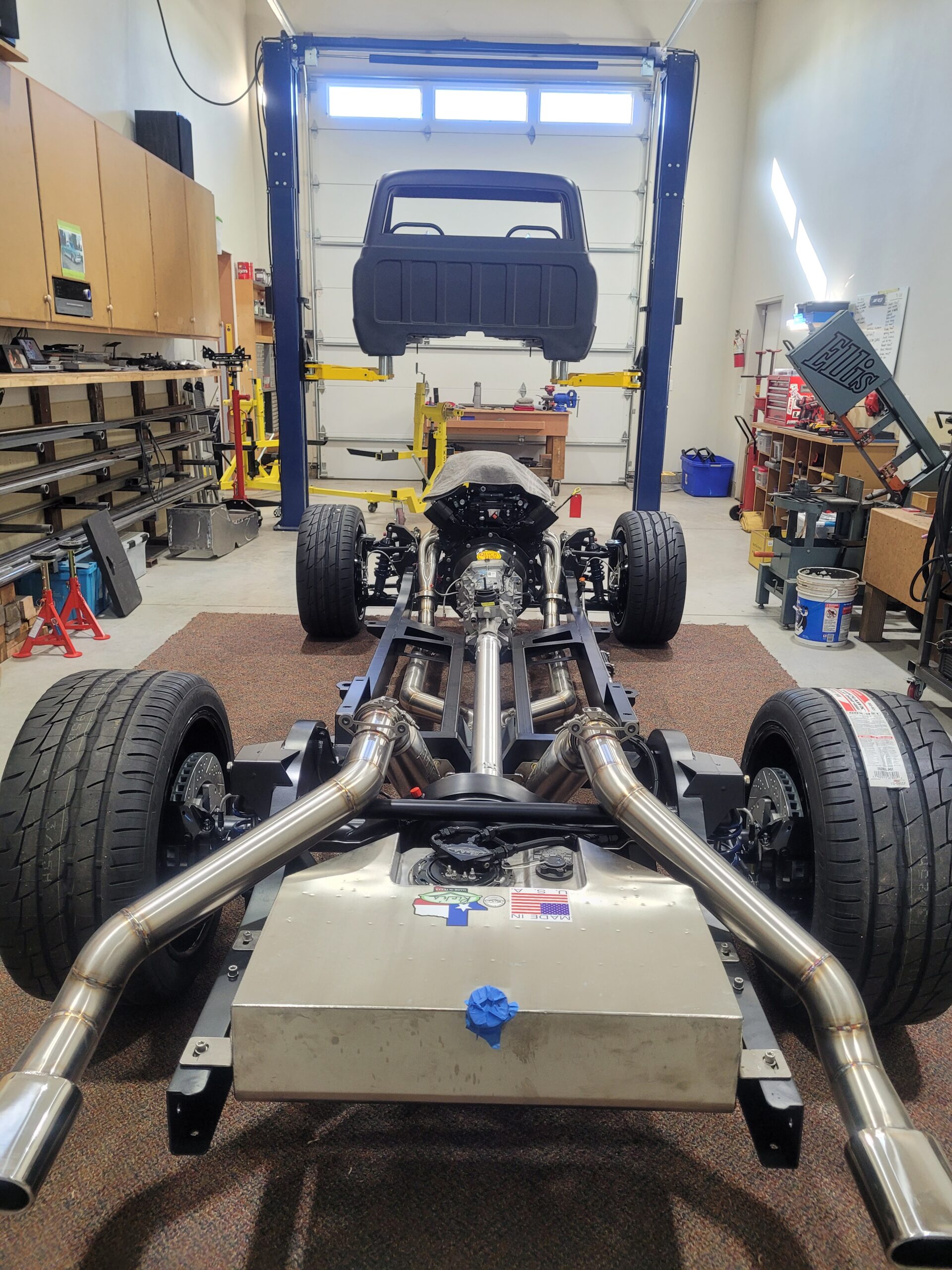

3 year home shop built pickup project. The pickup came out of Texas as a family owned dirt road running pickup truck. The project started with a Roadster Shop Fast Track Chassis with Baer 14" Extreme Brakes on 4 corners, Woodward Racing Rack, True Track center section with strange axles. Josh Hart supplied the front a rear inner fenders. Many hours in building a custom bed floor utilizing aluminum trailer decking. The Ls3 / Whipple 3.0 engine puts out 1075 hp and 975 lbs. tq. and was built by Wegner Automotive. Transferring that power back is a TREMEC 6 speed modified by Bowler Transmission. And all the power is put to the street on Forgeline Wheels and Firestone Rubber. The truck sits low and runs fast a real thrill of a drive.
Tech Sheet
Chassis
- Body Mounts:
Energy Suspension - Part Number 3.4108
- Brakes:
- Baer Brakes - Baer Extreme 14" Front & Rear Part # 4301109S-1X , 4302136B-1
- Cables:
- Lokar Performance Products - SKU EC-80FU
- Coilovers:
- Fox - RS SV Fox Shocks (Roadster Shop)
- E-Brake:
- Lokar Performance Products - SKU _EHB-7000F
- Frame:
- Roadster Shop - RS Fast Track Chassis
- Fuel Tank:
- Rick’s Tanks - Built to Fit Fast Track Chassis
- Master Cylinder:
- Wilwood Disc Brakes - 260-14959-BK
- Steering:
- IDIDIT, LLC. - Part#1140657051
Drivetrain
- Axle/CV shaft:
- Strange Engineering - Strange 31 Spline / Roadster Shop
- Bellhousing:
- Quick Time - Quick Time / Bowler Transmissions
- Bowler Performance
- Clutch Assembly:
- Bowler Performance - TILTON ST-246 TWIN DISC CLUTCH
- Tilton Engineering
- Clutch Master Cyl.:
- Tilton Engineering - TILTON 6000 SLIP-ON
- Differential:
- Strange Engineering - Strange / Roadster Shop
- Driveshaft:
- Inland Empire Driveline Service - Custom Aluminum
- Flywheel:
- Bowler Performance - CERAMETALLIC
- Tilton Engineering
- Lubricants:
- Torco
- Shifter:
- Throw out bearing:
- Tilton Engineering - BEARING, TILTON 6000 SLIP-ON
- Bowler Performance
- Tires:
- Firestone Tire - Firehawk Indy
- Transmission:
- TREMEC - T56 Magnum 6-speed / Stage 2 ZR1 Ratio
- Bowler Performance - Tansmission prep
- Wheels:
- Forgeline Motorsports - DE3C Concave (Center: Matte Black / Rim: Gloss Black)
Engine
- Adapters:
- Wegner Motorsports - Wegner Automotive Front Runner
- Air Cleaner:
- K&N Engineering, Inc. - Custom Flat Filters
- Battery:
- XSPower Batteries - 12V
- Crate Engine:
- Wegner Motorsports - LS3 / Whipple 3.0 1075 Hp / 975 Torque
- Dipstick:
- Lokar Performance Products - SKU XED-5040
- ECU:
- Holley Performance Products - Terminator Max X
- Exhaust Mufflers:
- Borla Performance - Part# 400822
- Fans:
- Spal Automotive USA - Wizard Cooling
- Fuel Filter:
- Aeromotive Inc. - Part Number: 12389
- Fuel Management:
- Holley Performance Products - Terminator Max X
- Fuel Pump:
- Rick’s Tanks - Dual In Tank High Volume
- Fuel Regulator:
- Aeromotive Inc. - Part Number: 13138
- Lubricants:
- Torco
- Serpentine System:
- Wegner Motorsports - Front Runner
- Spark Plugs:
- NGK Spark Plugs
- Super Charger:
- Whipple Superchargers - 3.0 Whipple
- Valve Covers:
- Wegner Motorsports - Custom 2 piece
Exterior
- Door Handles:
- Ringbrothers - Custom C10
- Windshield Wipers:
- RainGear Wiper Systems

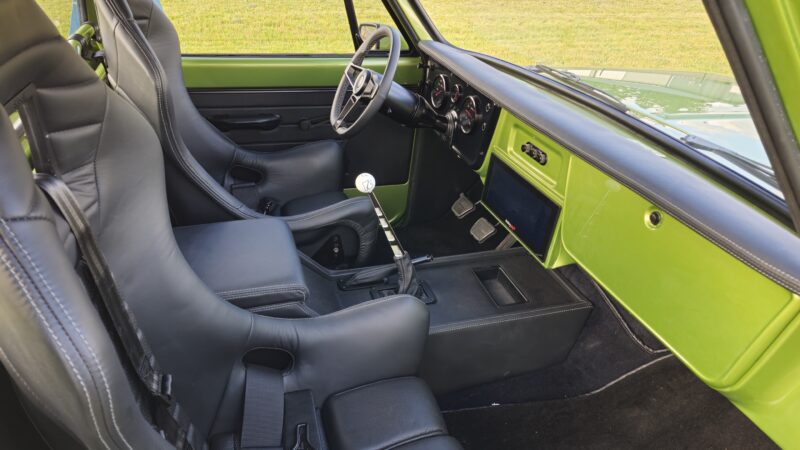

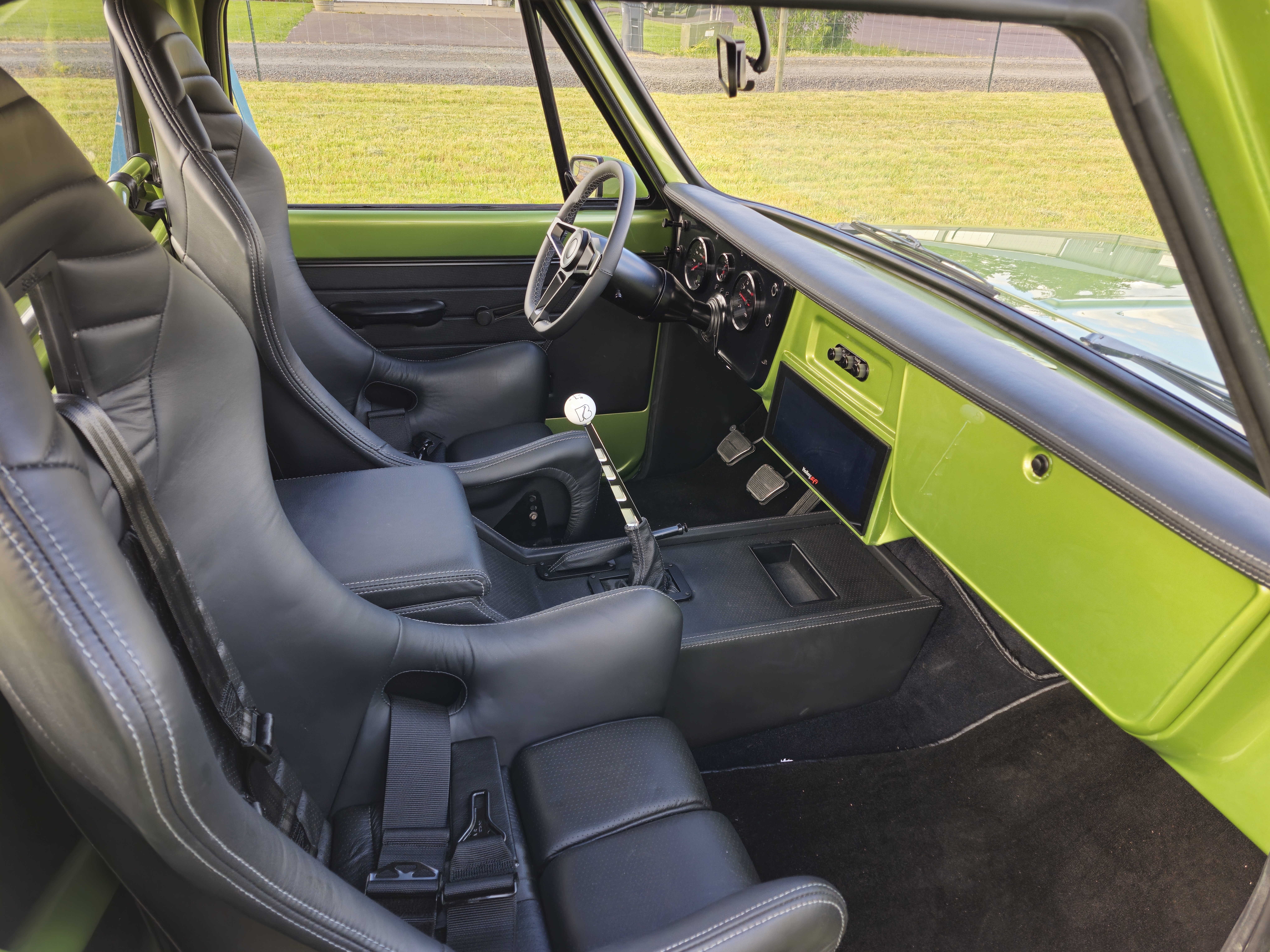

Interior
- Gauges:
- Holley Performance Products - Digital / Analog Style
- Harnesses/Belts:
- Sparco
- Heat & AC:
- Power Windows:
- Nu-Relics Power Windows
- Seats:
- Sabelt
- Sound Dampening:
- Dynamat Inc.
- Wiring:
- American Autowire - Hwy 22 Kit
Equipment & Supplies
- Welders:
- Lincoln Electric.us
Services
- Design:
- Street Rod Designs
- Renderings:
- Street Rod Designs
