2003 Jeep TJ – 2003 Jeep TJ – RockJock 4×4’s Helldorado Package

Vehicle Quick Facts

Profile ID: 70124
Year: 2003
Make: Jeep
Model: TJ
Markets: Off Road
Vehicle Type: American
Contact: RockJock 4×4 by John Currie

Loading

Advertisement

Vehicle Story

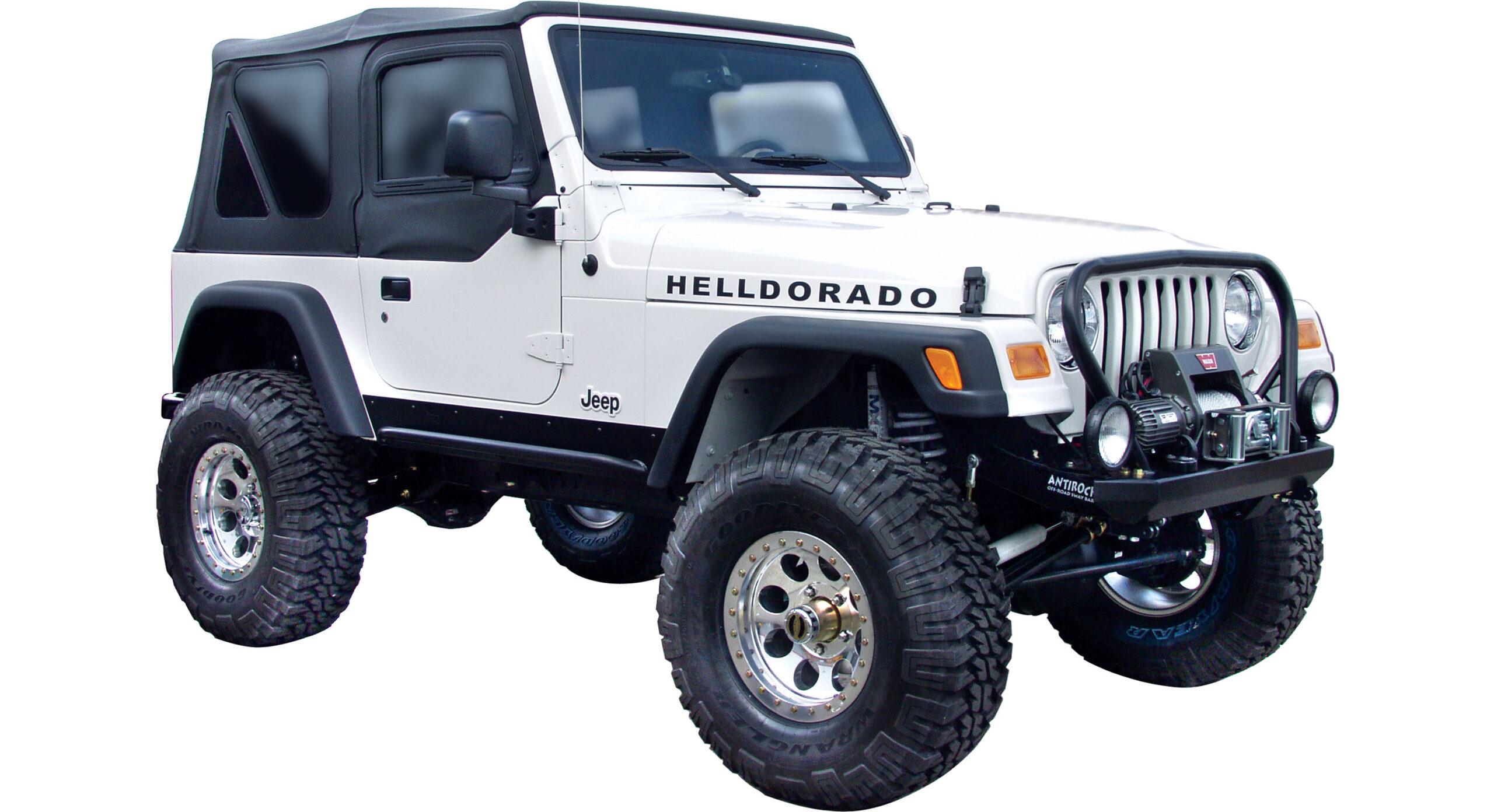

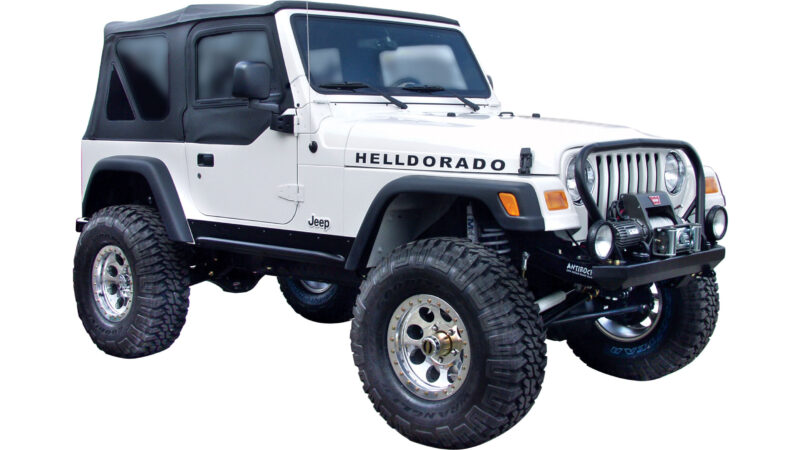

RockJock's 2003 Helldorado TJ started out as a stock 2003 Jeep TJ Rubicon and got the full treatment! RockJock was essentially assembly line building this spec. of TJ at this point in history, so they decided to stick a name on it! That name was the Helldorado package and it basically included every part RockJock made!

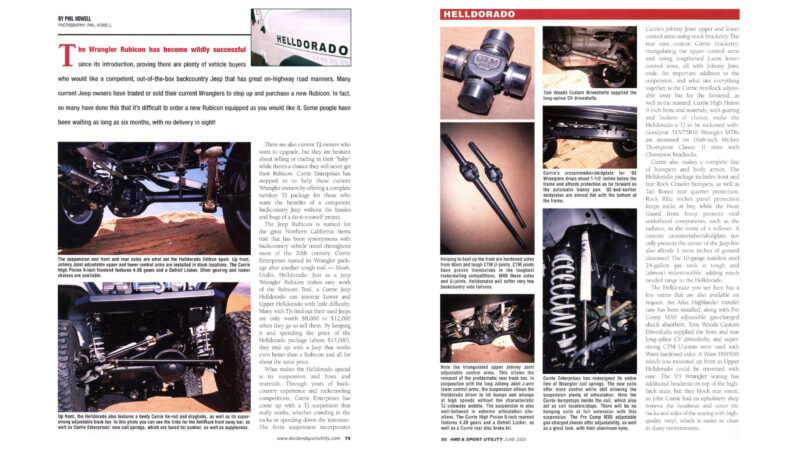

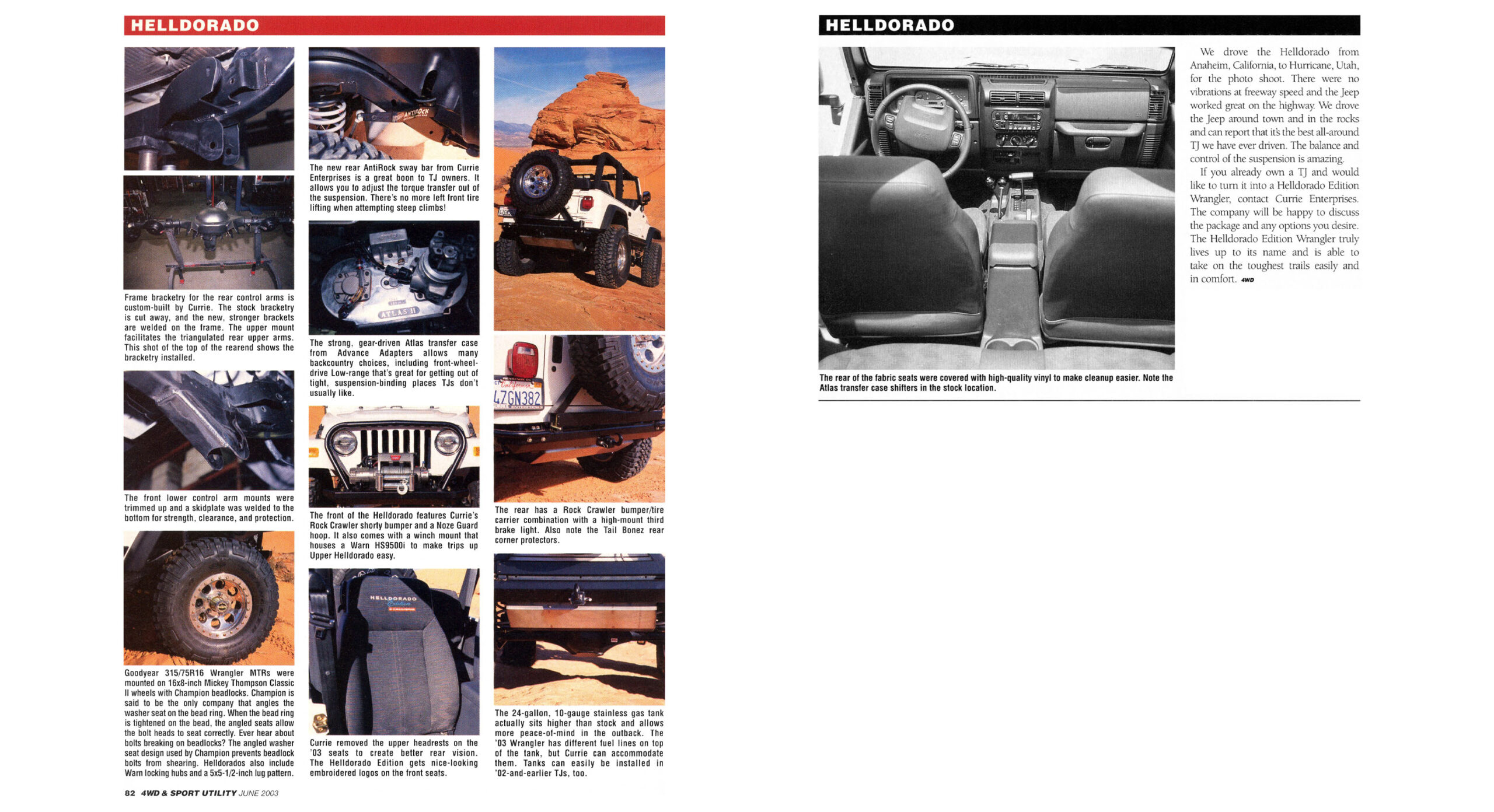

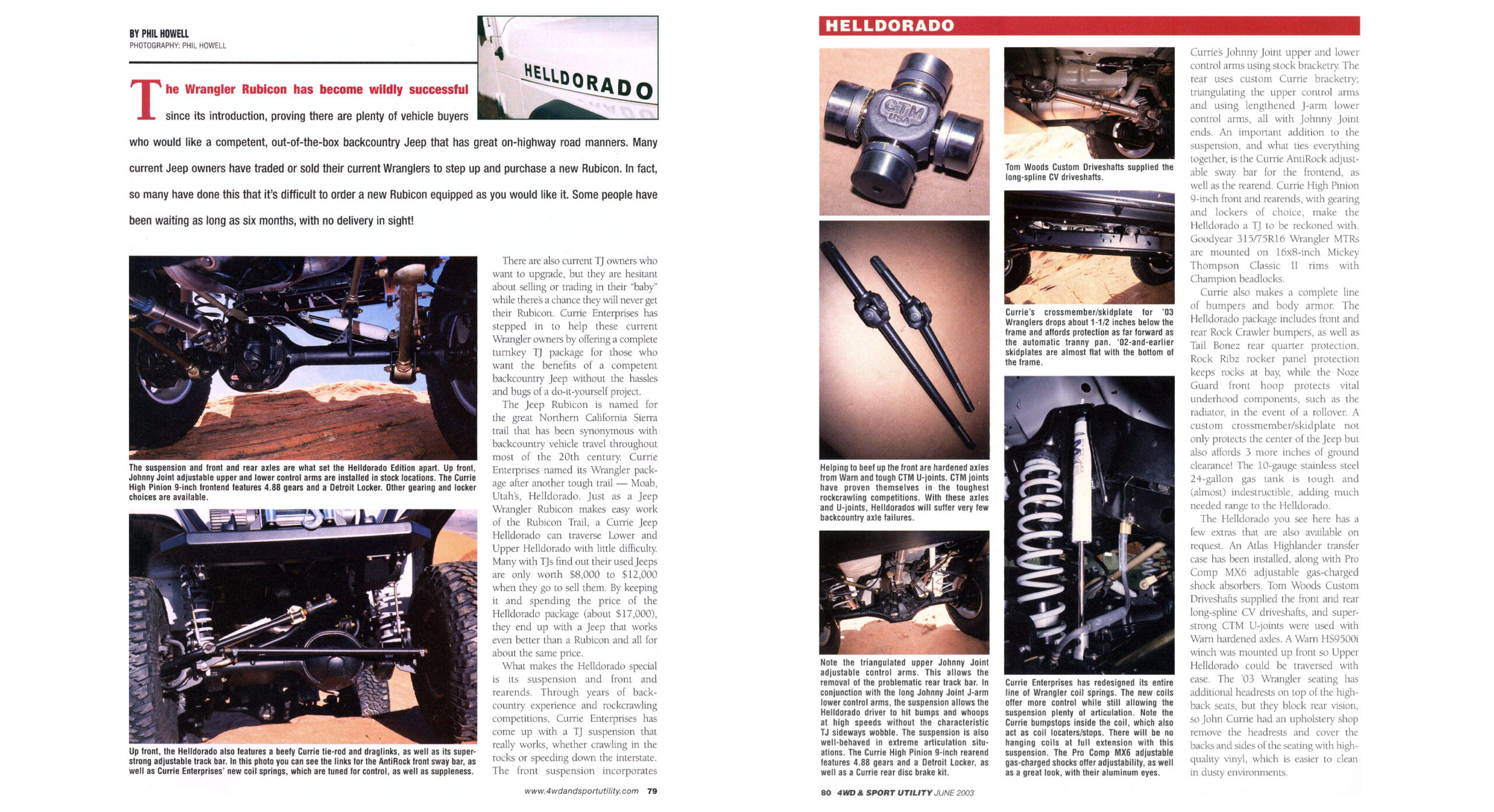

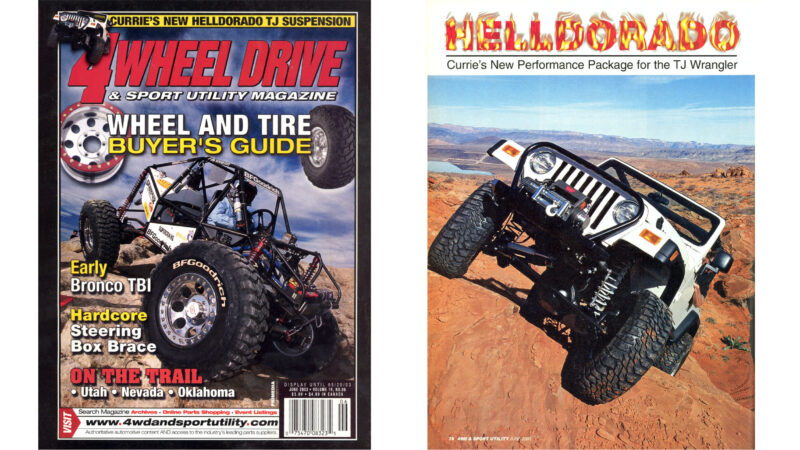

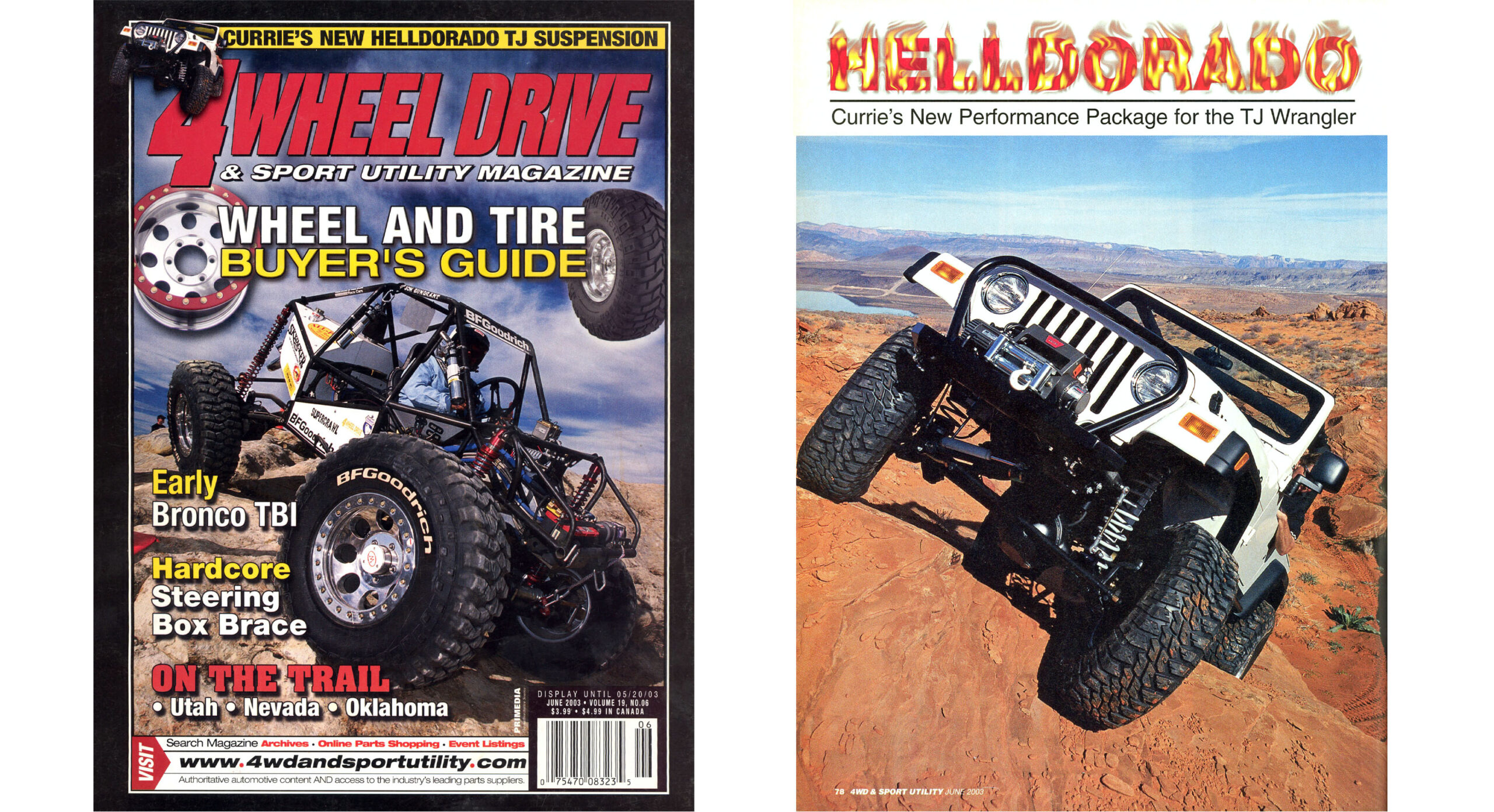

Read the full 4W&SU magazine article here in the photo gallery.

Tech Sheet

Chassis

  • Body Mounts:
  • Brackets:
    • RockJock 4×4 by John Currie - Front lower control arm brackets trimmed vertically & gusseted and rear upper control arm bracket gussets for triangulated rear suspension from RockJock 4x4, otherwise stock.
  • Brake booster:
    • JEEP - Stock Jeep TJ.
  • Brake Calipers:
    • JEEP - Stock Jeep TJ front.
    • Ford Motor Company - '98-'01 Ford Explorer rear.
  • Brake Pads:
    • JEEP - Stock Jeep TJ front.
    • Ford Motor Company - '98-'01 Ford Explorer rear.
  • Brake Rotors:
    • JEEP - Warn modified OD CJ front with 5 on 5 1/2" wheel bolt pattern.
    • Ford Motor Company - '98-'01 Ford Explorer rear, redrilled to 5 on 5 1/2" wheel bolt pattern.
  • Brakes:
    • JEEP - Front: stock Jeep TJ calipers with 11" Warn modified CJ rotors with 5 on 5 1/2" wheel bolt pattern for use with Warn 5 on 5 1/2" BP manual locking hub kit.
    • Ford Motor Company - Rear: '98-'01 Ford Explorer 11" disc with factory Ford calipers and internal parking brake.
  • Bump Stop:
  • Bushings:
  • Cables:
    • JEEP - Stock Rubicon rear parking brake cables (Rubicons had factory rear disc brakes).
  • Control Arms:
    • RockJock 4×4 by John Currie - Johnny Joint adjustable control arms with triangulated rear uppers and J-arm lowers from RockJock 4x4 (triangulated rear suspension option discontinued).
  • E-Brake:
    • Ford Performance Parts - '98-'01 Ford Explorer internal drum style (inside the rotor hat).
  • Fasteners:
    • JEEP - RockJock 4x4 on aftermarket components, otherwise stock.
  • Frame:
    • JEEP - Stock Jeep TJ.
  • Fuel Tank:
  • Gaskets:
    • Mopar - Stock Jeep TJ.
  • Links/Kits:
    • RockJock 4×4 by John Currie - Johnny Joint adjustable control arms with triangulated rear uppers and J-arm lowers from RockJock 4x4 (triangulated rear suspension option discontinued).
  • Master Cylinder:
    • JEEP - Stock Jeep TJ. Serrated o-ring removed from piston in stock proportioning valve to accommodate rear disc brakes.
  • Panhard Rod:
    • RockJock 4×4 by John Currie - Johnny Joint front adjustable from RockJock 4x4 (rear bars available, but this vehicle's triangulated suspension eliminated the rear bar).
  • Plumbing/Fittings/Hoses:
    • JEEP - Stock Jeep TJ.
  • Power Steering Pump:
    • JEEP - Stock Jeep TJ.
  • Power Steering Reservoir:
    • JEEP - Stock Jeep TJ.
  • Rod Ends:
  • Shocks:
    • Rancho Suspension - RS9000 adjustable from Rancho.
  • Skid Plates:
  • Springs:
  • Steering:
  • Steering Box:
    • JEEP - Stock Jeep TJ.
  • Suspension Kit:
    • RockJock 4×4 by John Currie - RJ-TJ0001-101 - 4" Johnny Joint Pro Edition Suspension Kit from RockJock 4x4 (with the exception of this vehicle featuring the discontinued triangulated rear control arms).
  • 4-Link:
    • RockJock 4×4 by John Currie - Johnny Joint adjustable control arms with triangulated rear uppers and J-arm lowers from RockJock 4x4 (triangulated rear control arms discontinued).
  • Sway Bars:
  • Winch:
    • Warn Industries, Inc. - HS9500i from Warn.

Drivetrain

  • Axle Housing:
    • Currie Enterprises - Front: high pinion 9" Ford, high clearance cut, skid plate installed, with TJ front suspension brackets installed from Currie Enterprises (discontinued).
    • Currie Enterprises - Rear: high pinion 9" Ford, high clearance cut, skid plate installed, with triangulated rear suspension brackets installed from Currie Enterprises (discontinued).
    • Currie Enterprises - Rear: was swapped to an aluminum RockJock 60 with triangulated rear suspension brackets installed from Currie Enterprises (discontinued).
  • Axle/CV shaft:
    • Currie Enterprises - Front: 31 spline chromoly inner axle shafts from Currie Enterprises with chromoly 27 spline outer shafts from Warn for use with manual hub kit.
  • Bearings:
    • The Timken Company - Timken throughout. Set 20 rear axle bearings.
  • Clutch Master Cyl.:
    • JEEP - Stock Jeep TJ.
  • Cooling - Auxiliary:
    • JEEP - Stock Jeep TJ.
  • Differential:
    • Currie Enterprises - Front: high pinion 9" Ford from Currie Enterprises (discontinued).
    • Currie Enterprises - Rear: high pinion 9" from Currie Enterprises. Rear was swapped to an aluminum RockJock 60 from Currie Enterprises (all discontinued).
  • Differential Cover:
    • Currie Enterprises - Rear: aluminum RockJock 60 featured an aluminum rear cover with carrier cap stabilizers from LPW.
  • Differential Vent:
    • Currie Enterprises - Brass nipple style with hoses running high up into the chassis to vent properly in any terrain (water crossings, etc.) from Currie Enterprises.
  • Driveshaft:
    • Tom Wood’s Custom Drive Shafts - Front: heavy duty to fit 1310 CV on high pinion 3rd. member from Tom Woods.
    • Tom Wood’s Custom Drive Shafts - Rear: heavy duty to fit 1310 CV yoke on RockJock 4x4 slip yoke eliminator kit at transfer case and 1310 CV to fit yoke at high pinion 3rd. member from Tom Woods.
    • Tom Wood’s Custom Drive Shafts - Rear: modified when aluminum RockJock 60 was installed to include 1310 CV yoke on RockJock 4x4 slip yoke eliminator kit at transfer case and 1350 u-joint to fit D60 yoke differential from Tom Woods.
  • Fasteners:
    • JEEP - RockJock 4x4 on aftermarket components, otherwise stock.
  • Flexplate:
    • JEEP - Stock Jeep TJ.
  • Locker:
    • EATON - Front: 31 spline Detroit locker from Eaton.
    • EATON - Rear: 31 spline Detroit locker (in the high pinion 9" Ford), 35 spline Detroit locker (in the aluminum RockJock 60) from Eaton.
  • Locking Hubs:
    • Warn Industries, Inc. - CJ style hub kit with 5 on 5 1/2" wheel bolt pattern, manual locking hubs and 27 spline chromoly axle shafts from Warn.
  • Lubricants:
    • Torco - Front & rear axle gear oil: 85-140W non-synthetic from Torco.
    • Torco - CE-9013G: all control arms, trac bars, steering joints use non-synthetic high moly lube from RockJock 4x4.
  • Ring/Pinion:
    • Motive Gear - Front: 4.30 ratio 8.8" high pinion (in automatic builds), 4.56 ratio 8.8" high pinion (in 6-speed stick shift builds).
    • Motive Gear - 9" Ford Rear: 4.30 ratio 8.8" high pinion (in automatic builds), 4.56 ratio 8.8" high pinion (in 6-speed stick shift builds).
    • Motive Gear - Aluminum RockJock 60 Rear: 4.30 ratio high pinion (in automatic builds), 4.56 ratio high pinion (in 6-speed stick shift builds).
  • Shifter:
    • JEEP - Stock Jeep TJ.
  • Tires:
    • Goodyear Tire - 315/75R-16 (~35") Wrangler MTR from GoodYear.
  • Torque Converter:
    • JEEP - Stock Jeep TJ.
  • Transfer Case:
    • Advance Adapters - 3.0 Atlas Highlander from Advance Adapters.
  • Transmission:
    • JEEP - Stock Jeep TJ automatic.
  • Transmission Cooler:
    • JEEP - Stock Jeep TJ.
    • JEEP - Stock Jeep TJ.
  • U Joints:
    • Spicer Drivetrain Products - CTM chromoly (Spicer 597X replacement size) front axle u-joints.
    • Spicer Drivetrain Products - 1310 drive shaft u-joints from Spicer.
    • Spicer Drivetrain Products - Rear was changed to when the axle was swapped to the aluminum RockJock 60 to a 1350 u-joint from Spicer.
  • Wheels:
    • MICKEY THOMPSON TIRES & WHEELS - 16" x 8" Mickey Thompson Classic IIs with Champion bead locks added.
  • Yoke:
    • Ford Motor Company - Front & rear high pinion 9" 3rd. members use high pinion 8.8" 1310 companion flange yoke.
    • Spicer Drivetrain Products - When the rear was upgraded to the aluminum RockJock 60, a 1350 yoke was used from Spicer.

Engine

  • Accessories:
    • JEEP - Stock Jeep TJ.
  • Air Cleaner:
    • JEEP - Stock Jeep TJ.
  • Alternator:
    • JEEP - Stock Jeep TJ.
  • Block:
    • JEEP - Stock Jeep TJ.
  • Brackets:
    • JEEP - Stock Jeep TJ.
  • Cables:
    • JEEP - Stock Jeep TJ.
  • Camshaft:
    • JEEP - Stock Jeep TJ.
  • Catalytic Converter:
    • JEEP - Stock Jeep TJ.
  • Catch Can:
    • JEEP - Stock Jeep TJ.
  • Connecting Rods:
    • JEEP - Stock Jeep TJ.
  • Cooling - Radiator:
    • JEEP - Stock Jeep TJ.
  • Crankshaft:
    • JEEP - Stock Jeep TJ.
  • Cylinder Heads:
    • JEEP - Stock Jeep TJ.
  • Dipstick:
    • JEEP - Stock Jeep TJ.
  • ECU:
    • JEEP - Stock Jeep TJ.
  • Exhaust Mufflers:
    • JEEP - Stock Jeep TJ.
  • Exhaust system:
  • Fan Shroud:
    • JEEP - Stock Jeep TJ.
  • Fans:
    • JEEP - Stock Jeep TJ.
  • Fasteners:
    • JEEP - Stock Jeep TJ.
  • Filters:
    • JEEP - Stock Jeep TJ.
  • Fuel Filler Neck:
    • JEEP - Stock Jeep TJ.
  • Fuel Filter:
    • JEEP - Stock Jeep TJ.
  • Fuel Injection:
    • JEEP - Stock Jeep TJ.
  • Fuel Lines:
    • JEEP - Stock Jeep TJ.
  • Fuel Management:
    • JEEP - Stock Jeep TJ.
  • Fuel Pump:
    • JEEP - Stock Jeep TJ.
  • Fuel Rails:
    • JEEP - Stock Jeep TJ.
  • Fuel Regulator:
    • JEEP - Stock Jeep TJ.
  • Gaskets:
    • JEEP - Stock Jeep TJ.
  • Heat Barrier:
    • JEEP - Stock Jeep TJ.
  • Hoses:
    • JEEP - Stock Jeep TJ.
  • Ignition:
    • JEEP - Stock Jeep TJ.
  • Ignition Coils:
    • JEEP - Stock Jeep TJ.
  • Injectors:
    • JEEP - Stock Jeep TJ.
  • Intake Manifold:
    • JEEP - Stock Jeep TJ.
  • Lifters:
    • JEEP - Stock Jeep TJ.
  • Lubricants:
    • Torco
  • Motor Mounts:
  • Oil Pan:
    • JEEP - Stock Jeep TJ.
  • Oil Pump:
    • JEEP - Stock Jeep TJ.
  • Overflow Tank:
    • JEEP - Stock Jeep TJ.
  • Pistons:
    • JEEP - Stock Jeep TJ.
  • Plumbing/Fittings:
    • JEEP - Stock Jeep TJ.
  • Pulleys:
    • JEEP - Stock Jeep TJ.
  • Pushrods:
    • JEEP - Stock Jeep TJ.
  • Rings:
    • JEEP - Stock Jeep TJ.
  • Rocker Arms:
    • JEEP - Stock Jeep TJ.
  • Serpentine System:
    • JEEP - Stock Jeep TJ.
  • Spark Plug Wires:
    • JEEP - Stock Jeep TJ.
  • Spark Plugs:
    • JEEP - Stock Jeep TJ.
  • Starter:
    • JEEP - Stock Jeep TJ.
  • Surge Tank:
    • JEEP - Stock Jeep TJ.
  • Throttle Body:
    • JEEP - Stock Jeep TJ.
  • Timing Components:
    • JEEP - Stock Jeep TJ.
  • Tuning:
    • JEEP - Stock Jeep TJ.
  • Valve Covers:
    • JEEP - Stock Jeep TJ.
  • Water Pump:
    • JEEP - Stock Jeep TJ.
  • Wiring Harness - Engine:
    • JEEP - Stock Jeep TJ.

Exterior

  • Body Armor:
  • Body Panels:
    • JEEP - Stock Jeep TJ.
  • Bumpers:
    • RockJock 4×4 by John Currie - Front: RockCrawler II "shorty" bumper from RockJock 4x4 with Noze Guard grille hoop (discontinued).

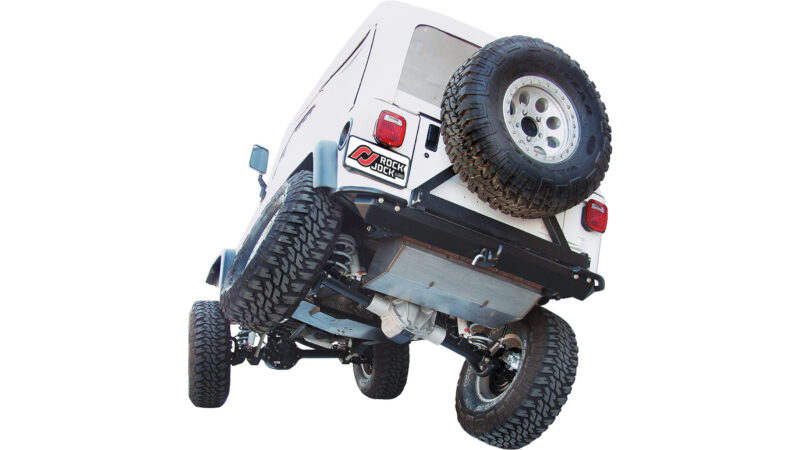

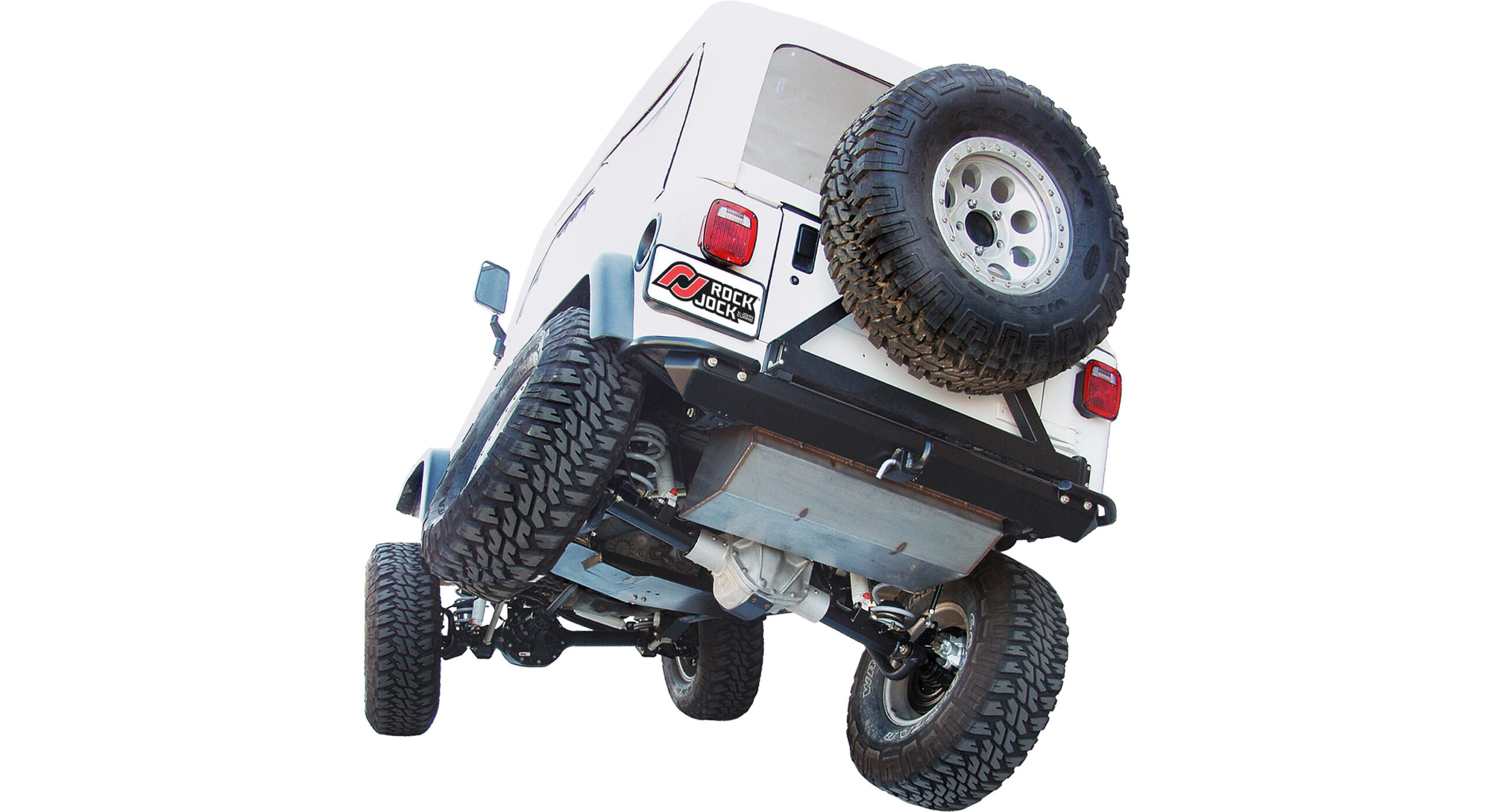

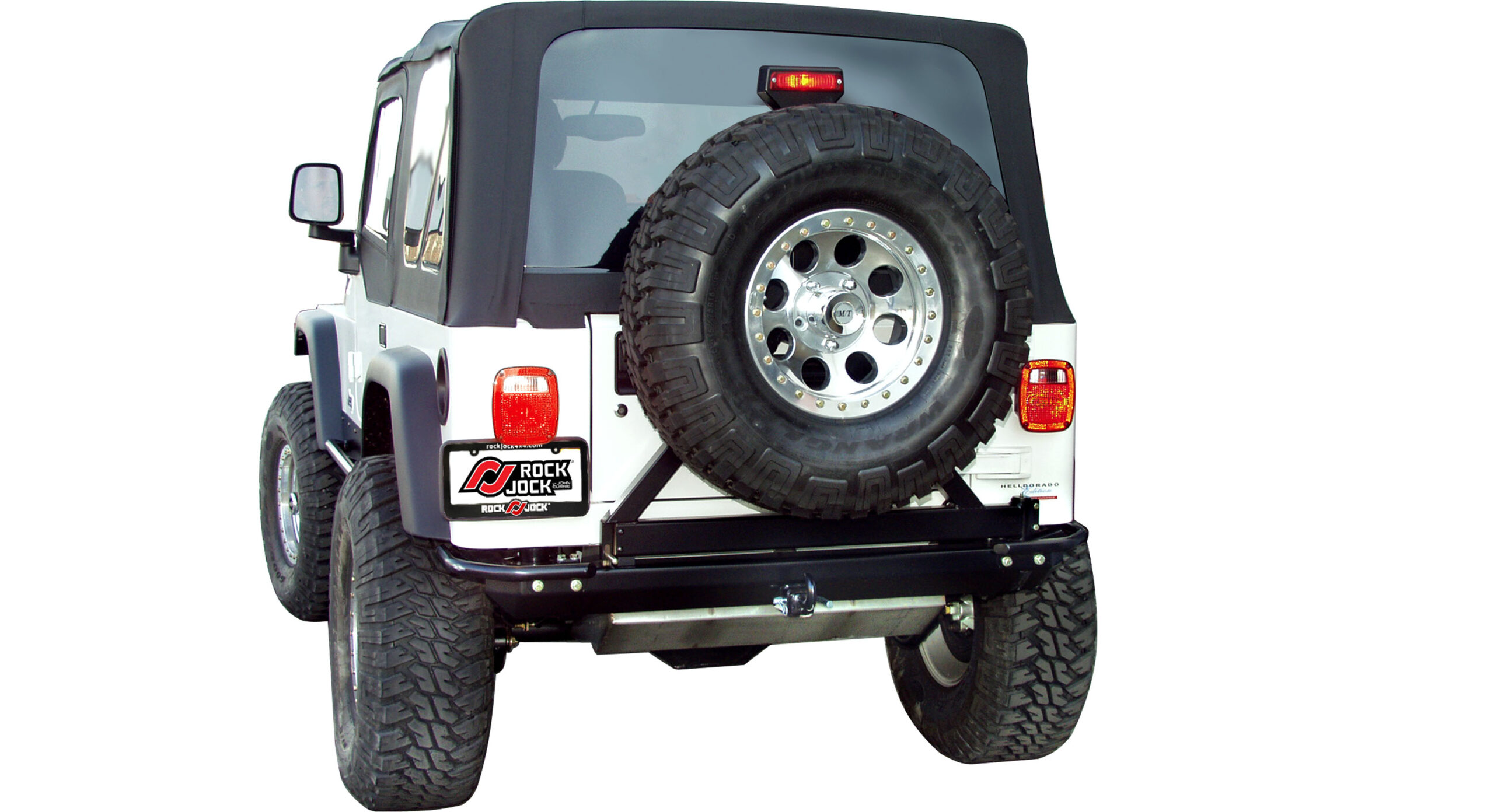

    • RockJock 4×4 by John Currie - Rear: RockCrawler II bumper with swing away tire carrier and high mount 3rd. brake light from RockJock 4x4 (discontinued).
  • Convertible Top:
    • JEEP - Stock Jeep TJ.
  • Door Handles:
    • JEEP - Stock Jeep TJ.
  • Doors:
    • JEEP - Stock Jeep TJ.
  • Emblems:
    • JEEP - Stock Jeep TJ.
  • Fender Flares:
    • JEEP - Stock Jeep TJ.
  • Grille:
    • JEEP - Stock Jeep TJ.
  • Headlights:
    • JEEP - Stock Jeep TJ.
  • Hinges - Hood:
    • JEEP - Stock Jeep TJ.
  • Hood:
    • JEEP - Stock Jeep TJ.
  • Hood Latch:
    • JEEP - Stock Jeep TJ.
  • Mirrors:
    • JEEP - Stock Jeep TJ.
  • Paint & Primers:
    • JEEP - Stock Jeep TJ.
  • Rock sliders:
  • Tail Lights:
    • JEEP - Stock Jeep TJ.
  • Tire Carrier:
  • Trim:
    • JEEP - Stock Jeep TJ.
  • Weather Stripping:
    • JEEP - Stock Jeep TJ.
  • Windows:
    • JEEP - Stock Jeep TJ.
  • Windshield Wipers:
    • JEEP - Stock Jeep TJ.

Interior

  • Cage:
    • JEEP - Stock Jeep TJ.
  • Carpeting:
    • JEEP - Stock Jeep TJ.
  • Center Console:
    • JEEP - Stock Jeep TJ.
  • Dash:
    • JEEP - Stock Jeep TJ.
  • Door Handles:
    • JEEP - Stock Jeep TJ.
  • Door Panels:
    • JEEP - Stock Jeep TJ.
  • Floor Mats:
    • JEEP - Stock Jeep TJ.
  • Gauges:
    • JEEP - Stock Jeep TJ.
  • Harnesses/Belts:
    • JEEP - Stock Jeep TJ.
  • Head Unit:
    • JEEP - Stock Jeep TJ.
  • Heat & AC:
    • JEEP - Stock Jeep TJ.
  • Lighting:
    • JEEP - Stock Jeep TJ.
  • Pedal Assembly:
    • JEEP - Stock Jeep TJ.
  • Pedals:
    • JEEP - Stock Jeep TJ.
  • Power Windows:
    • JEEP - Stock Jeep TJ.
  • Seat Covers:
    • JEEP - Stock Jeep TJ.
  • Seats:
    • JEEP - Stock Jeep TJ.
  • Shift Knob:
    • JEEP - Stock Jeep TJ.
  • Speakers:
    • JEEP - Stock Jeep TJ.
  • Steering Column:
    • JEEP - Stock Jeep TJ.
  • Steering Wheel:
    • JEEP - Stock Jeep TJ.
  • Trim:
    • JEEP - Stock Jeep TJ.
  • Upholstery:
    • JEEP - Stock Jeep TJ.
  • Wiring:
    • JEEP - Stock Jeep TJ.
  • Wiring Harness:
    • JEEP - Stock Jeep TJ.
