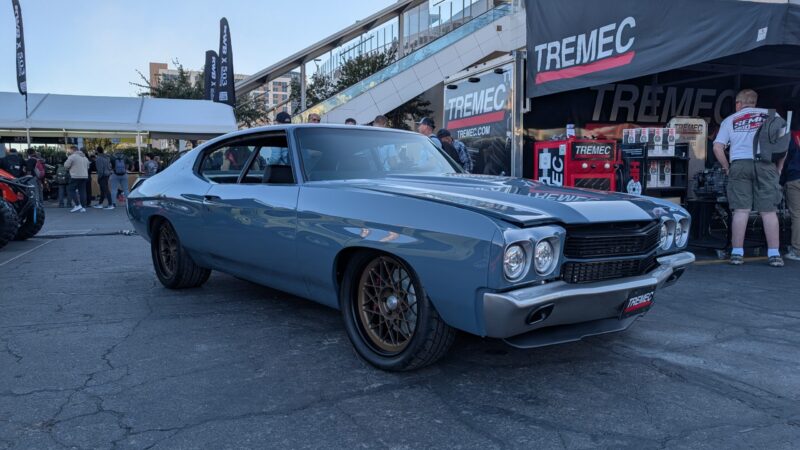

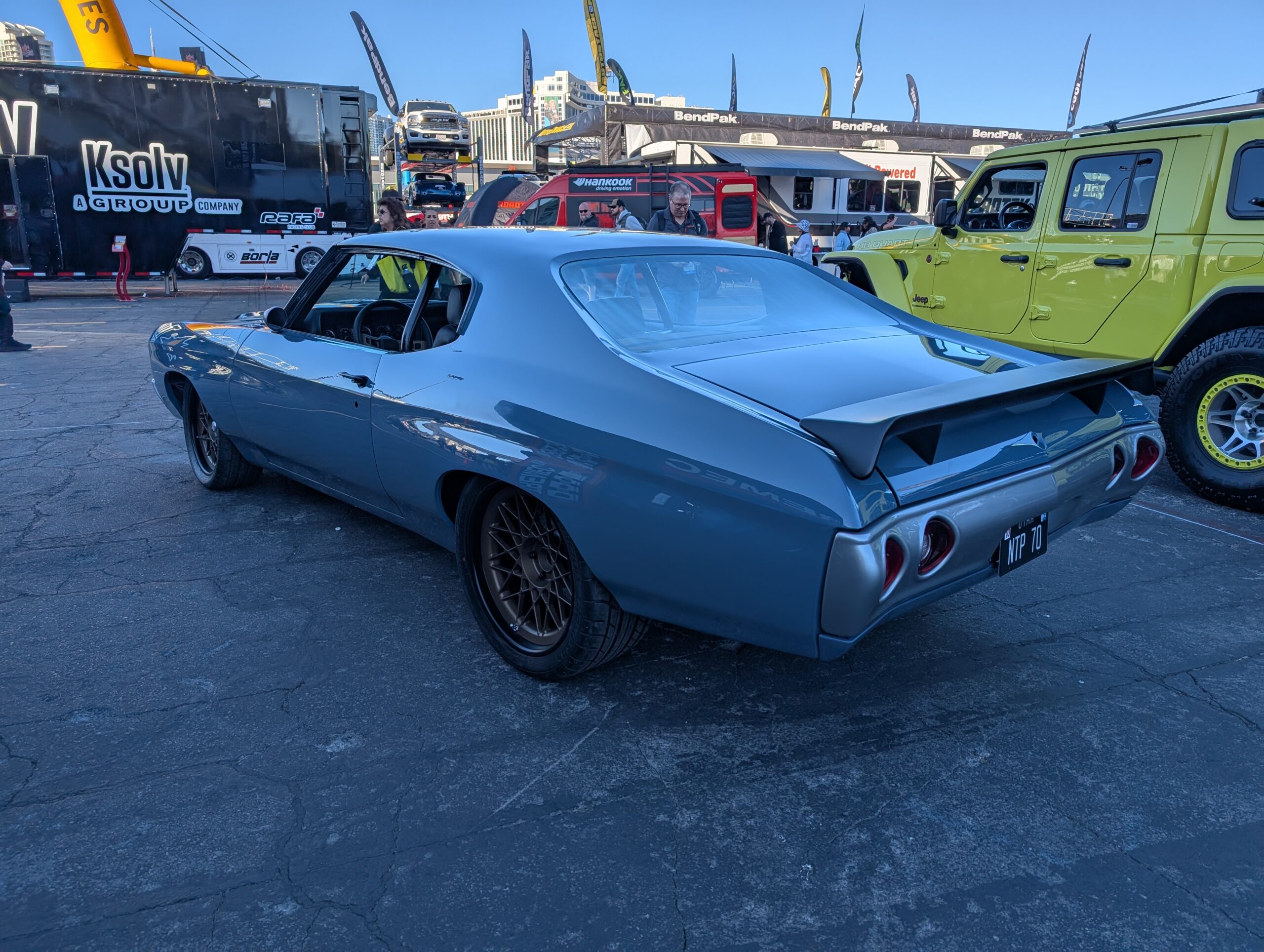

NTP- Chevelle

Vehicle Quick Facts

Profile ID: 64076
Year: 1970
Make: Chevrolet
Model: Chevelle
Markets: Muscle Car, Pro Touring, Resto-Mod
Vehicle Type: American
Contact: CBN company profile

Loading

Advertisement

Vehicle Story

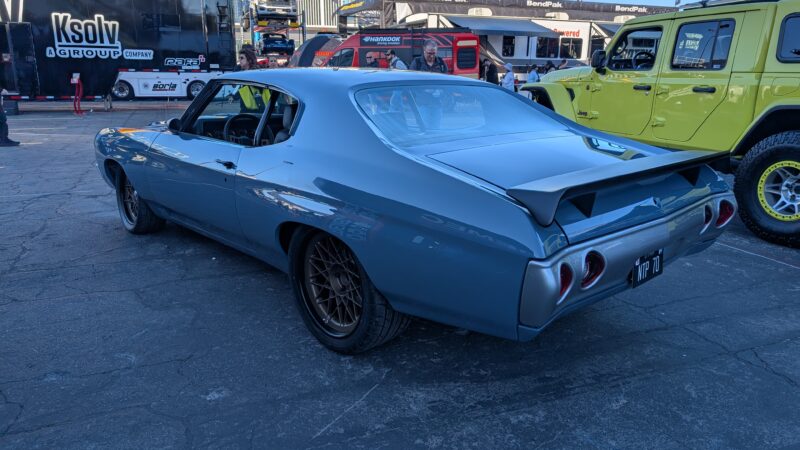

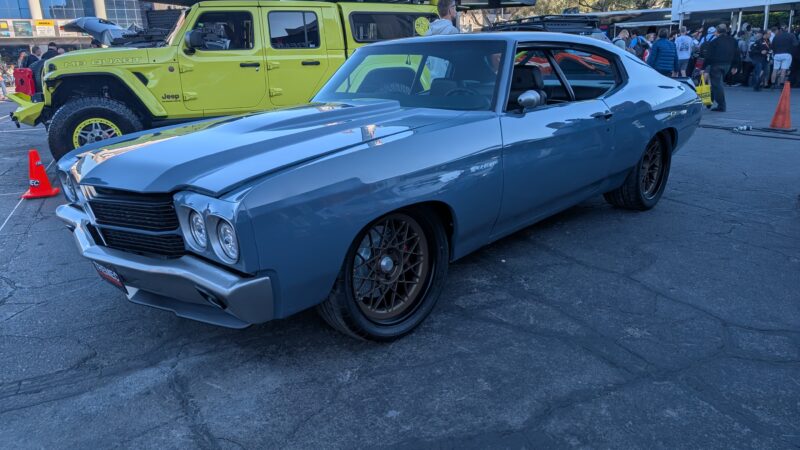

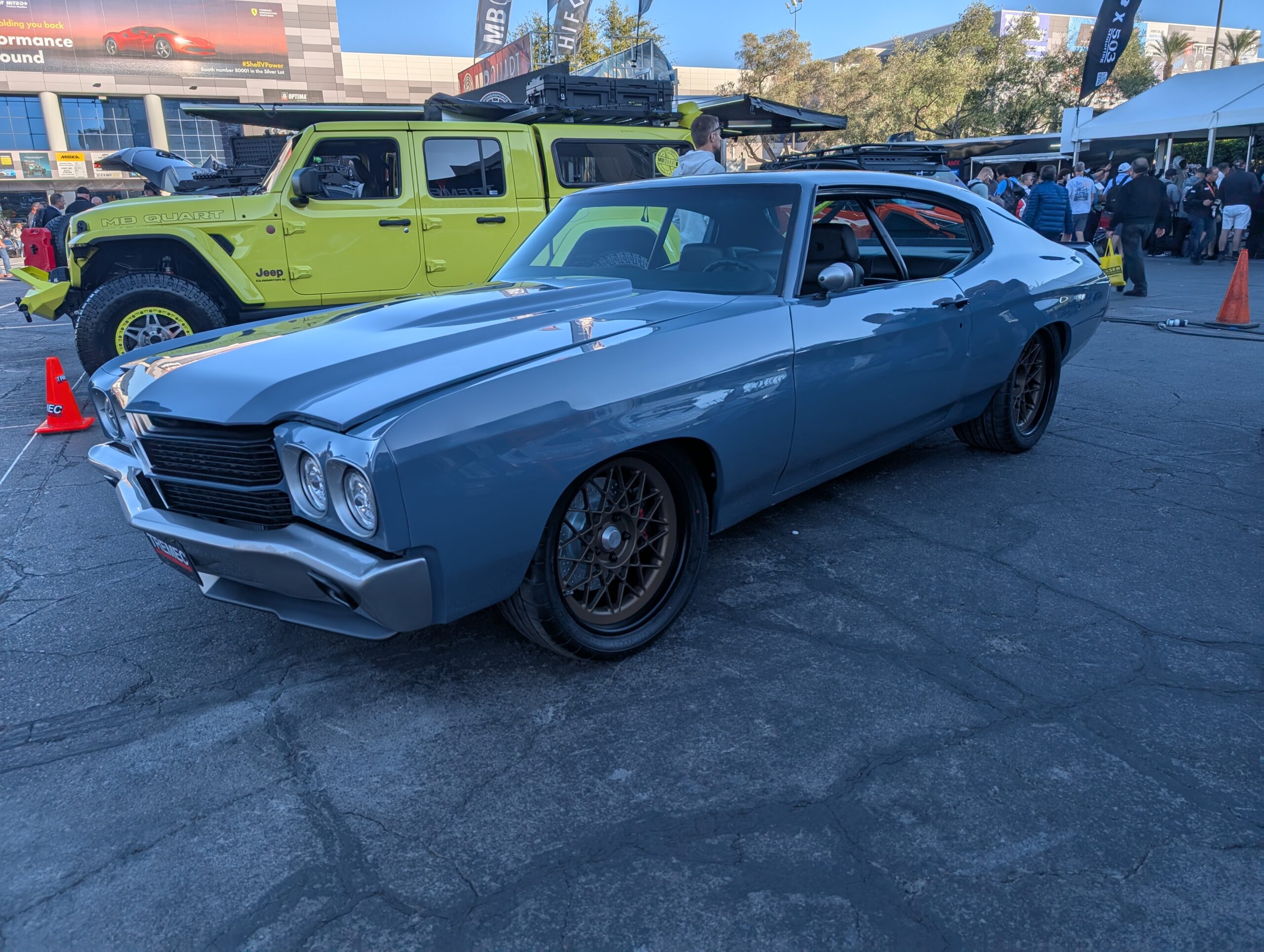

NTP Chevelle… Like many of these projects, it started as a casual conversation between a father and son. “If we were to build a car together, what would it be?”

Since he was young, Spencer Campbell had a passion for cars...

Spencer -- I was probably 12 when my dad let me get my first go-kart. I modified it and made it faster than we probably should have, mom had no idea what we were up to. We’ve probably all had somewhat similar introductions to this love of automobiles. Growing up, we had some fun cars in high school, and I helped my dad build a 350 sbc motor for one of them. That’s when my passion for cars started. When my son Sawyer entered high school, I started asking him if he were to build a car with me, what would it be. I didn’t get an answer until he took a shop class in his junior year of high school. He started talking to his friends about cars and one day he came home and said, “I know what I want to build, a 1970 Chevelle". I had a Model A on my mind, a ‘68 Chevy stepside truck, Corvettes, but never a Chevelle. I didn’t question him, I started looking immediately for the car and found it in January of 2020. A few months later, covid started taking its toll and before we knew it, we parked it in a trailer and it sat for the next 3 years.

Fast forward to SEMA 2022, we decided to ask a few friends if they would be interested in building a Chevelle. We initially got the expected response… Let’s not just build another Chevelle. In the past few years, some very nice Chevelles have been unveiled at SEMA. We wanted to be careful not to just build another Chevelle. Also in 2022, we took a 1979 Wagoneer to SEMA. It was modified in every way you can think of, but we left the body lines stock. That can be difficult to do when you have 67 companies involved. We love looking at builds that have modifications most people don’t notice. It takes collaboration with the right people to pull it off. We are grateful to be associated with a group like this. We have a core group of “gear heads” we like to kick ideas around with. Our conversations on design usually start with Dom Tucci Design. We’ve known Dom and his dad Dave from Tucci Hot Rods for probably 15 years and they are some of the most talented guys in the business. Zac Zamudio from Pyramid Optimized and Matt Zurbrick from 5 O’clock Garage were instrumental in the Wagoneer Build. Rob and Nate Staker from Resurgence did most of the work on the Wagoneer and decided to join us again on the Chevelle.

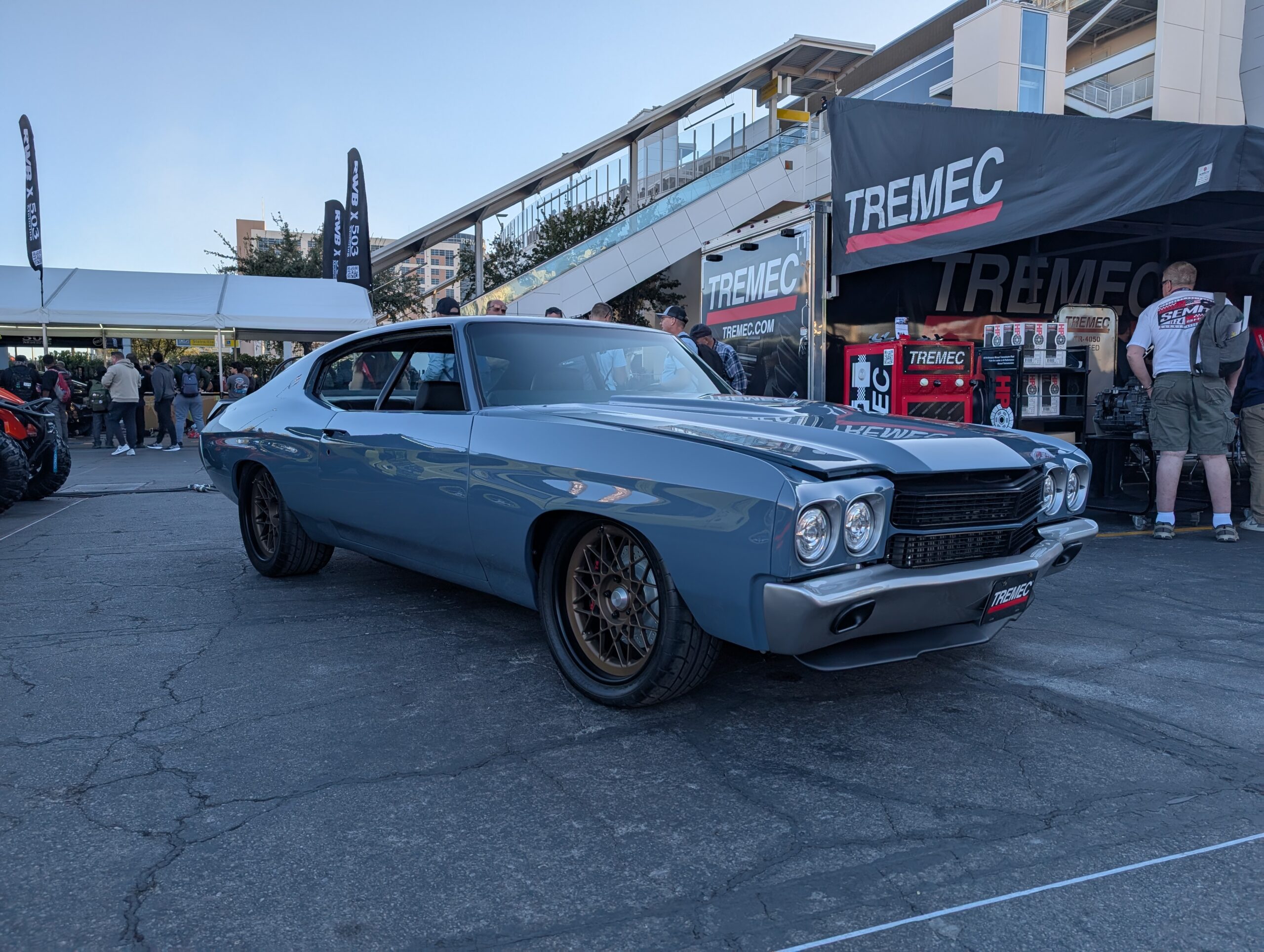

At Dom's suggestion, we decided to pay tribute to the Trans AM racing era. Mike Kidd from TREMEC was an integral partner on the Wagoneer build. As we were discussing this new project with Mike, he suggested we talk with Johnny at BluePrint Engines. Johnny told us about the 427 iron block they were coming out with and thought this build would be perfect to debut the new crate engine. As the project gained momentum, we reached out to Karen at ProCharger and they decided to join the build. Before we knew it, we had a full track suspension from UMI, big brakes from BAER, new sheet metal from AMD, BASF paint, fuel and exhaust system form Aeromotive Group, the good stuff from Lokar, and the list goes on. This tech sheet is full of some of the best brands in the business.

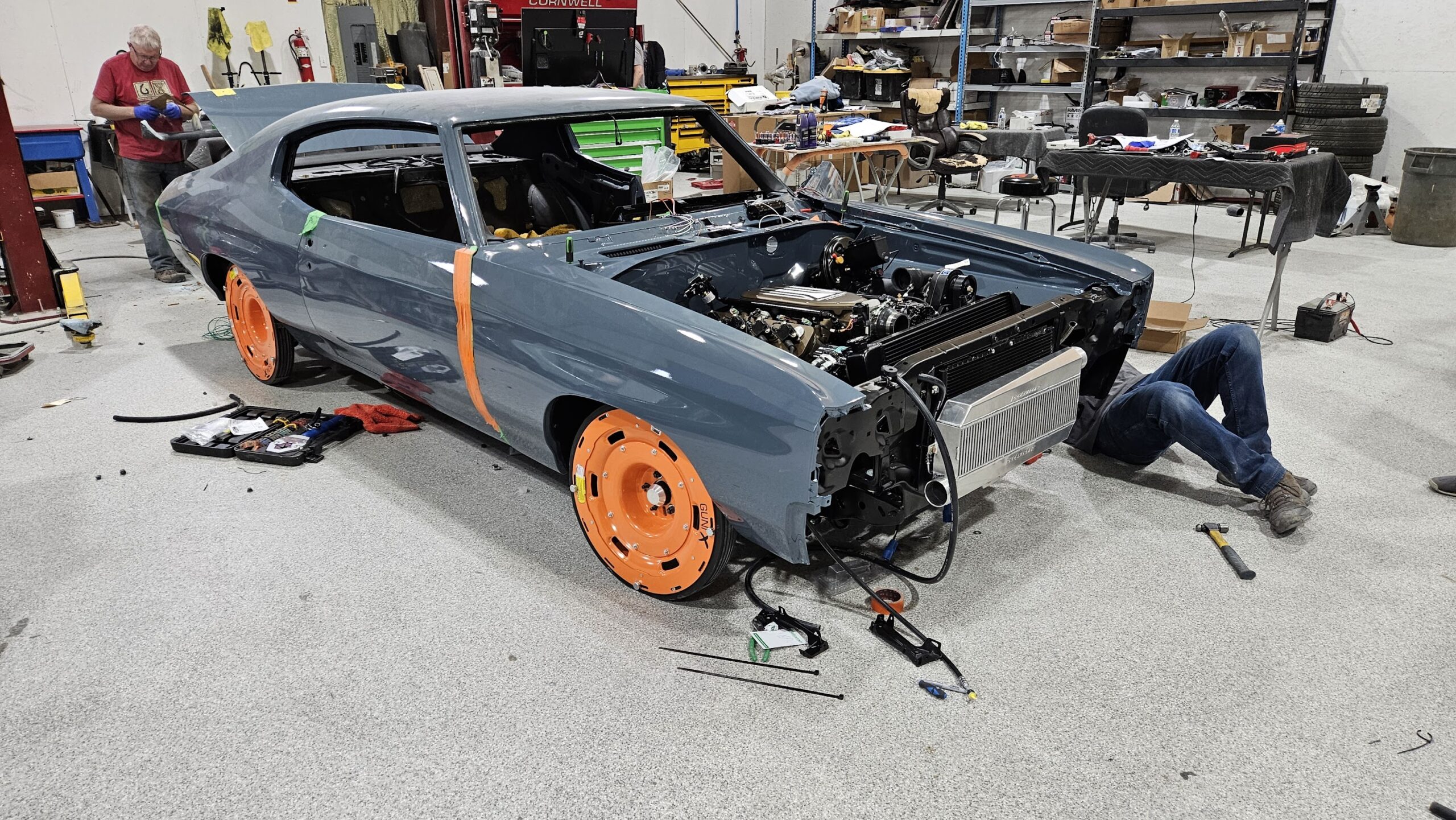

--From initial teardown to final assembly, Spencer and Sawyer have been hands on all the way through. Sawyer has mastered sand blasting, grinding and anything else he was needed for along the way. With the exception of the engine and suspension, all products were shipped to Spencer's house. With over 5o companies involved, It was critical to document, organize and keep track of a lot of parts.

Nothing to prove… Well, with more than 800hp at the crank, we added a little reminder to the speedo for the driver. MPH was replaced with NTP.

Tech Sheet

Chassis

  • Body Mounts:
    • AMD – Auto Metal Direct
  • Brackets:
  • Brake booster:
    • Summit Racing Equipment - Summit Racing™ GM-Style Brake Boosters SUM-760165, CVR Electric Diaphragm-Style Vacuum Pumps VP555, CVR Vacuum Reservoirs VPR700
  • Brakes:
    • Baer Brakes - Brake Kit - Front - SS4 12" A64-67, Rear - T4 13" AFX Body
  • Bumpers:
    • AMD – Auto Metal Direct - Rear Chrome Bumper - 990-4371
  • Coatings:

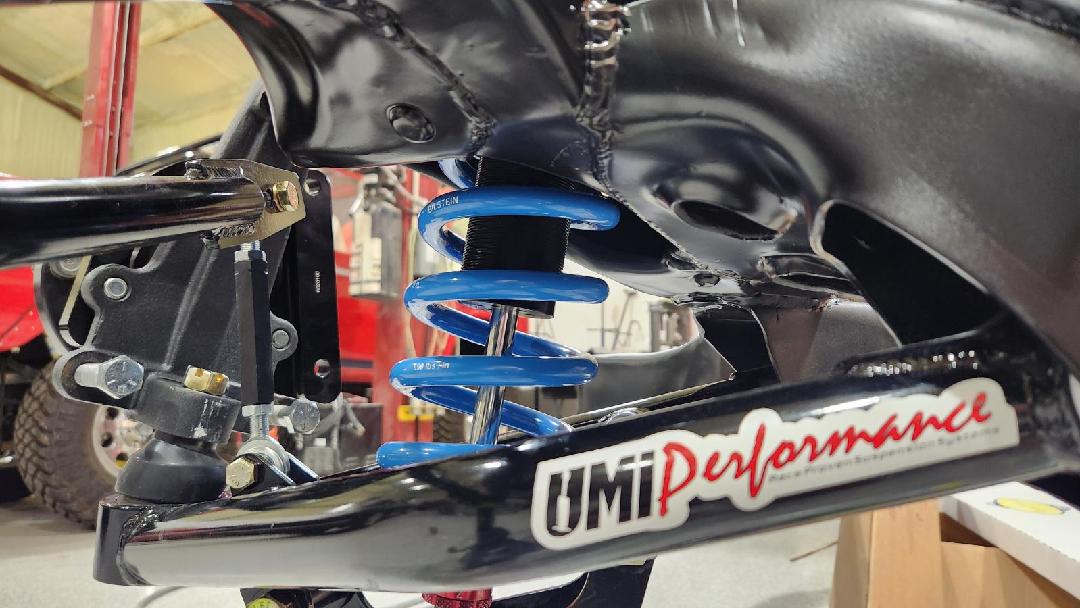

  • Coilovers:
    • BILSTEIN - Front - 33-315461
  • Control Arms:
  • E-Brake:
  • Fuel Tank:
  • Master Cylinder:
    • Baer Brakes - Master Cylinder - 6801273LP
  • Plumbing/Fittings/Hoses:
    • Summit Racing Equipment
  • Power Steering Pump:
    • Summit Racing Equipment - SUM-340106B
  • Power Steering Reservoir:
    • Summit Racing Equipment - SUM-340202B
  • Shocks:
    • BILSTEIN - Rear Shocks 24-296885
  • Steering:
  • Steering Box:
  • Suspension Kit:
  • Sway Bars:

Drivetrain

  • Adapters:
    • Quick Time - #8019E23S
  • Axle Housing:
    • General Motors - 12 Bolt
  • Axle/CV shaft:
  • Bellhousing:
    • Quick Time - Part # 8019E23S
  • Clutch Assembly:
    • Advanced Clutch Technology | ACT - Part # T2S-G01
  • Clutch Master Cyl.:
    • Advanced Clutch Technology | ACT
  • Cooling - Auxiliary:
  • Differential:
    • EATON - Detroit Truetrac- TT70P52635
  • Differential Cover:
    • Chevrolet Performance - Proform Chevy Bowtie Differential Covers 141-697
  • Driveshaft:
    • Performance Driveline Engineering - RP - 3.5" x .125" Aluminum Driveshaft 52.75"
  • Flywheel:
    • Advanced Clutch Technology | ACT
  • Locker:
    • EATON - Detroit Truetrac- TT70P52635
  • Ring/Pinion:
  • Shifter:
  • Tires:
    • MICKEY THOMPSON TIRES & WHEELS - Street Comp - Front - 255/40/19, Rear - 305/35/20
  • Transmission:

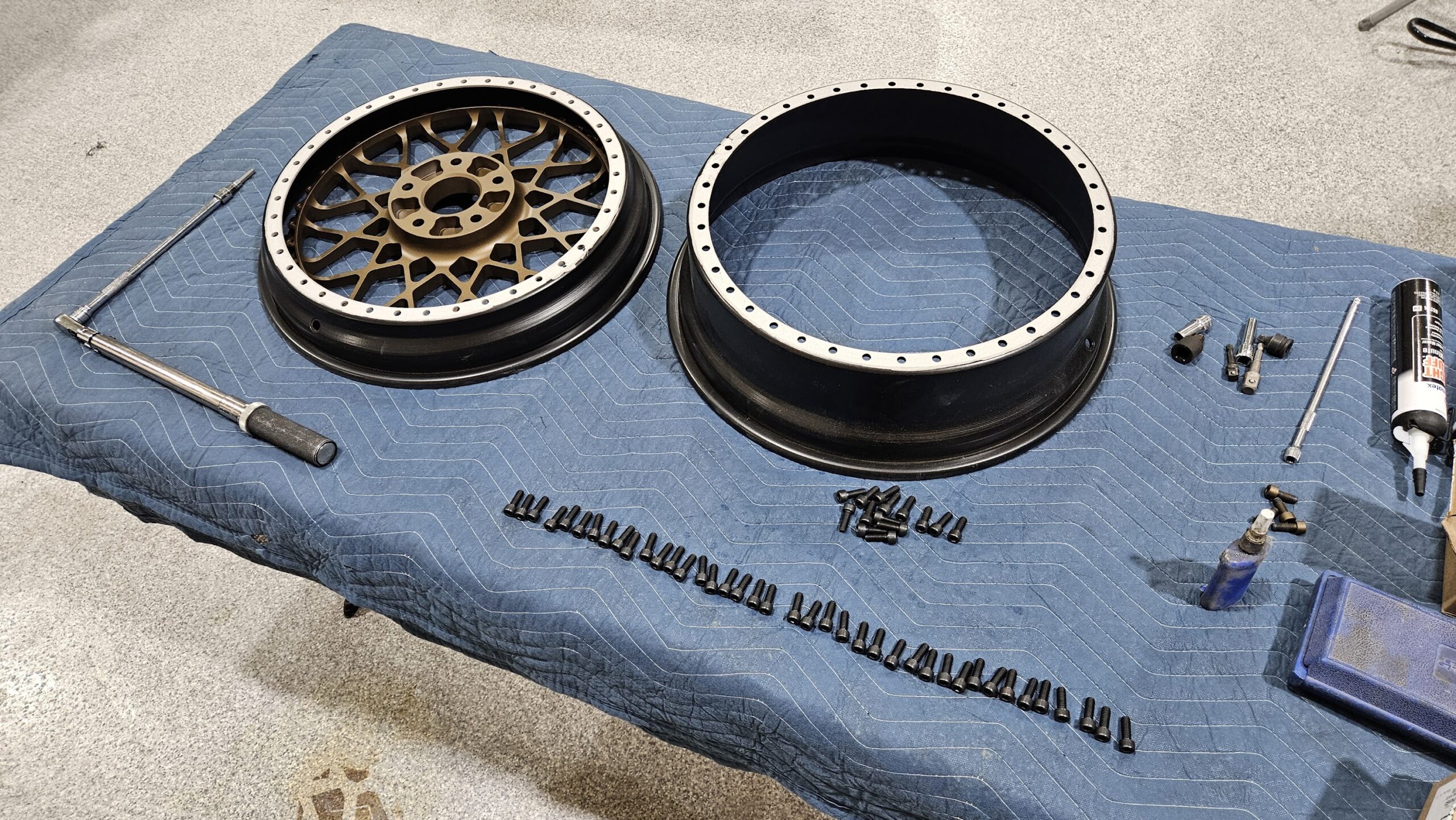

  • Wheels:

Engine

  • Power Steering Pump:
    • Summit Racing Equipment - Summit Racing™ GM Type II Power Steering Pumps SUM-340106B, Summit Racing™ Remote Mount Power Steering Pump Reservoirs SUM-340202B
  • Adapters:
    • Don Hardy Race Cars - LS3 small block Chevy valve cover adapters
  • Air Cleaner:
    • ProCharger
  • Alternator:
  • Battery:
    • Optima Batteries - Red Top BCI 34/78
  • Battery Disconnect:
    • Taylor Cable Products - PN-1033 Master Battery Disconnect Switch 4 post
  • Block:
    • BluePrint Engines - 427 Iron block
    • Summit Racing Equipment - Sum-774001 - Chevy LS Mockup Long Block
  • Blow Off Valve:
    • ProCharger
  • Brackets:
    • Holley Performance Products - Holley Mid LSA/LS Power Steering Brackets 20-165BK
  • Cooling - Radiator:
  • Crate Engine:

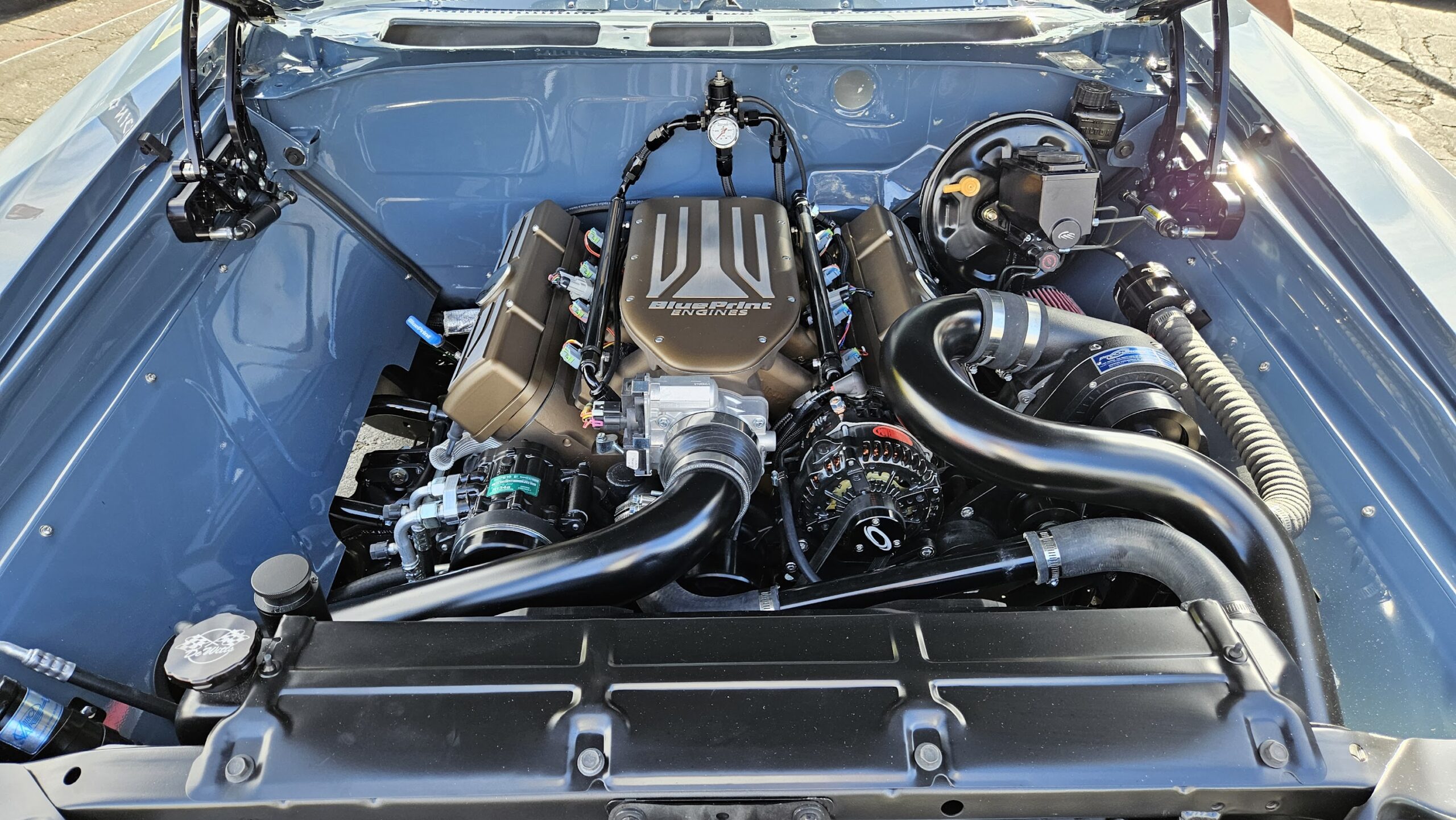

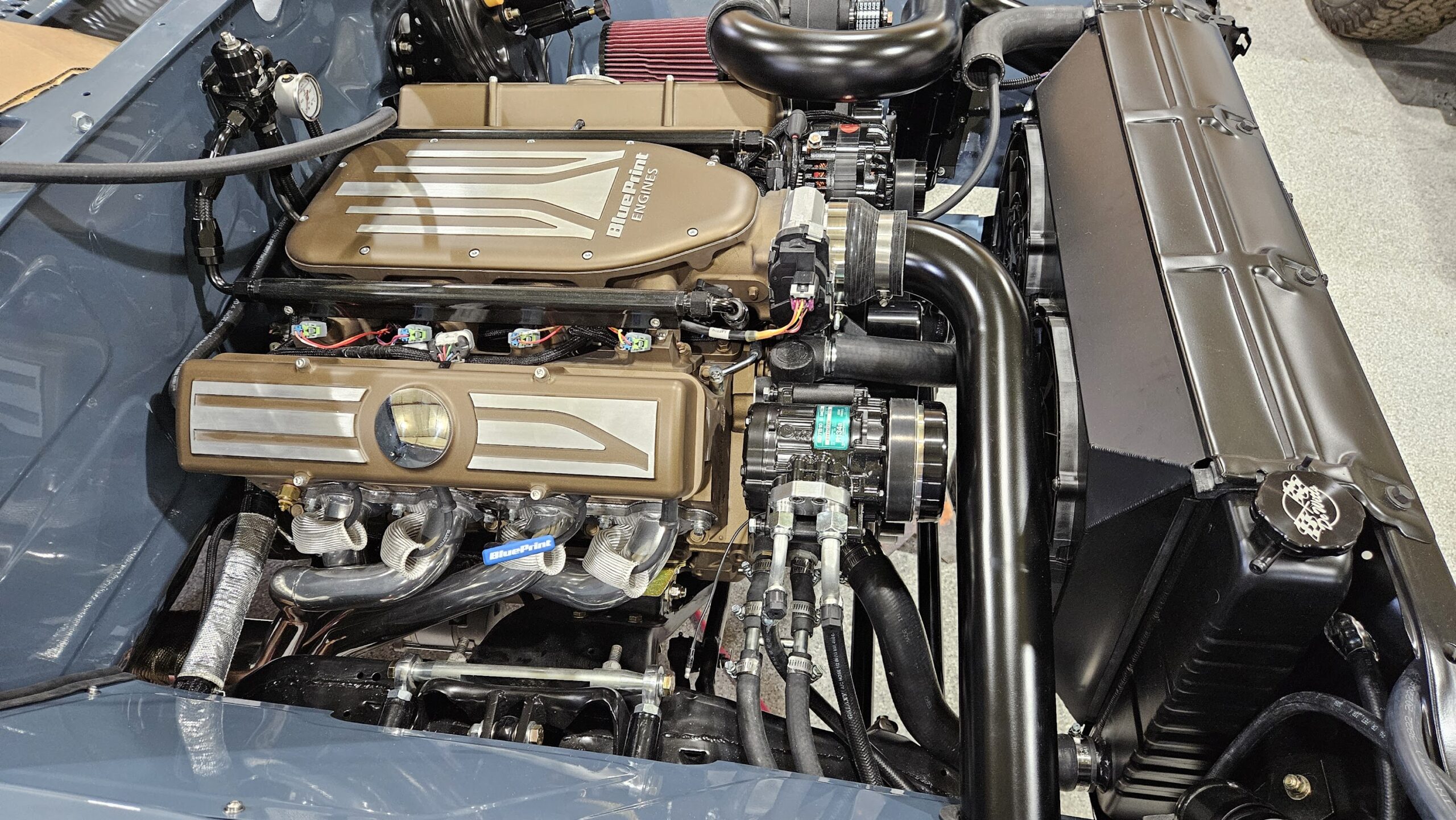

    • BluePrint Engines - LS Based 427 Iron Block (Naturally Aspirated 610 HP) - PSLS42730CT
  • Cylinder Heads:
  • ECU:
    • Holley Performance Products - Terminator X Max EFI System - 550-931
  • Exhaust Cut Outs:
    • Doug’s Headers - Patriot 3" Electrical Cutout Dual System w/ Remote PEC300K

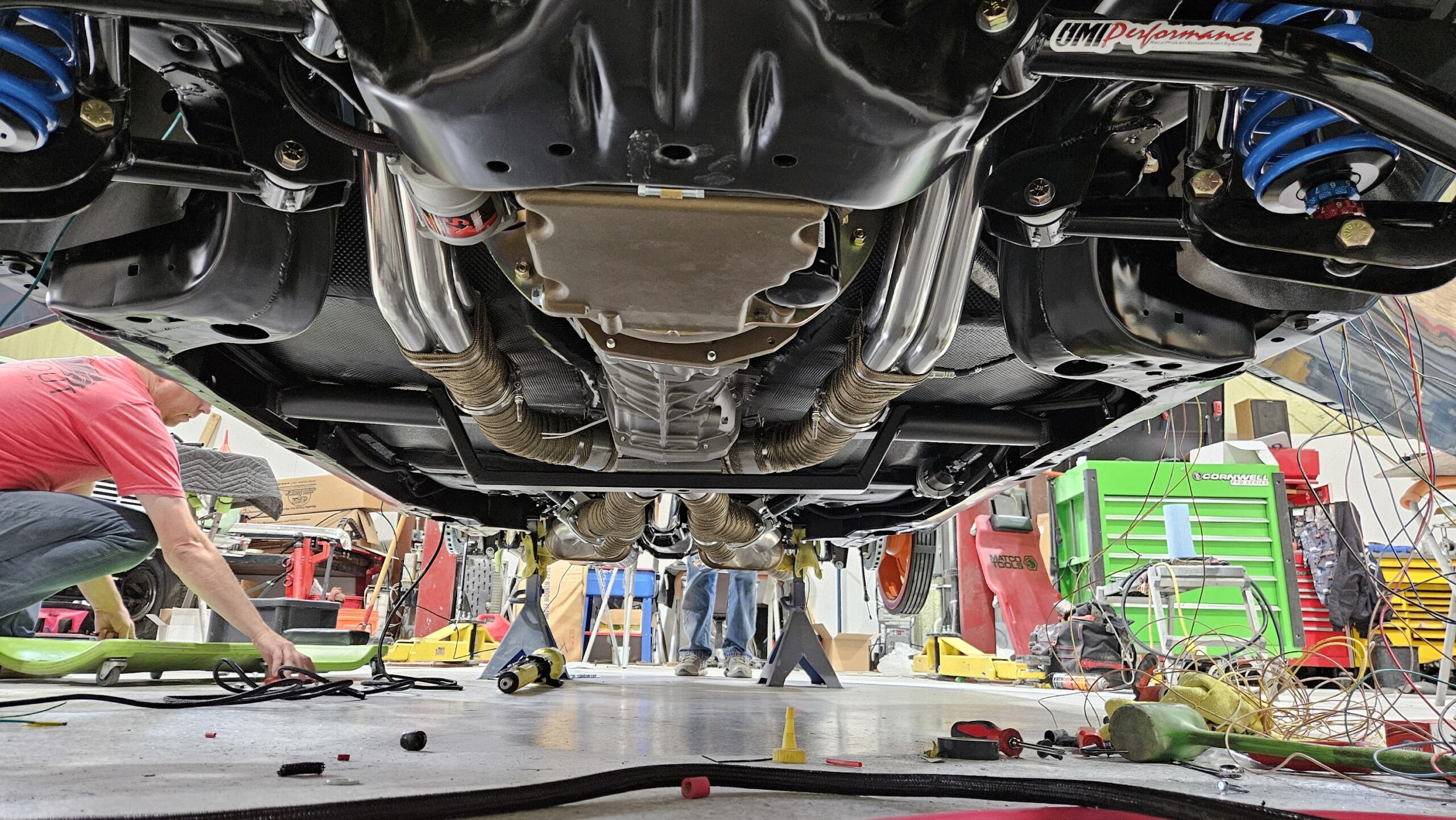

  • Exhaust Headers:
    • Doug’s Headers - GM A Body LS Long Tube Stainless Steele D3336-SS
  • Exhaust Mufflers:
    • JBA Performance Exhaust
  • Exhaust system:
    • JBA Performance Exhaust - 70 Chevelle Complete Exhaust
  • Fan Shroud:
  • Fans:
    • Spal Automotive USA - 2 Brushless System
  • Fuel Filter:
    • Aeromotive Inc. - 12339 Filter, In-LIne, Pro-Series, AN-12, 10 Micron Microglass element, 11703 Bracket, 2 ½” Pump or Filter
  • Fuel Injection:
    • Holley Performance Products
  • Fuel Lines:
    • Aeromotive Inc. - 15607 Fitting, AN-8/AN-8 Cutoff Tapered Flare, 15613 Fitting, AN-12/AN-10 Cutoff Tapered Flare Reducer, 15649 Fitting, AN-6 cutoff to AN-8 Flare, 15675 Y-Block, AN-10 - 2x AN-08
  • Fuel Management:
    • Holley Performance Products
  • Fuel Pump:
    • Aeromotive Inc. - 18309 Fuel Pump, Universal, Dual Phantom, 340, 6-10” Depth, • 181-0204-0 Tank, Fuel, GM34G 70-72 Chevelle & Malibu, 70 Monte Carlo
  • Fuel Regulator:
    • Aeromotive Inc. - 13305 Regulator, Adjustable, 35-75 PSI, .313 Valve, (2)-08 inlets, -08 return
  • Heat Barrier:
    • Design Engineering, Inc. | DEI - Heat Shroud™ - 0.5 - 1.25" x 36", Black Floor & Tunnel Shield II™ - 42" x 48", D-Mat™ 12mm - 60" x 70", Titanium™ Exhaust Wrap - 2" x 50', Cool Tape™ - Heat Reflective Tape 2" x 30', Titanium Protect-A-Boot™ XL Ringless - 8" 8-Pack
  • Ignition:
    • Holley Performance Products
  • Injectors:
    • Holley Performance Products - Holley Terminator X Fuel Injectors- 522-768XFM
  • Intercooler:

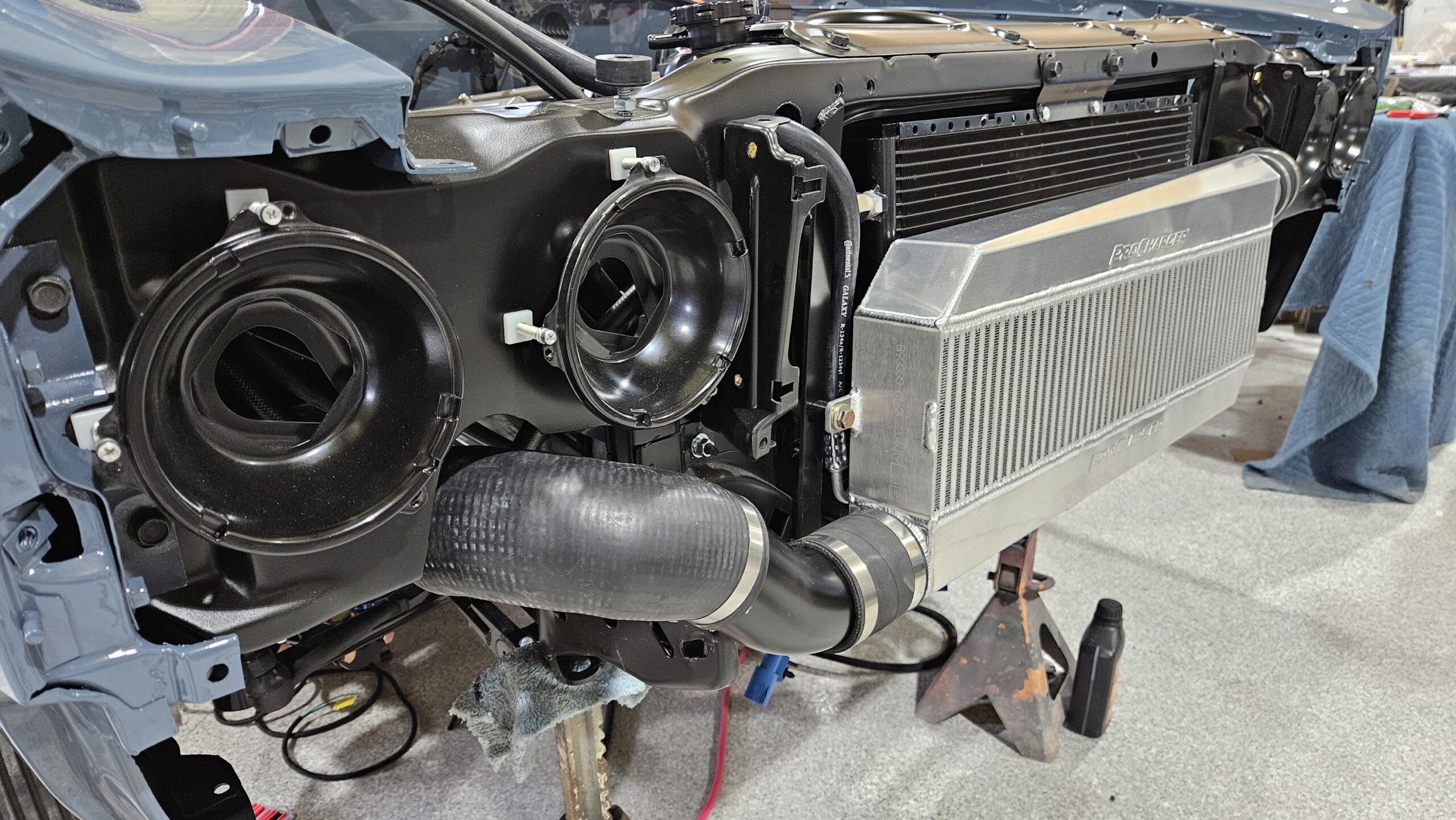

    • ProCharger - AI003A-001
  • Lubricants:
    • Summit Racing Equipment - Summit Racing™ ZDDP Performance Motor Oil SUM-1-5W30
  • Misc.:
    • Summit Racing Equipment - Power Steering Pump #SUM-340106B, Power Steering Pump Reservoirs #SUM-340202B, Summit Racing™ Mockup Replica Blocks SUM-774001
  • Motor Mounts:
    • Energy Suspension - LS3 Small Block
  • Overflow Tank:
    • Summit Racing Equipment
  • Spark Plug Wires:
    • Taylor Cable Products - 8mm Spiro Pro LS 8 cyl 9.5 in 180 Black Ceramic - 75044-B
  • Starter:
  • Super Charger:
    • ProCharger - Complete Kit for LS Based 427 - MODEL# P-1XG SUPERCHARGER, AF056I-001 AIR FILTER, ME001G-001 SC OIL PACK (3 BOTTLES), ATS48I-006 0792-3” OUTLET W/ 1.5 SURGE, 3LSPS-005B LS ACCESSORY DRIVE P/S BAG - BLACK, 3LSDR-005 LS ACCESSORY PULLEY-INNOVATORS, AB038A-043 LS ACCESSORY DRIVE WATER PUMP - BLACK, DB360I-004 BELT/4 RIB, DB680I-006 BELT/6 RIB, DB710I-008 BELT/8 RIB, 3LSAD-001 LSX AIR DISCHARGE BAG (PRO FLOW), 3LSAC-001B LS ACCESSORY DRIVE AC BRACKET BAG, 3FXSS-005 OPEN BULLET VALVE SURGE BAG, 3GKMM-004 97-03 LS1B-CRANK KEY BAG, 3LSBB-016B LSACC DRIVE MAIN BRACKET BAG 8 RIB HIGH MOUNT - BLACK, 3LSDR-003 ACCESSORY DRIVE W/P PULLEY BAG, 3LSMM-001 LSX PCV BAG, 4175EC COOLANT HOSE, BAG OF 3” HOSE CLAMPS (18), ME001A-001 SC OIL BOTTLE (6 OZ-FILLED), AI003A-001 INTERCOOLER-UNIVERSAL 3C - OPP SID
  • Tuning:
    • Holley Performance Products
  • Valve Covers:
  • Wiring Harness - Engine:
    • Holley Performance Products - 558-406 GM DBW HARNESS

Exterior

  • Aero:
    • Spoilers By Randy - Front Spoiler
  • Body Panels:
    • AMD – Auto Metal Direct - Master Body Hardware Kit (408pcs) - 70 Chevelle Part# H-70AB, 300-3470-1 Hood (1) 200-3470-L Front Left Fender (1) 200-3470-R Front Right Fender (1) 960-3470 Rear Valence (1) 700-3470-L Rear Quarter Panel (1) 700-3470-R Rear Quarter Panel (1) 850-3468 Trunk, Outer Wheelhouse - LH - 70-72 Chevelle Part# X770-3470-L, Outer Wheelhouse - RH - 70-72 Chevelle Part# X770-3470-R, Fender Extension / Headlight Surround - LH - 70 Chevelle Part# 210-3470-L, 210-3470-R, Radiator Support Tie Bar - 70-72 Chevelle El Camino Part# 151-3470, Grille Support Bracket Set (3pcs) - 70 Chevelle El Camino Part# 152-3470-S, Hood Latch Assembly - 70-72 Chevelle El Camino Sprint Monte Carlo Part# 303-3470, Body & Radiator Support Bushing Set w/ Hardware - 68-72 Chevelle Cutlass Convertible Part# P-SB517K, Gas Tank Straps - LH/RH Pair - 68-72 Chevelle GTO Skylark Cutlass Part# X880-3468-P
  • Bumpers:
    • AMD – Auto Metal Direct - 71-72 Rear Chrome Bumper 990-3471, Grille to Bumper Filler Panel - 70 Chevelle El Camino; 70-72 Monte Carlo Part# 115-3470
  • Car Care Products:

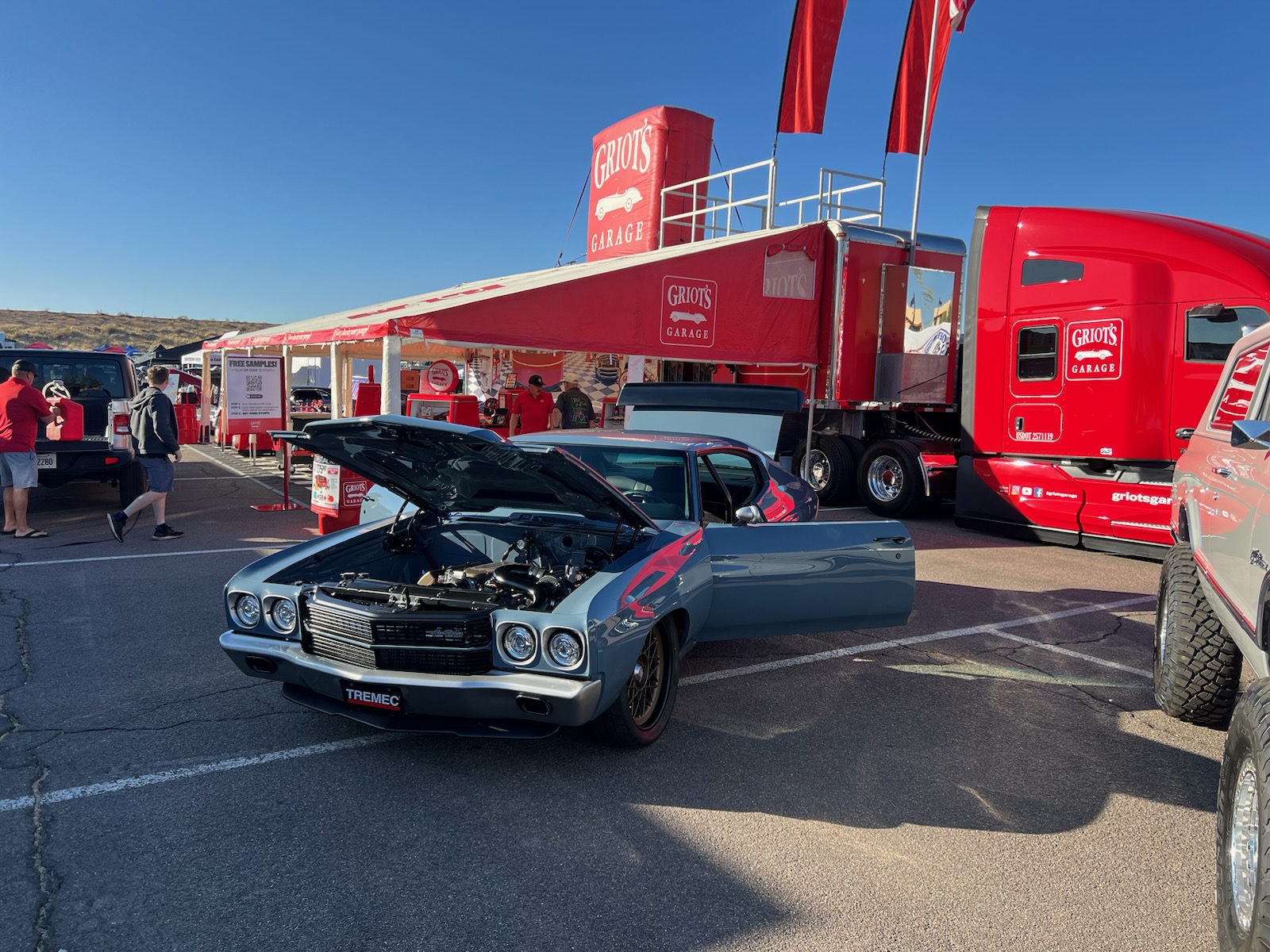

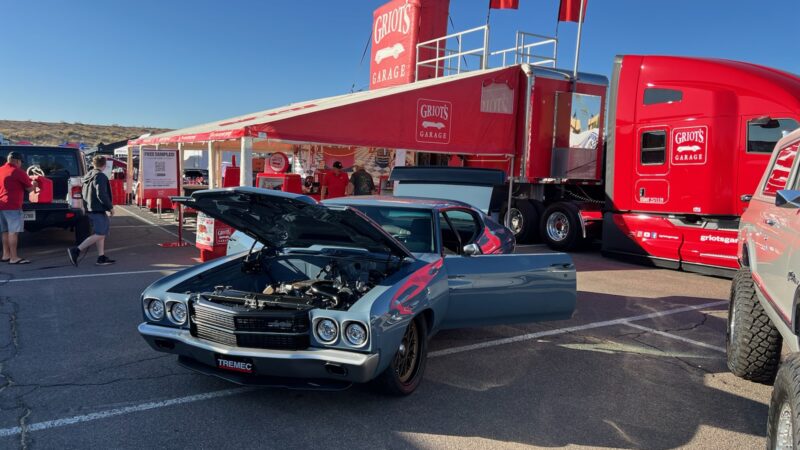

    • Griot’s Garage Inc. - G8 - Mini Random Orbital Polisher, G15 - Long-Throw Orbital Polisher, Microfiber Plush Edgeless Towel, PFM Crinkle Glass Towels, Blue Detail Sponge, 3" Perfecting Pads, 5" Microfiber Pads, 5" Correcting Pads, 5" Perfecting Pads
  • Grille:
    • AMD – Auto Metal Direct - Grille - SS Style Black - 70 Chevelle El Camino Part# 150-3470
  • Headlights:
  • Hinges - Hood:
    • Ringbrothers - 1052BS - Hood Hinges
  • Hood:
    • AMD – Auto Metal Direct - 300-3470-1 - SS Style Cowl Hood
  • Hood Latch:
    • AMD – Auto Metal Direct - Hood Release Assembly (1) AMD-303-3470
  • Mirrors:
  • Paint & Primers:
    • BASF Automotive Refinish - Glasurit 923-210-Clear, 923-230 Low VOC All Purpose Cleaner, 929-245 All Purpose Hardener, 929-120 Low VOC Hardener - Medium, 285-20 Low VOC DTM Primer White, 285-10 Low VOC DTM Primer Black, 801-76 Elite Epoxy Primer White, 801-74 Elite Epoxy Primer Black, 934-72 White Ad-Pro Sealer, 934-71 Black Ad-Pro Sealer, 352-45 Slow Exempt Reducer, 352-91 Normal Reducer, 965-63 Elite Epoxy Primer Activator, P-V-67 Sprayable Body Filler, 93-E3S Slow Adjusting Base
  • Rust Prevention:
  • Tail Lights:
    • United Pacific - 1 set of 111119 (tail light lens), 1 set of CBL7201 (tail light w/ backup lens)
  • Weather Stripping:
    • Steele Rubber Products - 90-3321-90 Body Weatherstrip Kit, 50-0344-80 Weatherstrip, Vertical Leading Edge 70-0774-84 Weatherstrip, Trunk 82-0063-72 Weatherstrip, Front Door 82-0064-79 Lock Pillar Filler 82-0067-43 Weatherstrip, Hood to Cowl 82-0072-68 Weatherstrip, Roof Rail 80-0450-57 Window Felt Beltline Weatherstrips - Original
  • Windows:
    • AMD – Auto Metal Direct - (1) 550-3470-8TR Door Glass, (1) 550-3470-8TL Door Glass, 380-3470-T Windshield w/ Antenna, (1) 660-3468-T Rear Glass, (1) 795-3470-TL Left Rear Quarter Glass, (1) 795-3470-TR Right Rear Quarter Glass
  • Wrap/Graphics:
    • 5 0’Clock Garage

Interior

  • Amplifier:
    • MB Quart - Hifonics HCM-800.4D, Hifonics HCM-1500.1D
  • Carpeting:
    • Auto Custom Carpets, Inc. - 1001A - '68-'72 Chevelle Carpet Kit
  • Dash:
    • Classic Dash - Dash insert
    • Summit Racing Equipment - RESTOPARTS® Manufactured Glove Box Doors CH22081, PYCL Vega-Astre Locks Glove Box Lock Cylinder Sets PY120
  • Door Handles:
  • Floor Mats:
    • Auto Custom Carpets, Inc.
  • Gauges:
    • Classic Instruments - Moal Bomber Series 3 3/8" Speedo, Tach, 2 1/8" Fuel, Oil, Temp, Volt with Black Low Step Bezel Flat Glass Lens Bomber Trim Rings Included
  • Harnesses/Belts:
    • Simpson Performance Products - 2) 29024BK Simpson Rear Seat Belts (2) 29110BK Simpson Front 5-point Harnesses
  • Head Unit:
    • Alpine Electronics
  • Heat & AC:
    • Vintage Air - Gen IV/ 5 ProLine Elipse in black anodized color 564285 - Evap Kit 70-72 Chevelle/Monte Carlo w/ A/C Gen 491241 - GEN IV & 5 PROLINE ELLIPSE PANEL BLK ANOD KIT 524469 - RB HOSE KIT 70-72 CHEVELLE 134a MOD 021174 - COND w/ DRIER 70-72 CHEVELLE/MONTO CARLO 04670-MTA - COMP 6.1cid 134A M-GRV 045003 - 7B10 COMPRESSOR BLOCK KIT
  • Misc.:
    • IDIDIT, LLC. - 26000680100 - Push button start
    • Summit Racing Equipment - GMK4033551170A - Glove Box Catcher
  • Pedal Assembly:
  • Power Windows:
    • AMD – Auto Metal Direct - Front Door Window Regulator - Manual - RH - 70-72 GM A-Body 2DR Coupe & Convertible Part# X545-3470-R, Front Door Window Regulator - Manual - LH - 70-72 GM A-Body 2DR Coupe & Convertible Part# X545-3470-L
  • Rust Prevention:
  • Seam Sealer:
  • Seats:

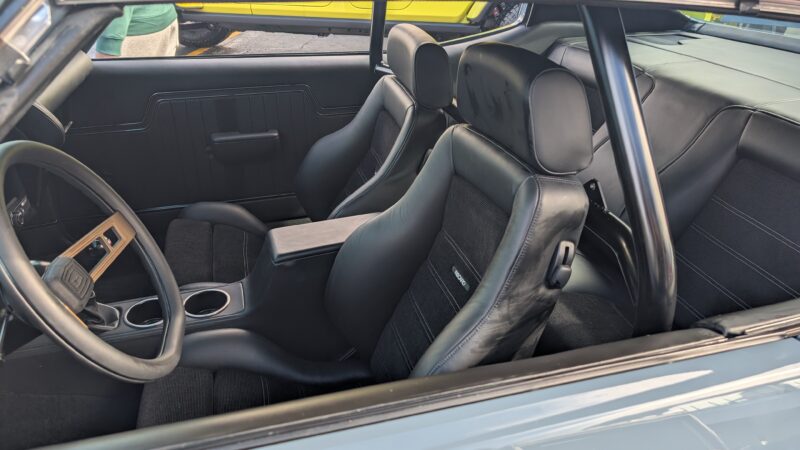

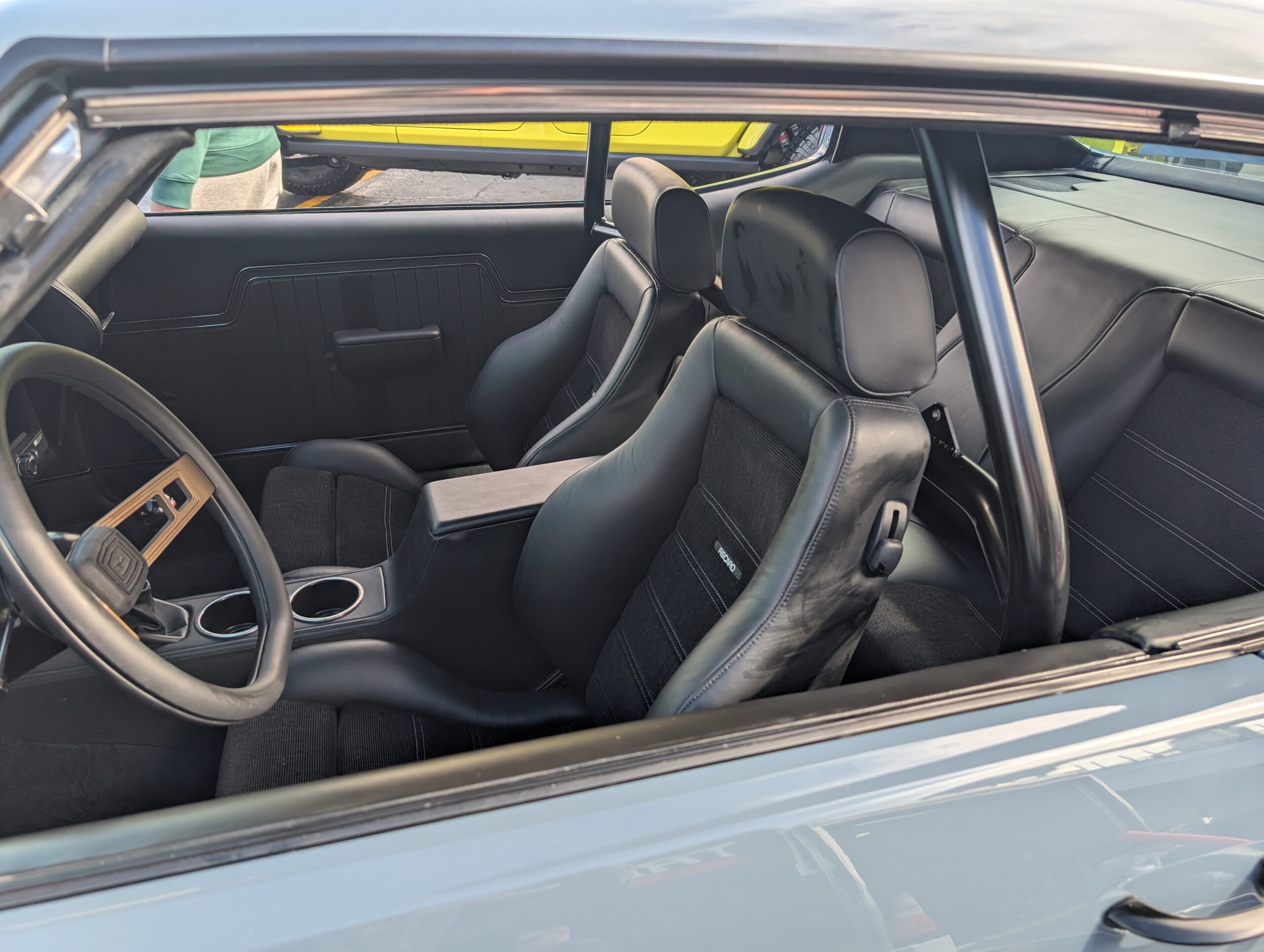

    • RECARO - Recaro Classic front seats
  • Shift Knob:
  • Sound Dampening:
    • Boom Mat - Boom Mat Damping Material - 12.5" x 24" 30 Sheets, Boom Mat Damping Material - 12.5" x 24" 10 Sheets
  • Speakers:
    • MB Quart - 1 – MB Quart PS1-216, 1 – MB Quart PK1-169
  • Steering Column:
  • Steering Wheel:
  • Trim:
    • Clayton Machine Works - EXT-4 - Aluminum Exterior Trim FIN 4” EXT-6 - Aluminum Exterior Trim FIN 6” AEG-4 - Aluminum Interior Trim Grooved 4”
  • Upholstery:
  • Wiring:
    • Ron Francis Wiring - Wiring kit for 1970 Chevelle - AE - Alternator Wiring, C - Ignition/Neutral Safety Switch Wiring, D4 - Dash Gauge Wiring, E - Turn Signal/Brake Light & Horn, EXPRESS PANEL - Express Fuse Panel, F - Head Lt Sw/Head Lts/Tail Lts/Parking Lts/Dash Lt Wiring, GEN INSTALL INST - General Installation Instructions HEAD LT SWITCH - Head Light Switch w/ Accent Rings, JB-2 - Multi-Connection Junction Block

Equipment & Supplies

  • Car Cover:
    • Covercraft
  • Polisher:
    • Griot’s Garage Inc. - G8 - Mini Random Orbital Polisher, G15 - Long-Throw Orbital Polisher
  • Shop wheels:
    • GUNIWHEEL
  • Spray Equipment:
    • SATA by Dan-AM Co.
  • Tie Downs:
    • Mac’s Tie Downs - (2) 472106 Rear Axle Weld-on Tab, (2) 472116 Front Weld-on Flat Brackets, (1) 512270 Set of Tie-Down Straps, 40’ of Steel E-track for the trailer

Services

  • Design:

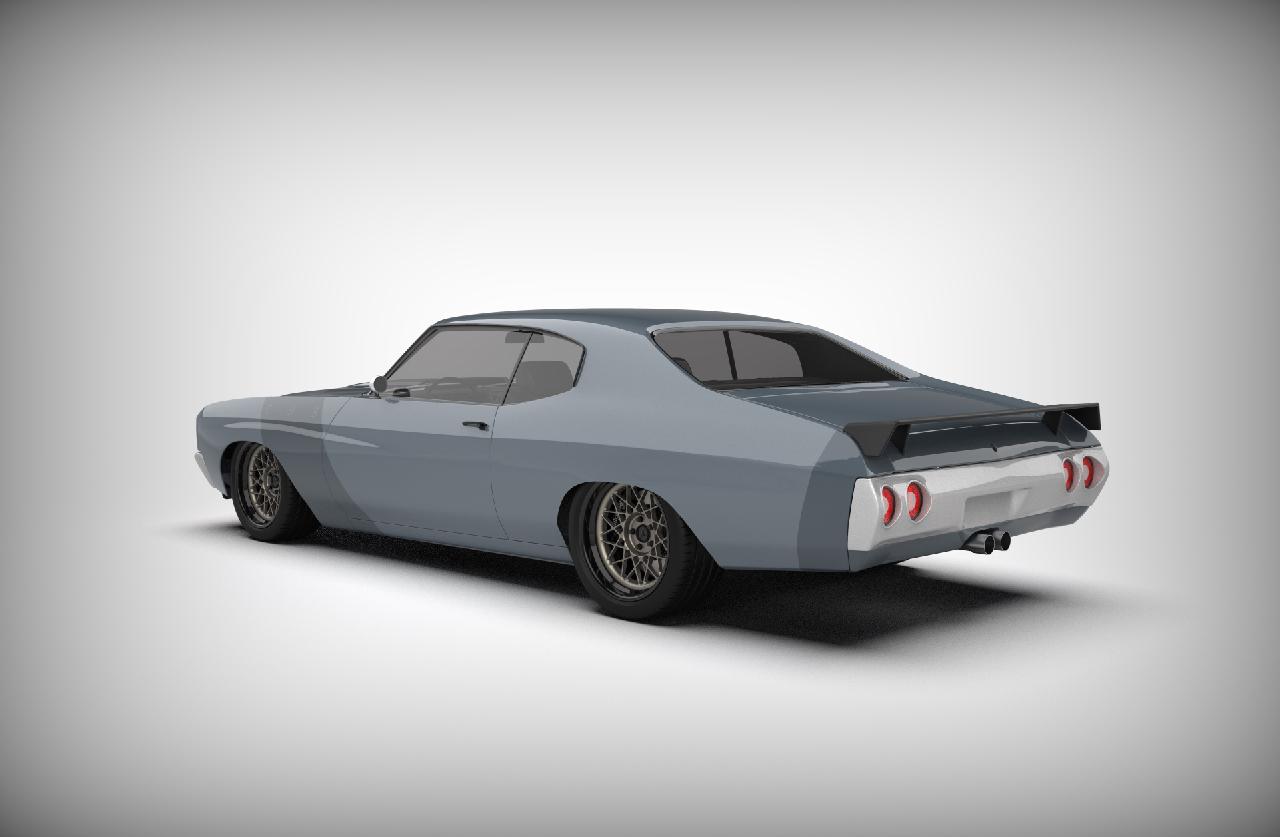

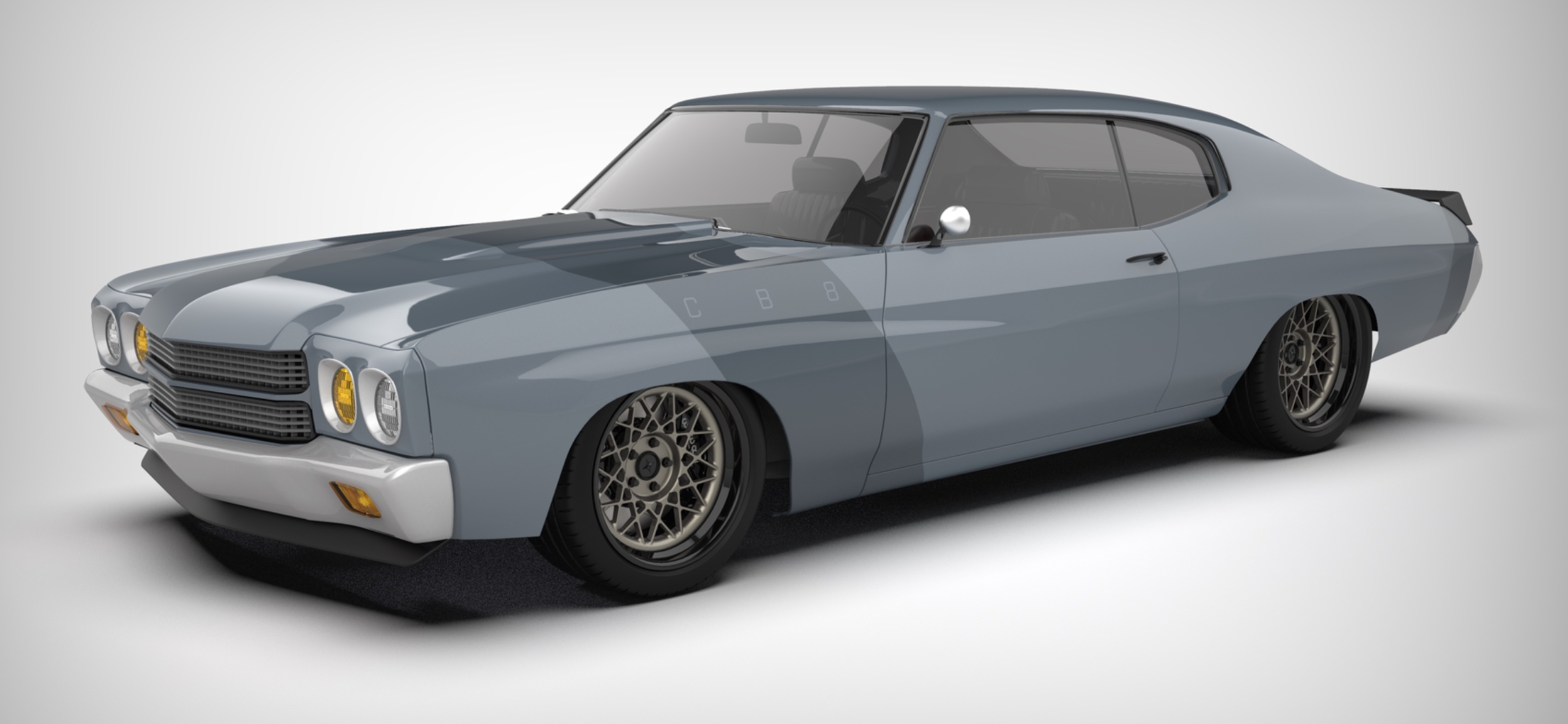

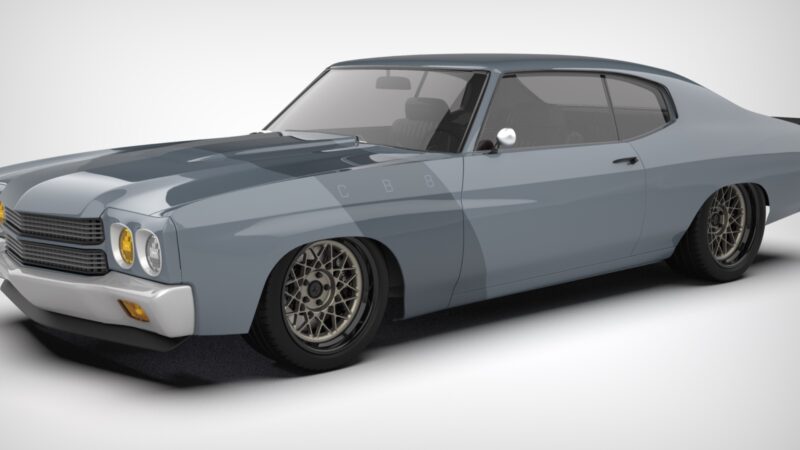

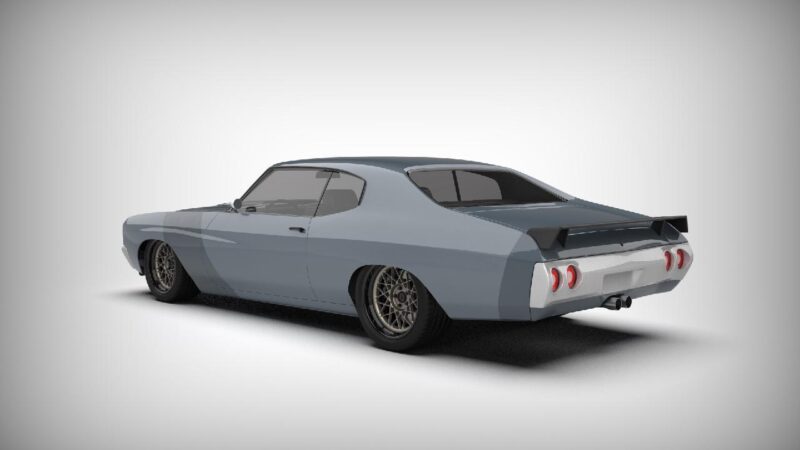

    • Dom Tucci Design - Renderings and design guidance
  • Media:
    • All Chevy Performance

Shops

  • Paint & Bodywork:
    • Resurgence Automotive
  • Project Manager:
    • Resurgence Automotive
  • Sheet Metal Fab:
    • Resurgence Automotive
  • Upholstery:
